Cardboard box folding machine WG8F8

Purpose

The automatic cardboard box folding machine KDT WG8F8 is used for folding and gluing cardboard boxes. The machine from FEFCO 0410 box blanks automatically forms the base (bottom) of the box, after which the box is completely ready for placing products in it. The operator indicates the size of the future box on the monitor of the control panel , after which the machine automatically adjusts its components and assemblies to the specified parameters. Box blanks up to 500 mm high are installed in the automatic feeding device. The automatic feeding device has a belt conveyor with a vacuum gripper , which guarantees the feeding into the working area of one sheet of cardboard. All valves of the box base are folded and glued automatically. The machine produces boxes completely ready for further loading and gluing in the KDT WG8V6 box gluing machine. The WG8F8 box forming machine is suitable for mass production and custom furniture production, and can be used as a stand-alone machine or as part of a packaging line.

Main features

• Ideal for both serial and individual production.
• The machine can be operated both separately and as part of a packaging line.
• High productivity of the machine – 5-7 packages per minute.
• Saving up to 40% on corrugated cardboard by using FEFCO 0410 type boxes.
• Up to 85% cost savings and consistently high packaging quality thanks to the use of hot melt adhesive (compared to packaging tape).
• Automatic application of hot melt adhesive.
• Adhesive unit provides temperature control.
• Simple machine control system.
• Editing the overall dimensions of the box.
• Automatic feeding of box blanks from a pack.

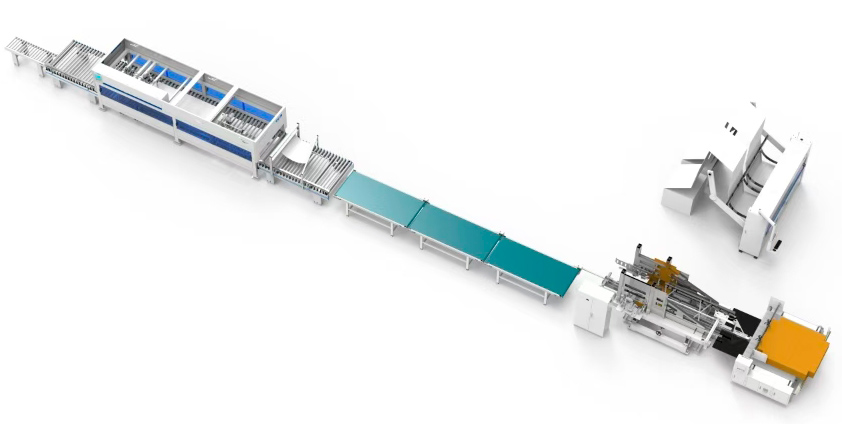

Line example
