Sliding table saw KS-132C

Purpose

Sliding table saw KS-132C with an inclination of the saw unit is designed for fine cutting of sheet material (LDSTP, MDF, plywood, glued solid wood panels, plastics, etc.) into blanks according to specified dimensions. It is recommended for enterprises producing furniture and joinery, it is allowed to use it in multi-shift operation.

Main features

• Roller carriage - guarantees the highest quality of cutting, no backlash when moving the carriage, smoothness and ease of movement for the entire life of the machine.
• The large metal consumption of the saw unit significantly increases the durability of the units, since there is practically no vibration on them;
• Powerful saw carriage, made of aluminum multi-cellular profile with a working part width of 430 mm;

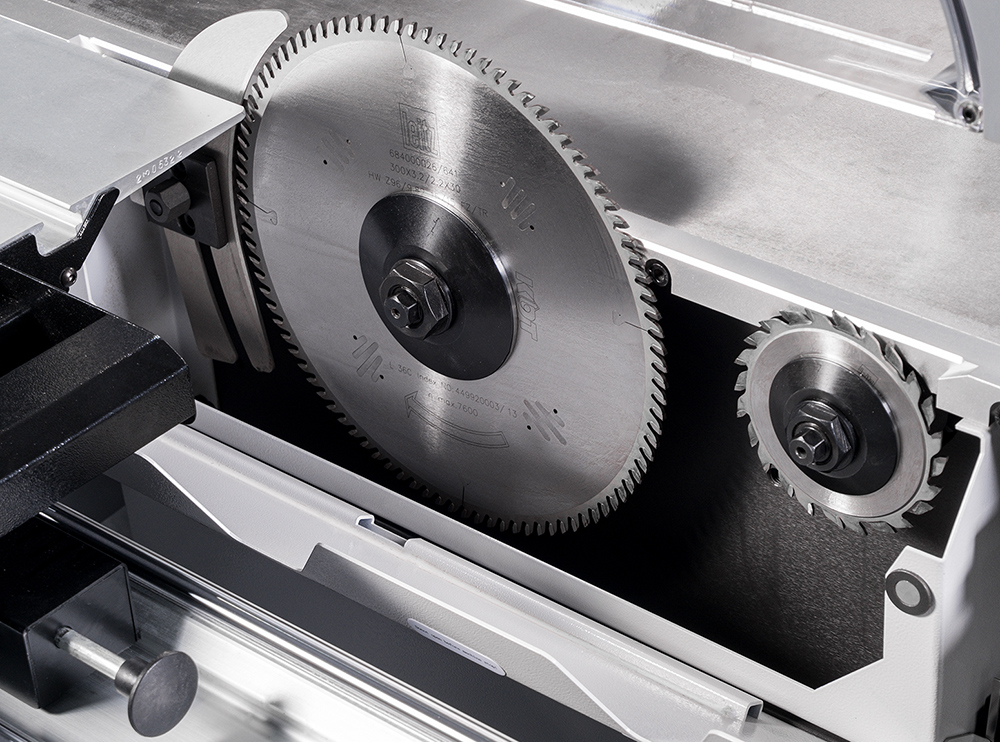

• Own electric motors for the scoring and main saw 1.1 / 5.5 kW, allow the machine to be used in multi-shift operation and dissolve various materials;
• Electric lifting and lowering of the main saw blade;
• The transparent CE aspiration protective cover for saw blades allows you to visually control the sawing process, as well as effectively remove sawdust from the cutting zone.
• Digital counters are installed on the transverse and longitudinal stops.

Engineering advantages

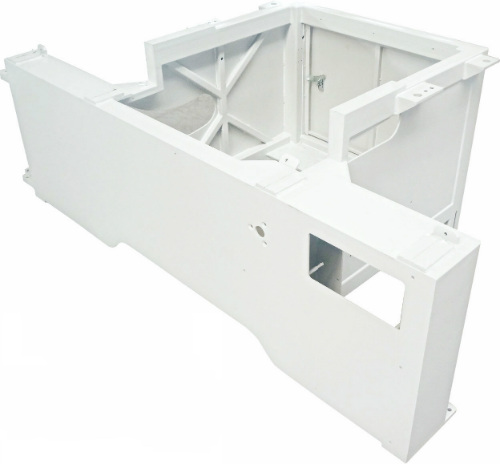

The machine bed was developed taking into account CAD programs, where the maximum allowable loads and requirements for the machine design were calculated and simulated. The welded frame is tempered to relieve all internal stresses in the material, then processing takes place on a five-axis metalworking machine, where all platforms and holes for mounting components and assemblies are milled.

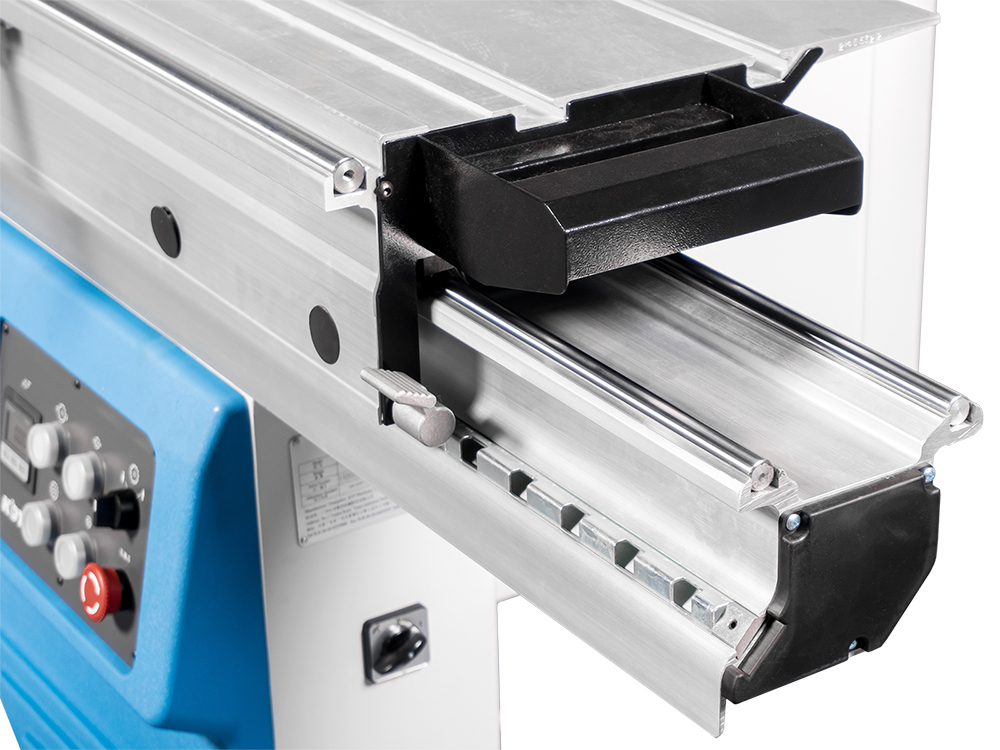

Roller carriage - guarantees the highest quality of cutting, no backlash when moving the carriage, smoothness and ease of movement for the entire life of the machine.

The large metal consumption of the saw unit significantly increases the durability of the units, since there is practically no vibration on them.

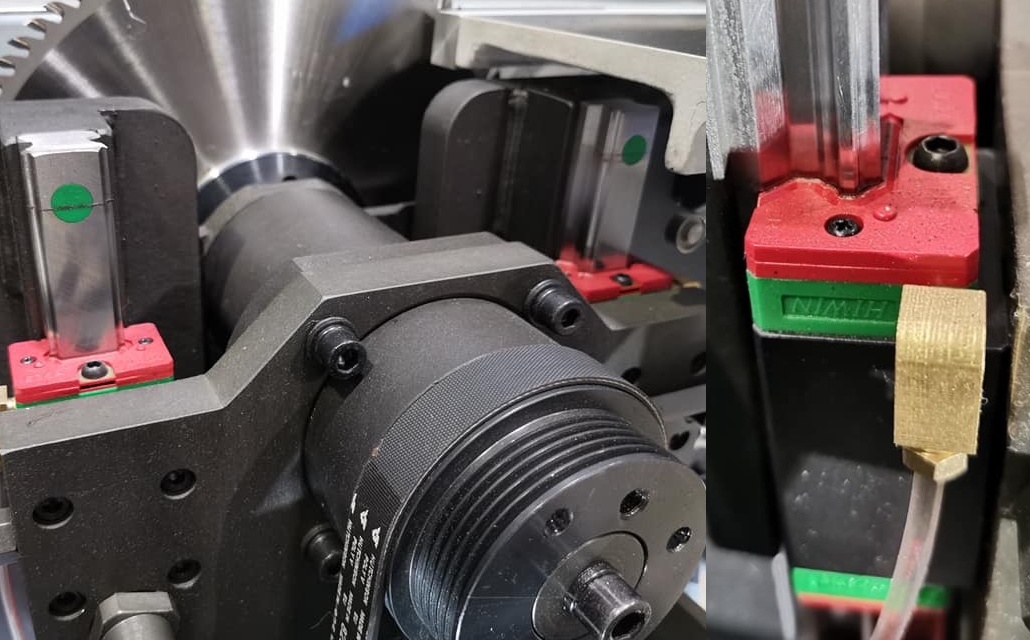

Linear bearings and guides from the Taiwanese company HIWIN.

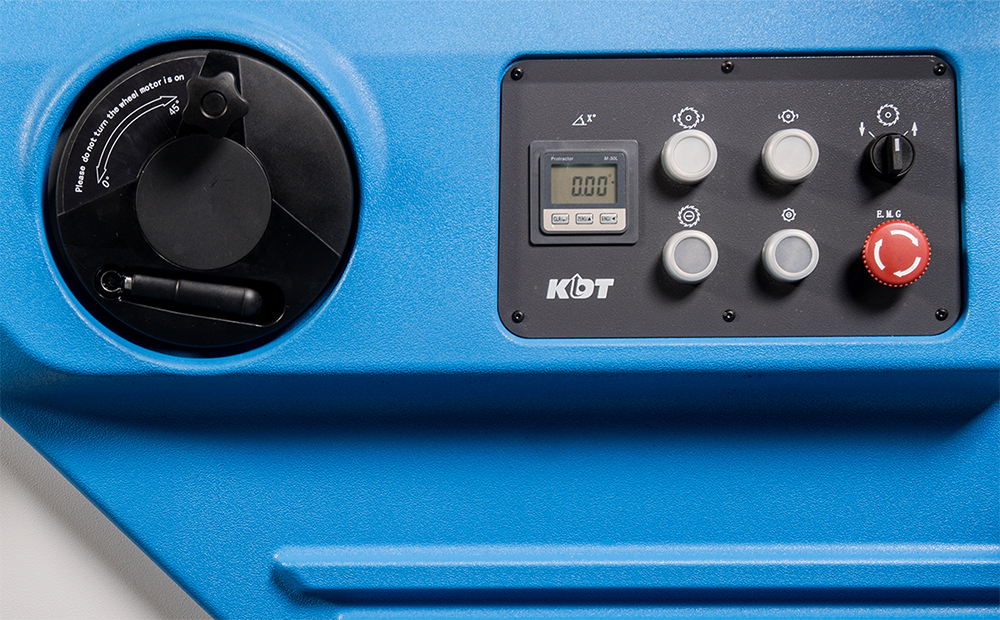

Machine control panel with electric lifting and lowering of the main saw. Provides quick saw unit settings.

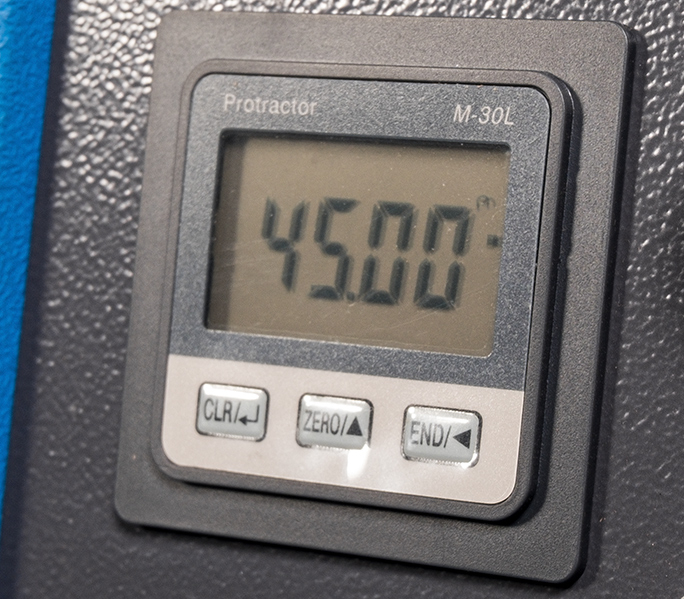

The angle of inclination of the saw unit 0-45° is set using a digital display, which ensures high positioning accuracy.

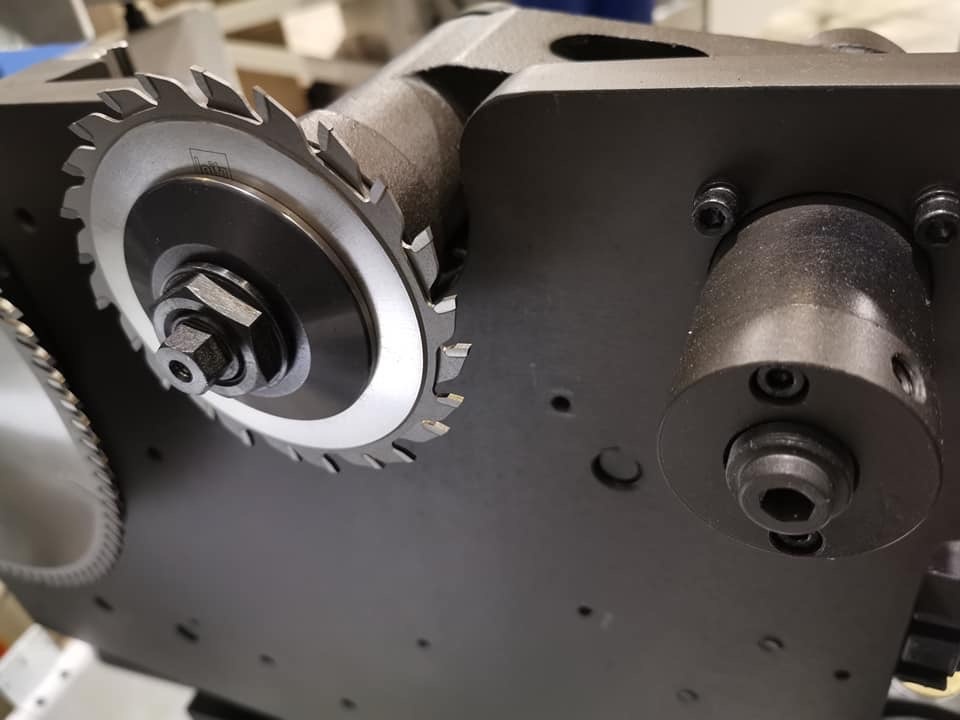

Horizontal adjustment knob for the scoring saw.

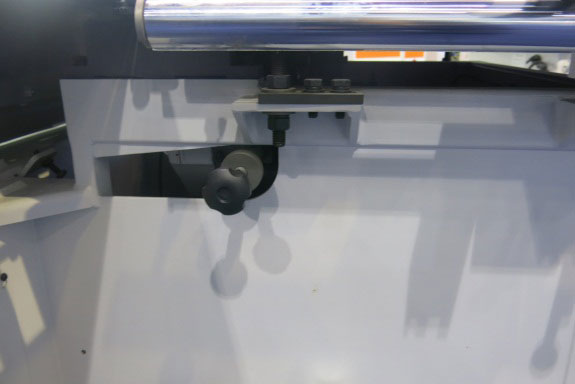

The convenient handle of adjustment of a scoring saw on height, allows to carry out fast adjustment of knot.

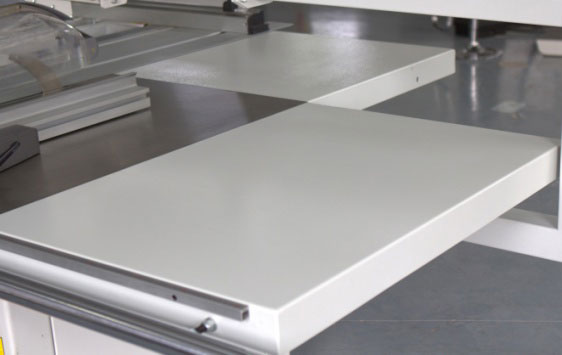

Full-format additional tables allow you to open sheets of various sizes.

The transverse stop (ruler) is equipped with two folding stops-flags, one of which has an electronic digital display for quick and precise adjustment to the required size.

If required, the crosscut fence can be rotated from 0 – 45° for miter cuts.

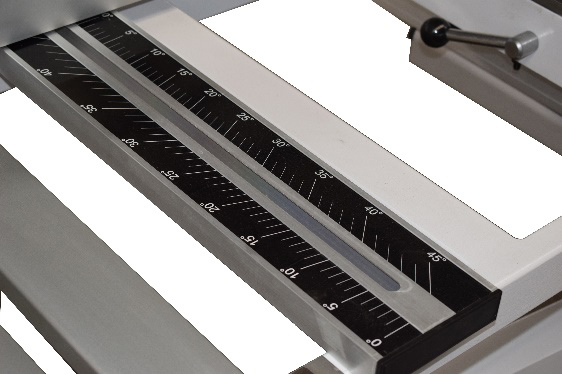

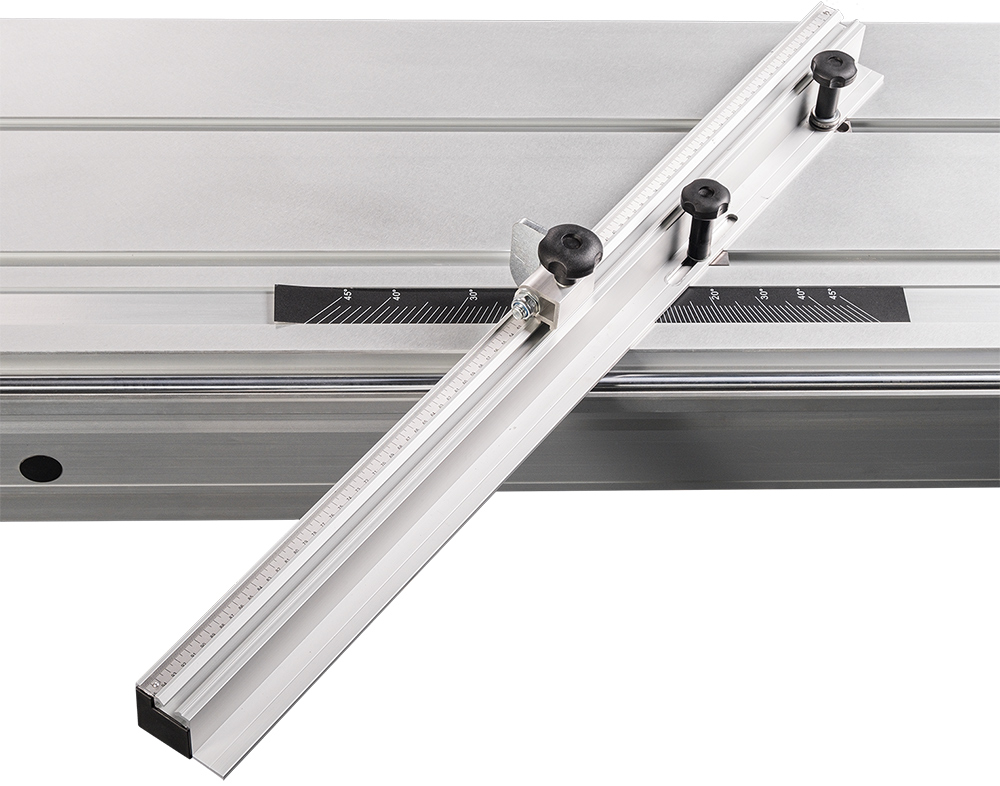

Angle ruler on the saw carriage for angled cuts.

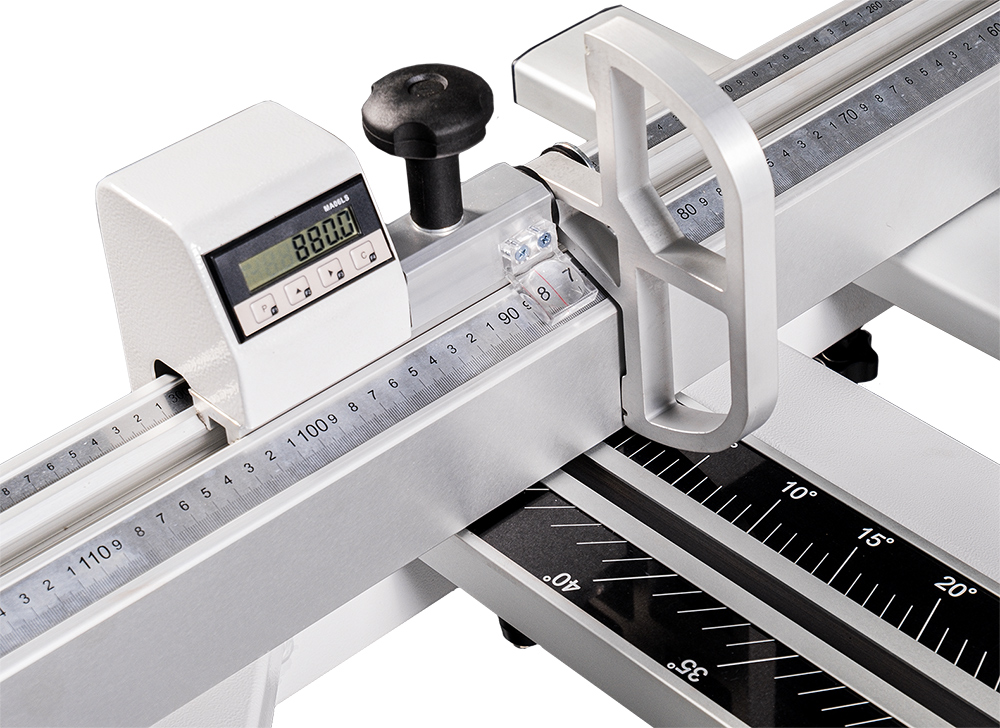

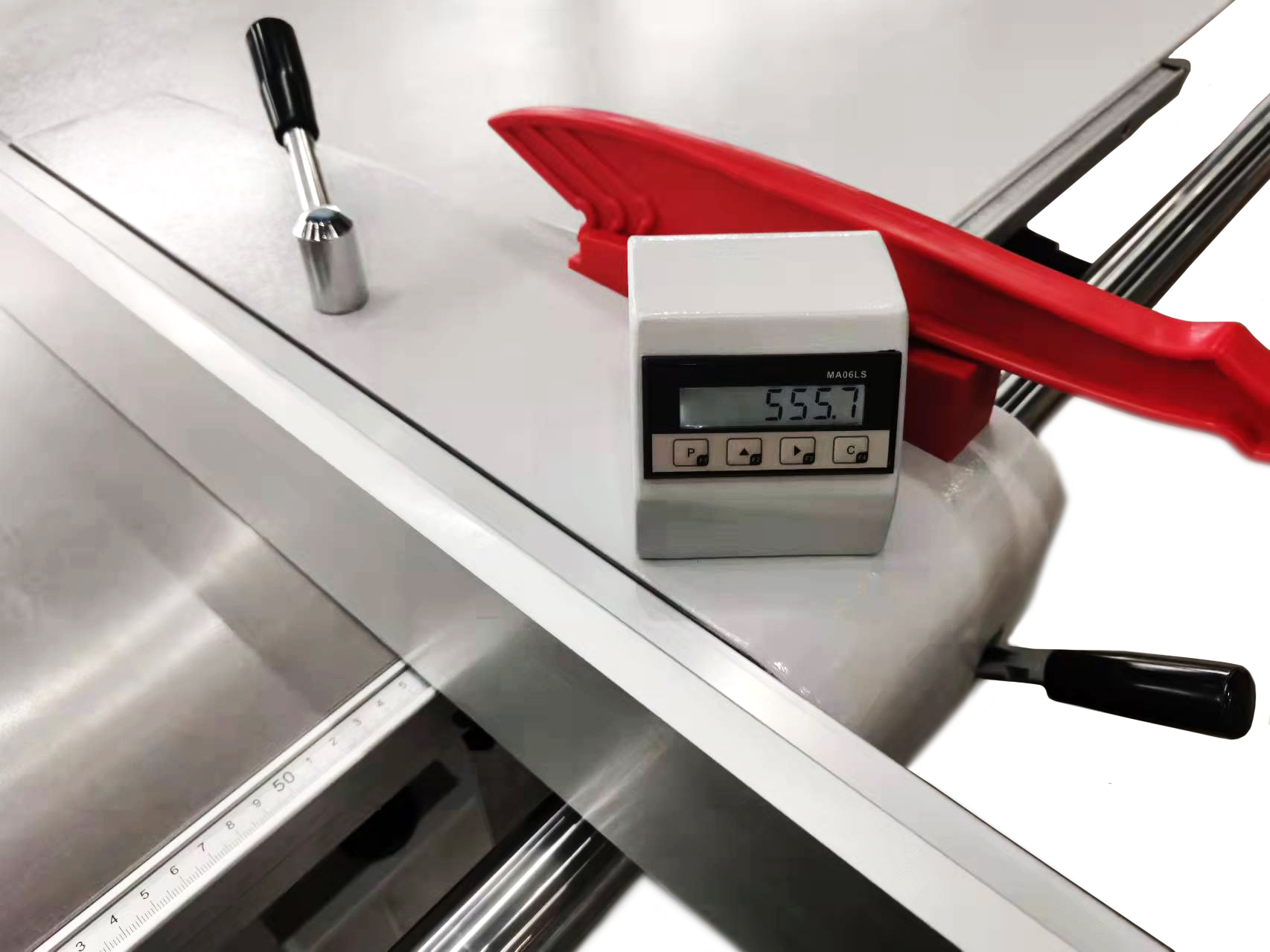

Longitudinal stop with electronic digital display allows you to quickly and accurately set the desired value. Pusher for safe work with narrow workpieces.

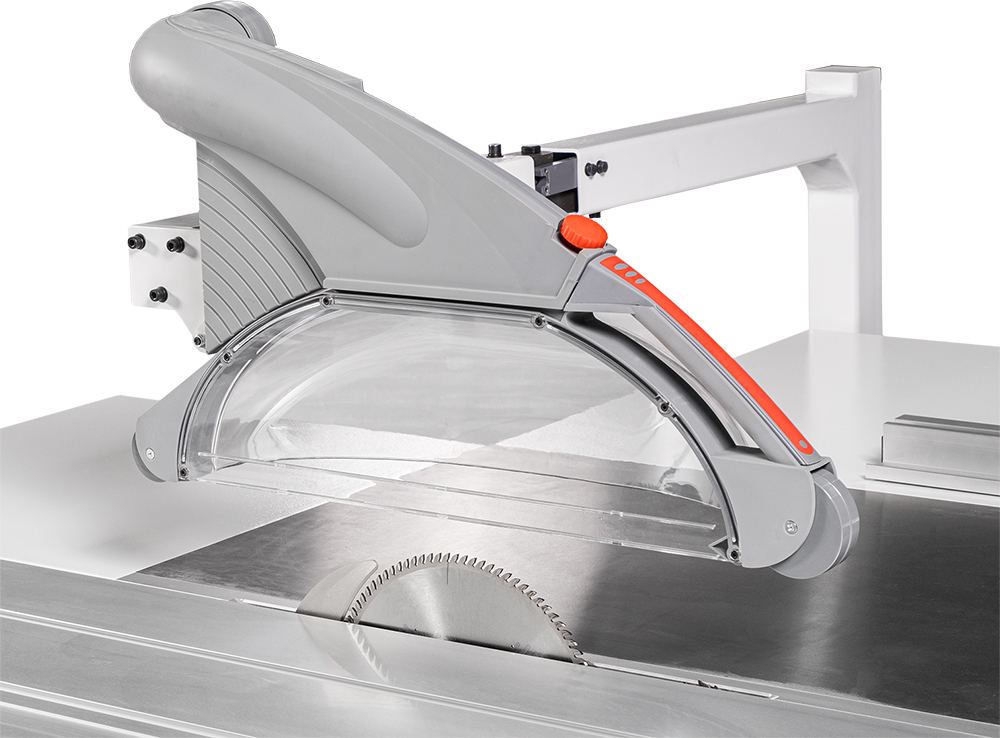

The transparent CE guard provides visual control of the cut, as well as excellent removal of sawdust from the cutting area.

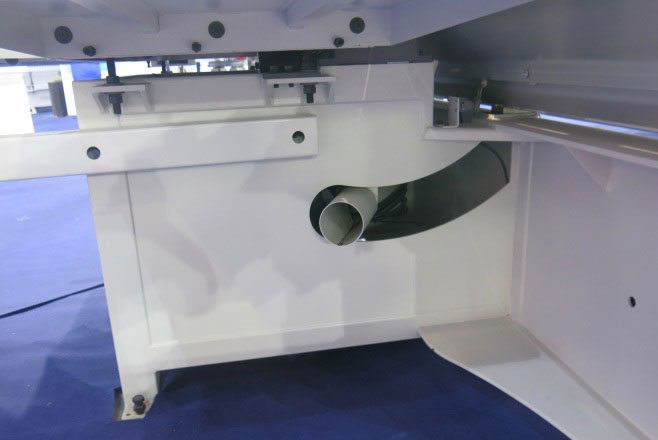

The main sawdust outlet is located in the engine compartment.

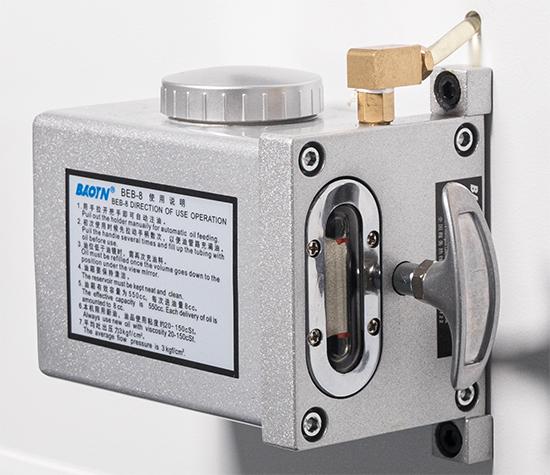

The centralized lubrication system lubricates all units and assemblies that require maintenance.

The machine is completed with the Leitz cutting tool.

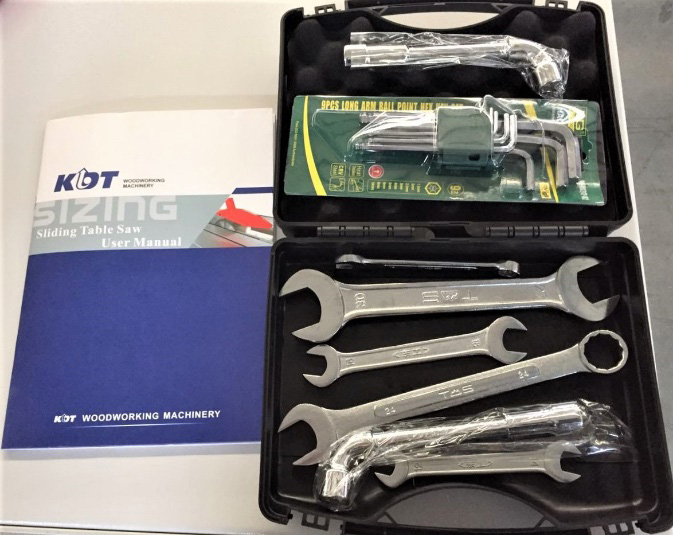

Tool kit for machine maintenance.
