Cardboard box making machine WG8C1H1W1

Purpose

Automatic cardboard box making machine for corrugated cardboard sheets WG8C1H1W1 is used in manufacturing enterprises of any level, enterprises providing special packaging services, using packaging of various sizes and designs. The equipment is designed to automate the packaging manufacturing process at your enterprise, to make it as simple and convenient as possible. With box making machine, you can manufacture any boxes for your products according to your requirements and the requirements of your customers.

Distinctive features

• Work with corrugated cardboard sheets up to 2400 mm wide.
• Automatic corrugated cardboard sheet feeding system with vacuum fixation.
• The machine is equipped with 6 longitudinal and 1 transverse cutting and scoring units.
• Productivity 3-6 boxes per minute.
• 40 templates in the program for creating standard boxes.
• Function for manual creation and import of box templates.
• Optimization of cutting maps.
• High precision processing.
• The machine works with most types of corrugated cardboard.
• Automatic transverse and longitudinal creasing and cutting of cardboard according to the program.
• Used for serial and individual production of packaging.
• Possibility of separate use of the machine and its integration into a packaging line.
• Takes up little space and saves space in production.
• Intuitive control system based on industrial PC.
• It is possible to automate the process of manufacturing boxes, for example, by obtaining information about dimensions from a measuring station.
• The massive frame prevents vibrations and ensures increased processing precision.
• Complete production statistics and diagnostic system.
• Security systems in accordance with CE standards.

Design advantages

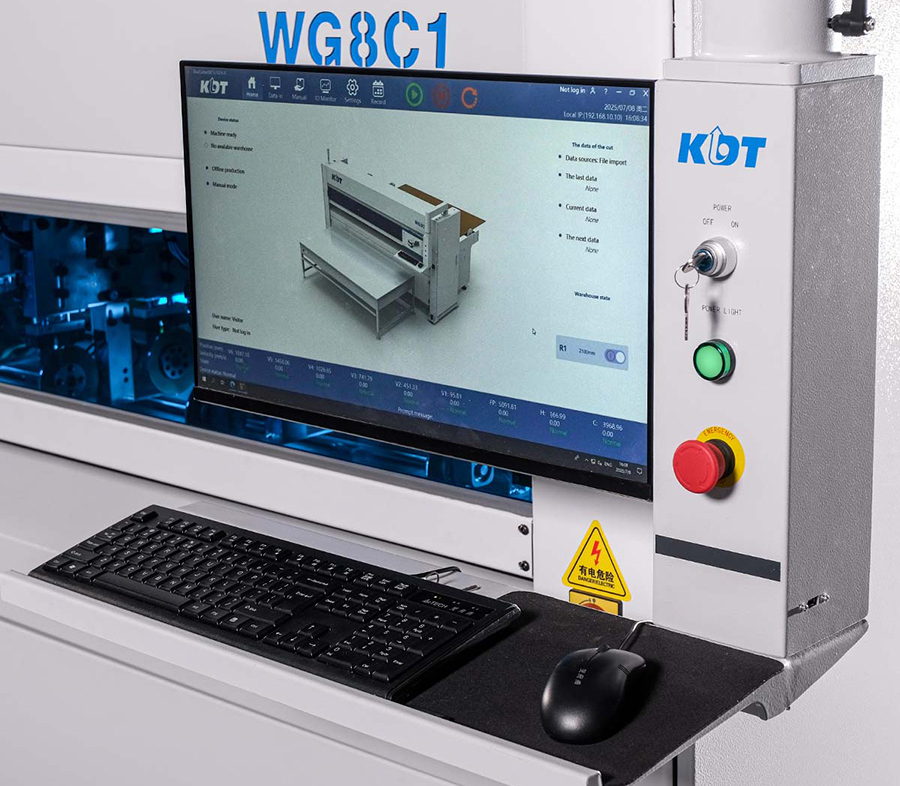

Intuitive control system based on industrial PC with display and Windows OS. Complete production statistics and diagnostic system.

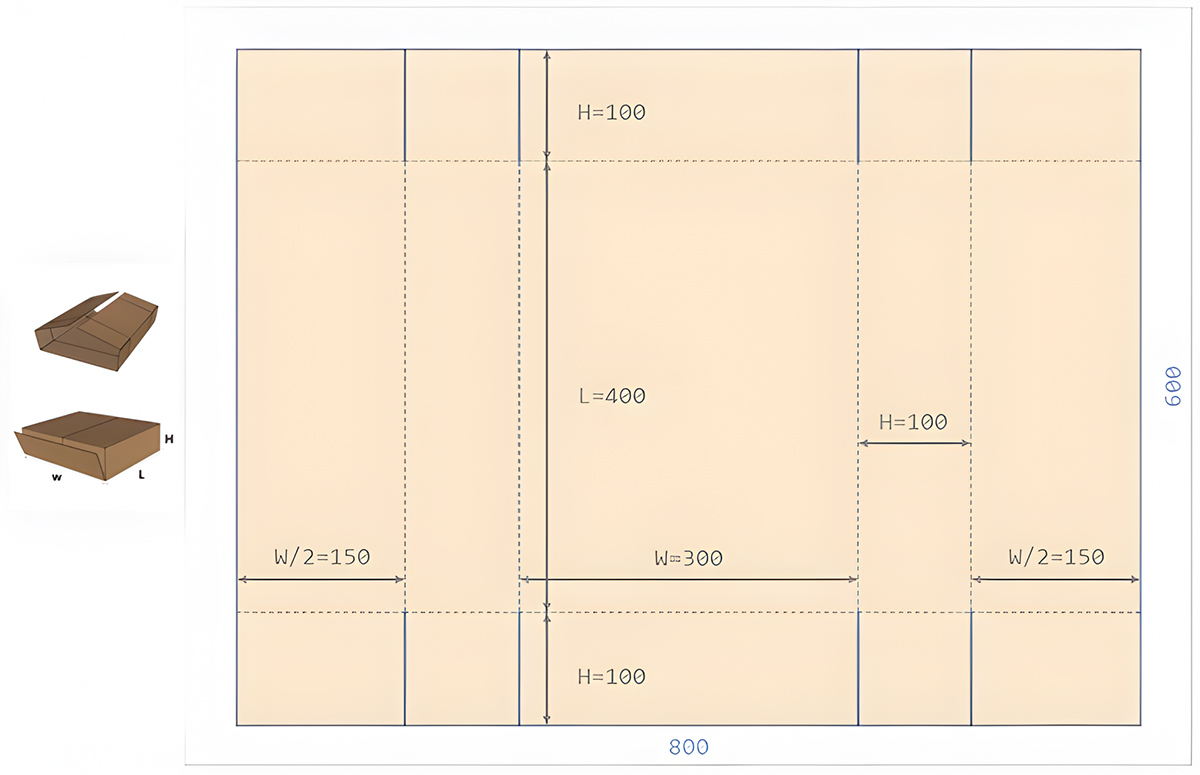

The box design module allows you to create various boxes and save the processing program.

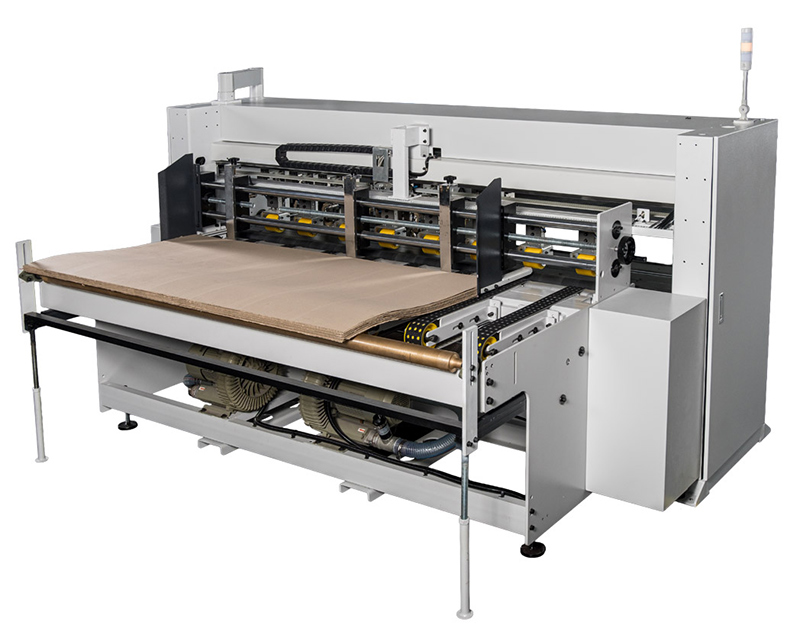

Automatic corrugated cardboard sheet feeding system with vacuum fixation. Maximum sheet width 2400 mm. Maximum cardboard pack thickness - 500 mm.

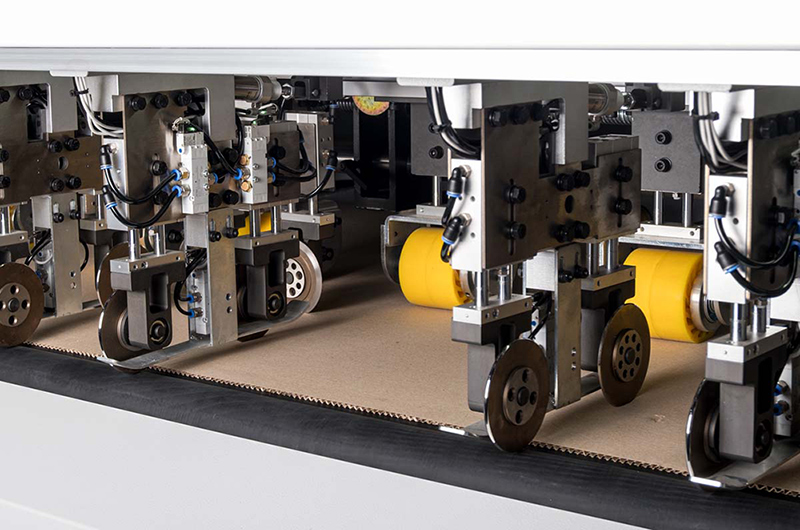

The machine has 6 longitudinal cutting and scoring units. Each pair of disk knives simultaneously cuts and scorers the future box in the longitudinal direction.

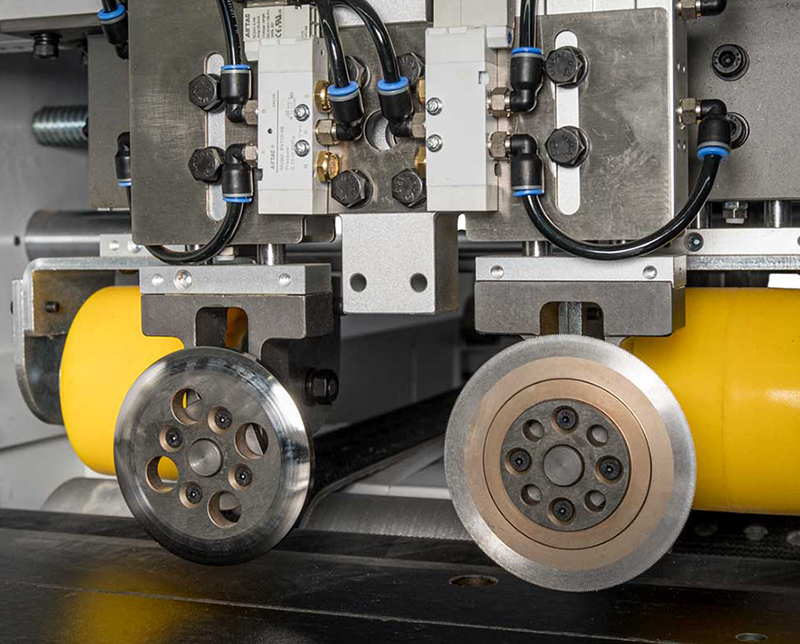

The transverse cutting and scoring unit consists of a pair of disk knives. It performs cutting and scoring of the future box in the transverse direction.

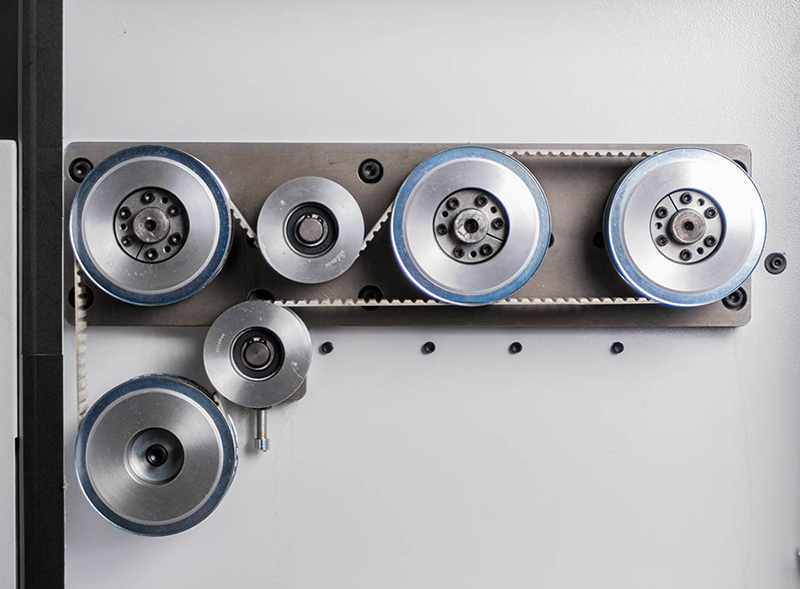

Belt drive of the knife and shaft system.

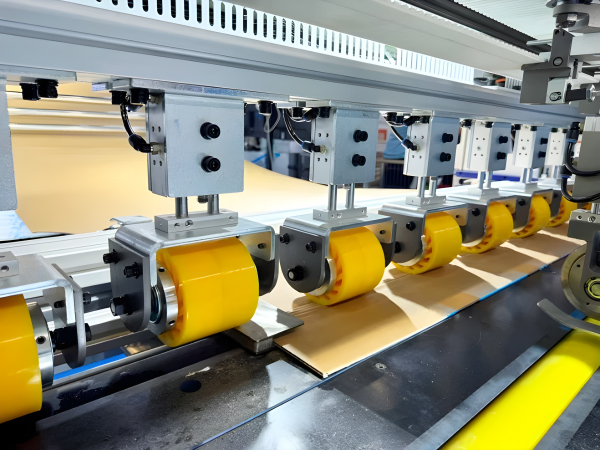

The pressure rollers securely fix the corrugated cardboard in the cutting area.

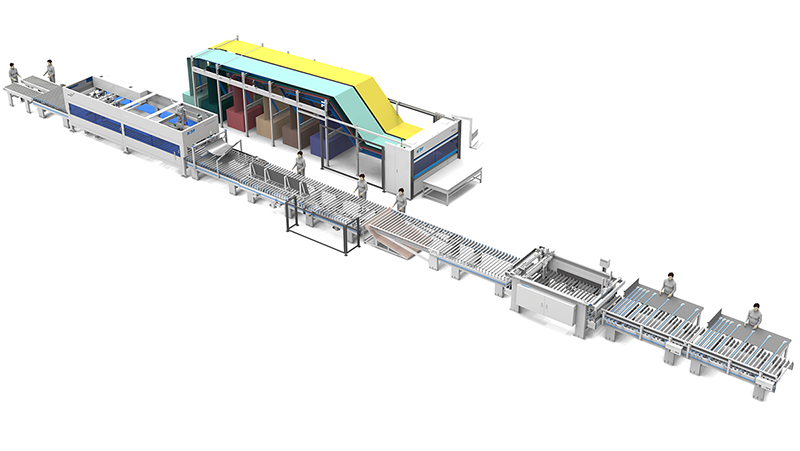

The machine can operate both separately and as part of a production line.
