Cardboard box closing machine WG8V6

Purpose

Automatic machine WG8V6 is used for packaging, gluing cardboard boxes with pre-laid products or individual blanks. Cardboard box closing machine is suitable for serial production and custom-made furniture production, can be used as a separate machine or as part of a packaging line.

Main features

• Ideal for both serial and individual production.
• The machine can be used either separately or as part of a packaging line.
• Up to 85% cost savings and consistently high packaging quality thanks to the use of hot melt adhesive (compared to packaging tape).
• High machine productivity - 4-8 packages per minute.
• Automatic measurement of the dimensions of the entire batch of boxes and adjustment to the required dimensions or reconfiguration according to the dimensions from a separate measuring machine.
• Quick reconfiguration for different box models.
• The machine is equipped with upper clamps for reliable fixation of the box during the gluing process.

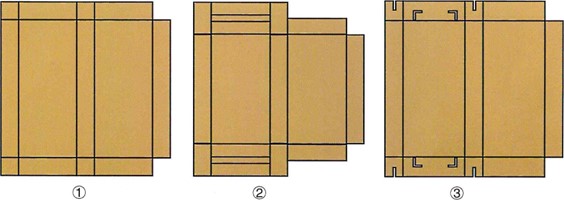

• Saving up to 40% on corrugated cardboard by using FEFCO 0410 type boxes.

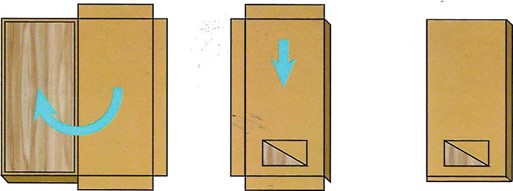

Principle of work

1. The box filled with parts is fed to a roller conveyor, where the box dimensions are measured (it is also possible to transfer the box size data from a separate measuring machine).
2. During the process of moving the box inside the machine, the upper part of the box is pressed by the pressure beam, and glue is sprayed on the long side of the box and then fixed by the pressure roller.
3. The box is transported to the cross stop and stopped. Glue is applied to the front end of the box, the pressure beam is lowered and the end is glued.
4. The box is transported further, where nozzles apply glue to the rear end of the box, and the pressing group glues the third side.

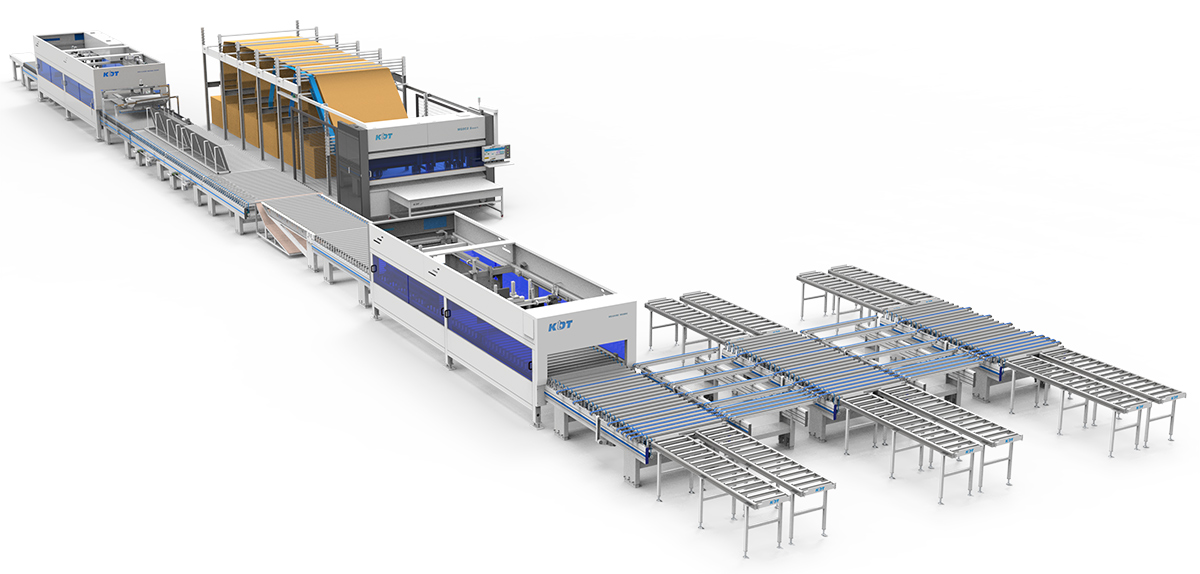

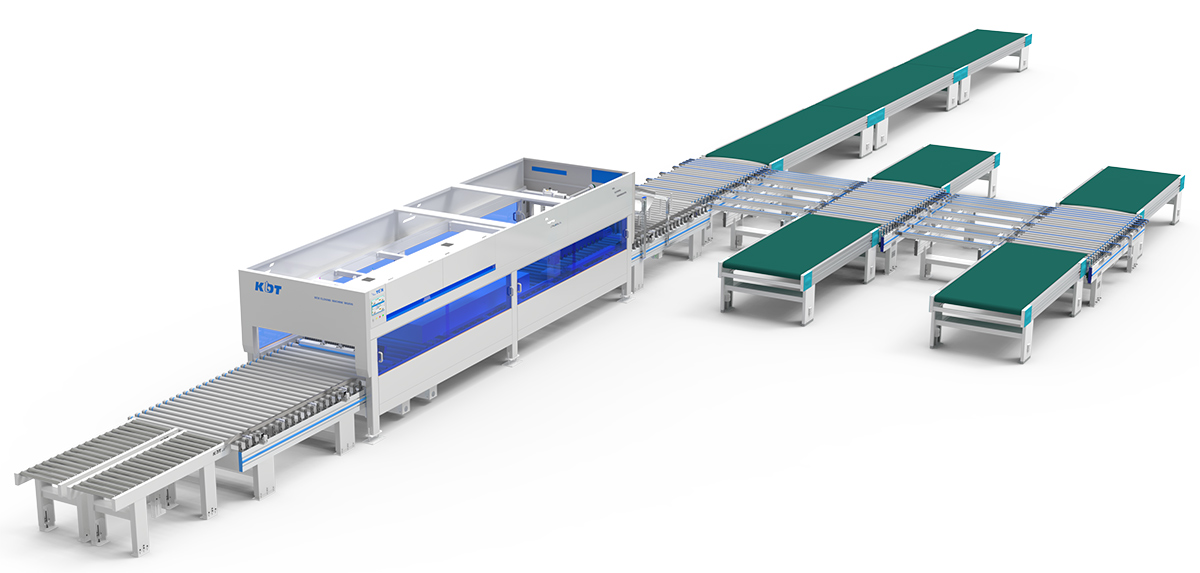

Packaging line examples
