CNC Four-side Panel Sawing Machine KHM-550B

Purpose

The CNC Four-side Panel Sawing Machine KHM-550B is designed for precise formatting of door panels and panel parts from 4 sides to the required dimensions in the through mode. Can be built into an automatic line. It is used at large door enterprises in the serial production of doors.

Main features

• Massive frame for precise work with minimal vibrations.
• Automatic loading and unloading.
• The processing time of one canvas takes up to 60 seconds.
• It can work as a stand-alone solution with a loading and unloading system, or be integrated into an automatic line for the production of doors.
• Automatic door leaf centering system using high-precision stops and vacuum modules.
• Three independent saw units with scoring saw and synchronous operation for maximum productivity.
• Support for barcode scanner.
• Servo driven conveyor, infeed and outfeed type.
• Automatic wastage collected by belt.

Engineering advantages

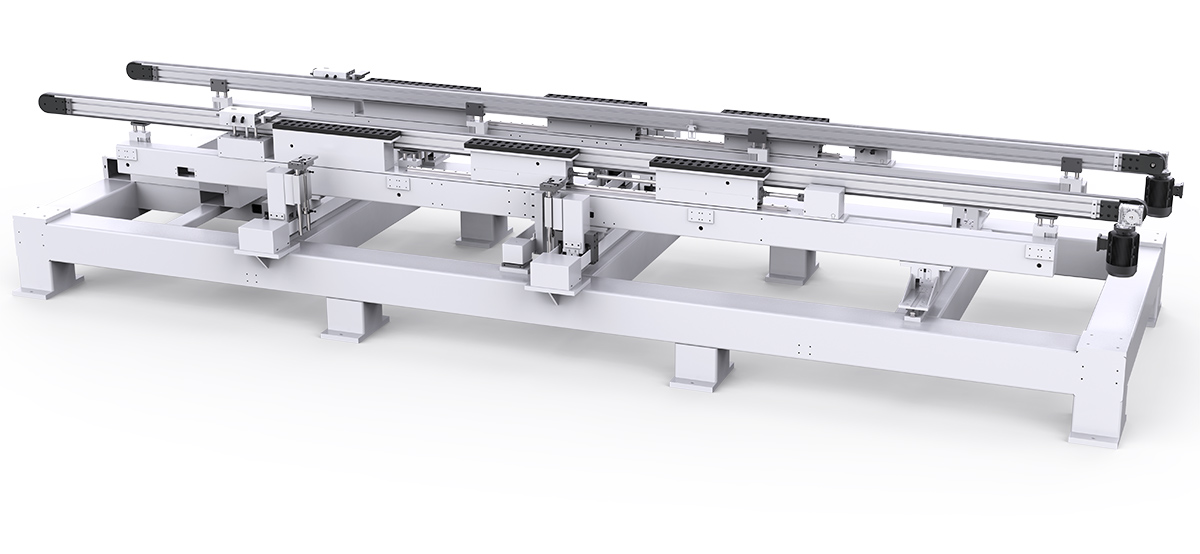

The powerful welded frame of the machine with minimal vibrations ensures precise work. Vacuum suction cups securely fix the workpiece on the desktop. Automatic adjustment to the size of the workpiece in width and length.

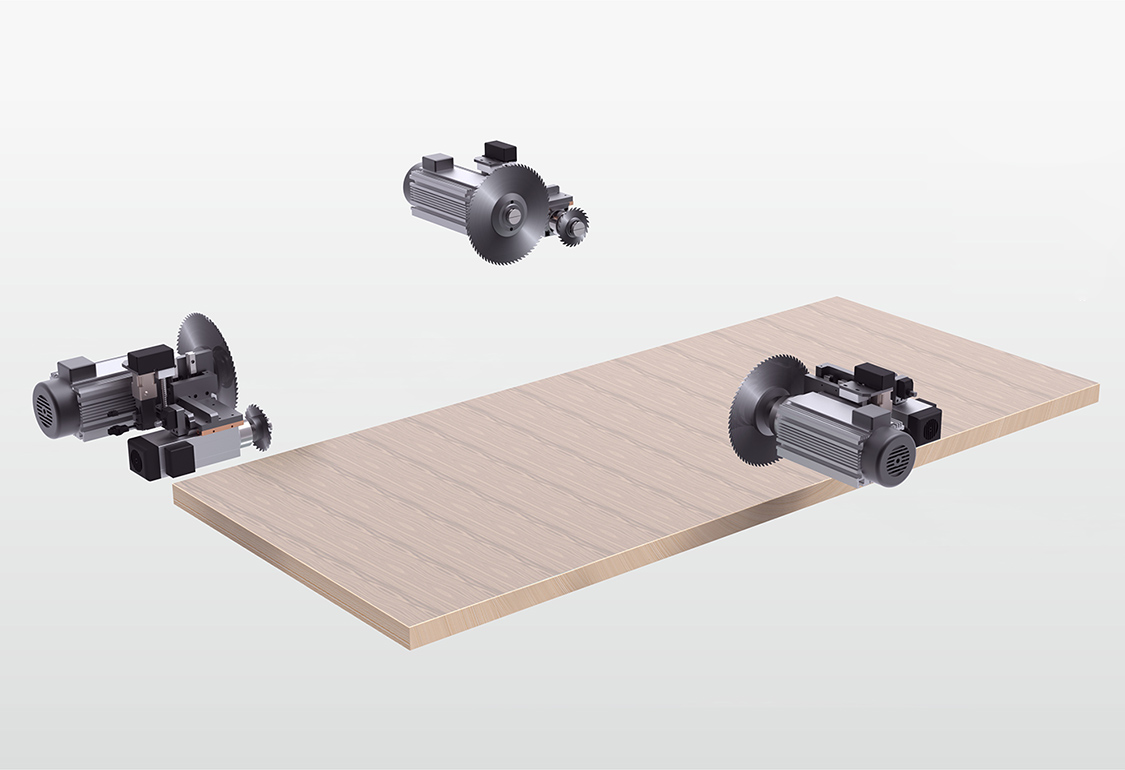

Three independent saw units with scoring saw work in sync for maximum productivity.

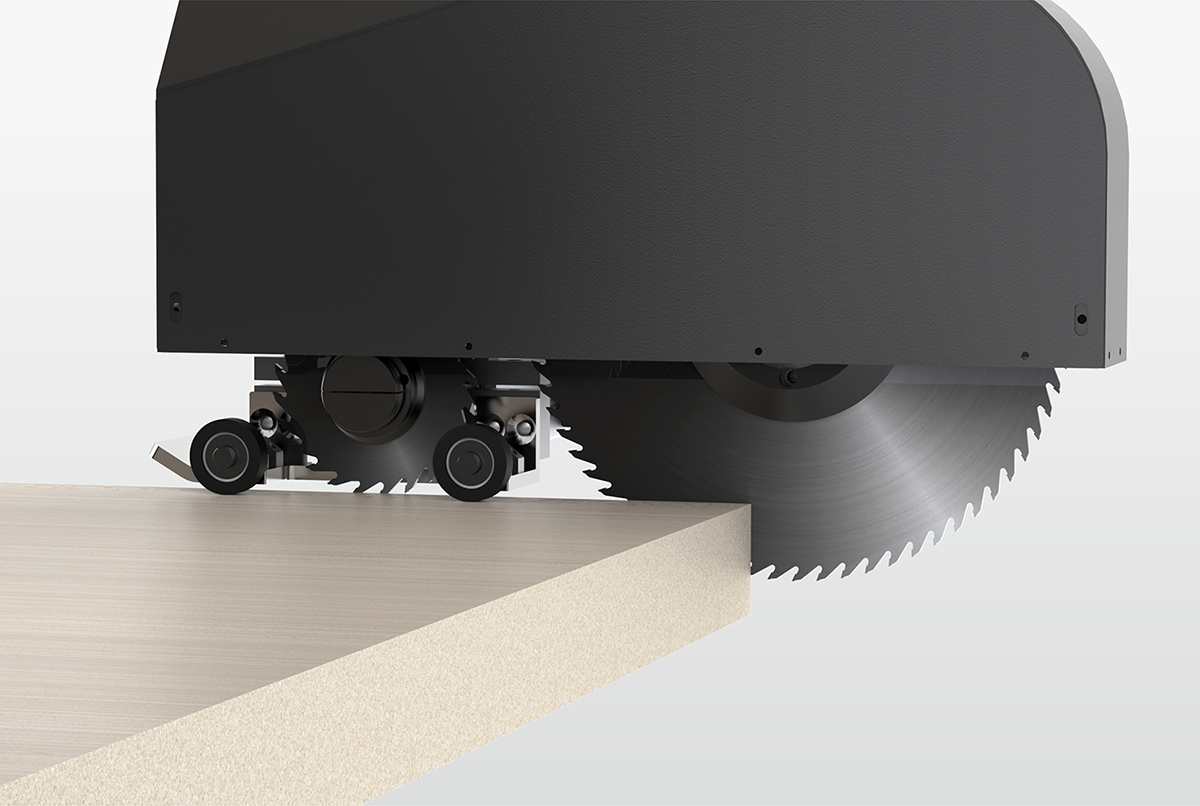

The productive saw unit has its own motors for the main (power 5.5 kW, blade size 300x30 mm) and scoring (power 1.5 kW, blade size 120x22 mm) saws . The scoring saw is servo controlled. Also the unit has an exit under aspiration.

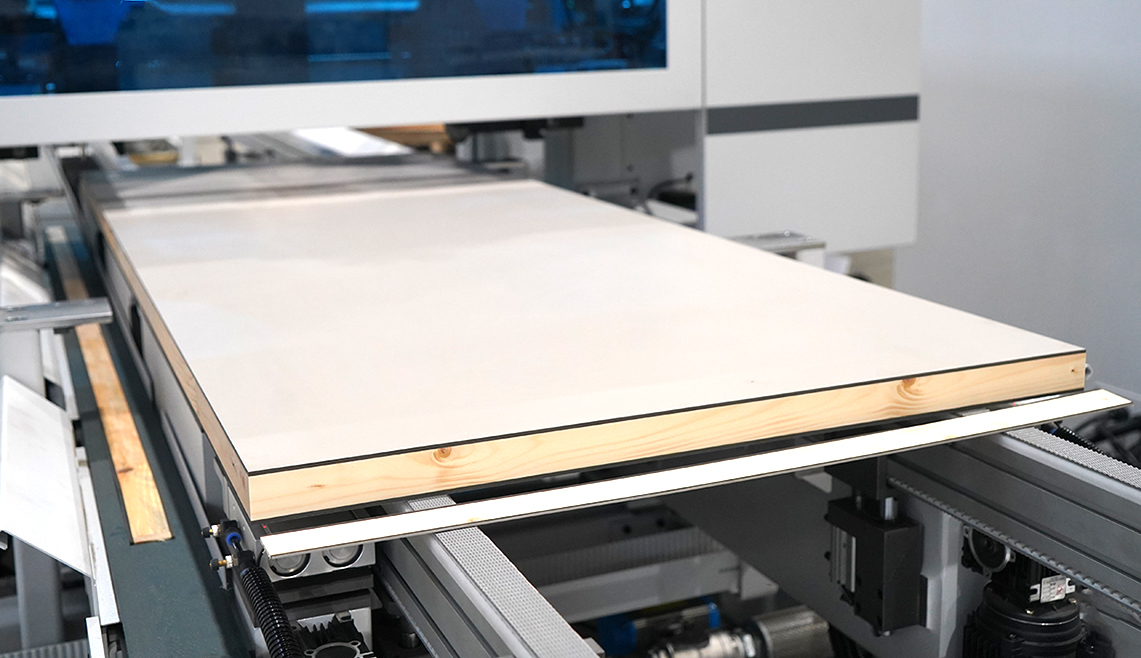

Automatic wastage collected by belt.

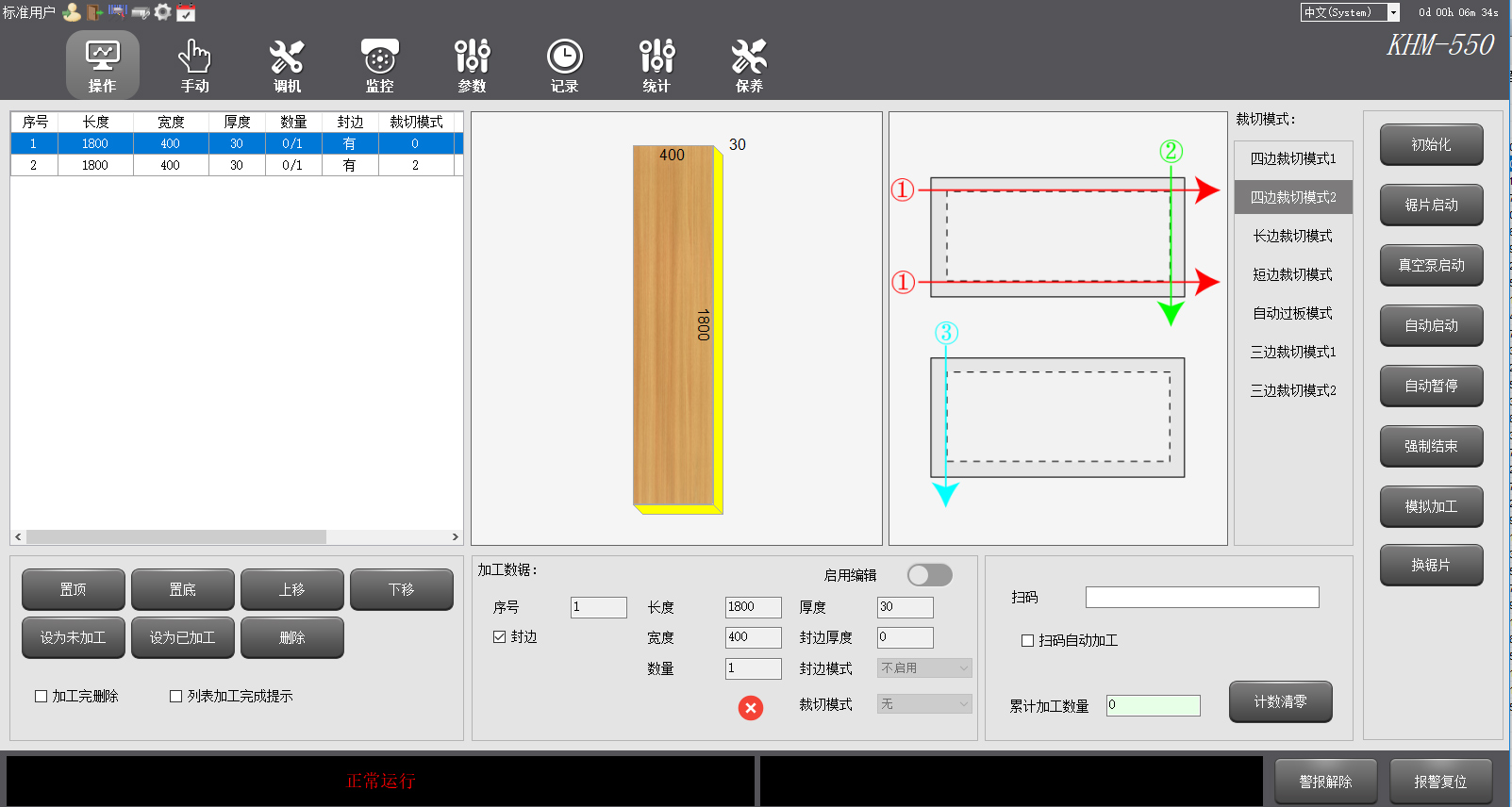

A simple and understandable machine control program allows you to quickly set and change processing parameters.

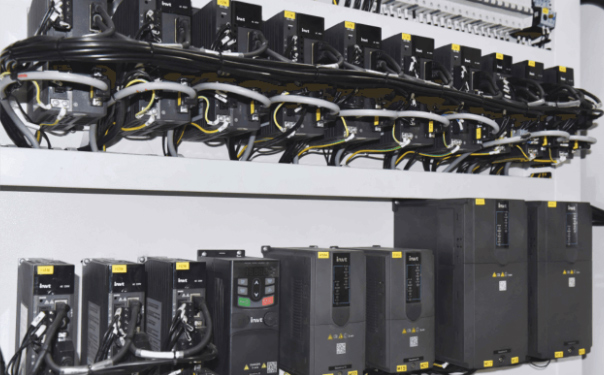

The machine is equipped with servo drives and frequency converters from INVT.

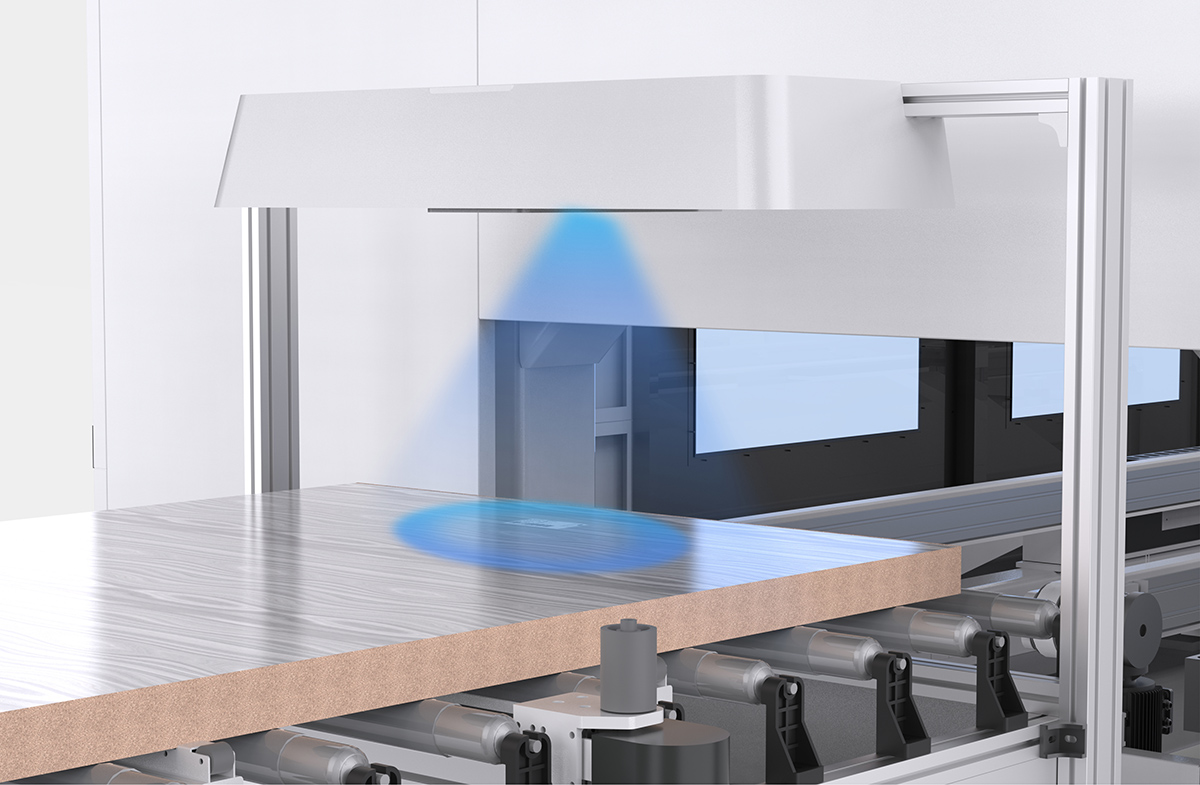

OPTIONAL! Barcode scanner.
