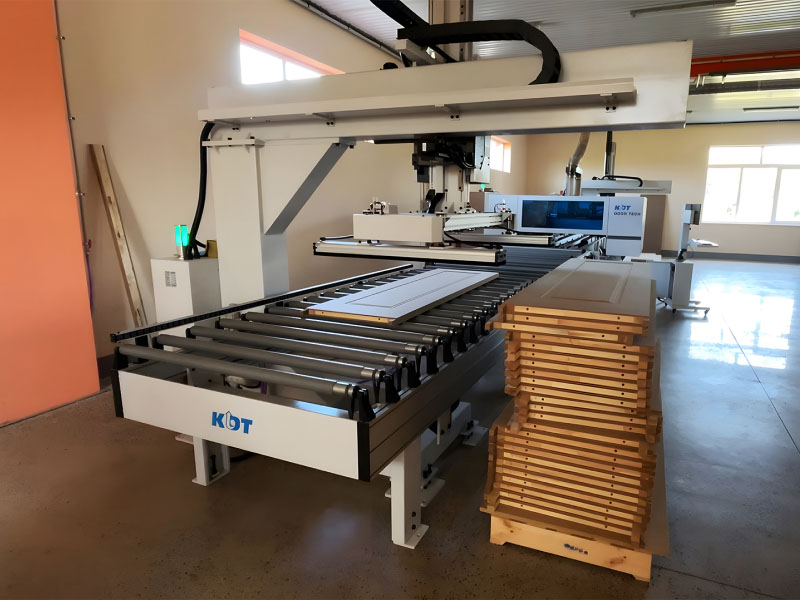

Automated line based on CNC four-side panel cutter KHM-550B

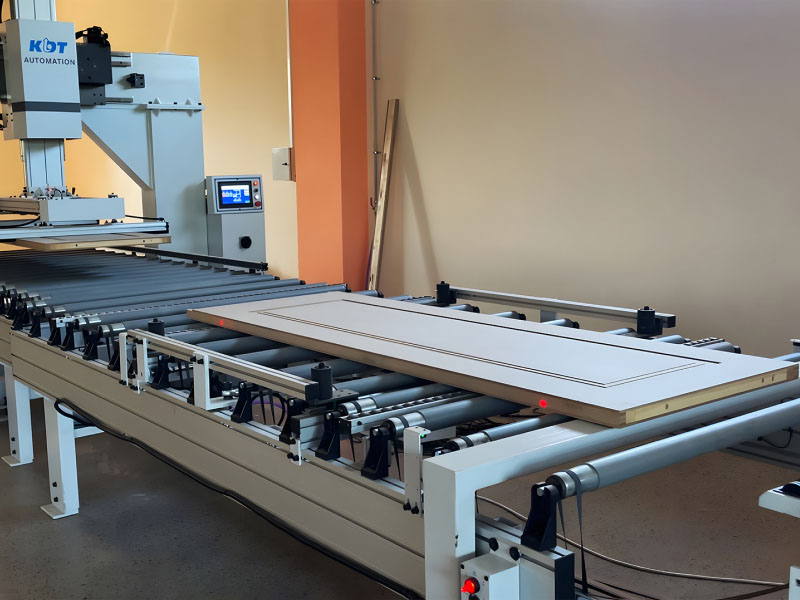

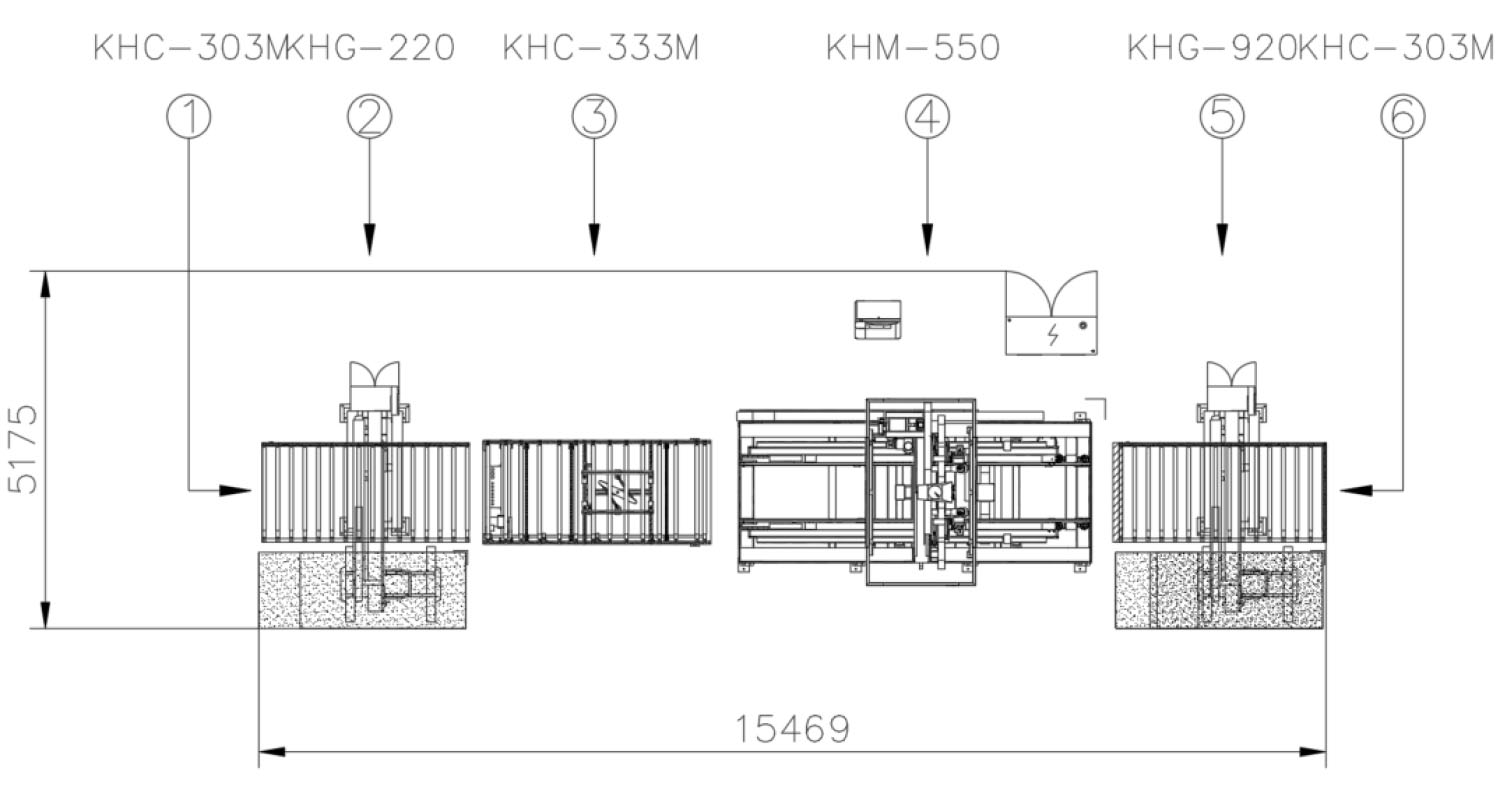

The automated line based on the KDT KHM-550B CNC panel cutter is designed for high-performance and precise cutting of door panels and board-type workpieces in mass or serial production. Workpieces are loaded onto the drive conveyor by the automatic gantry manipulator KHG-220, from where they are transferred to the machine. Reconfiguration of the machine for different operation programs is carried out via an industrial computer.

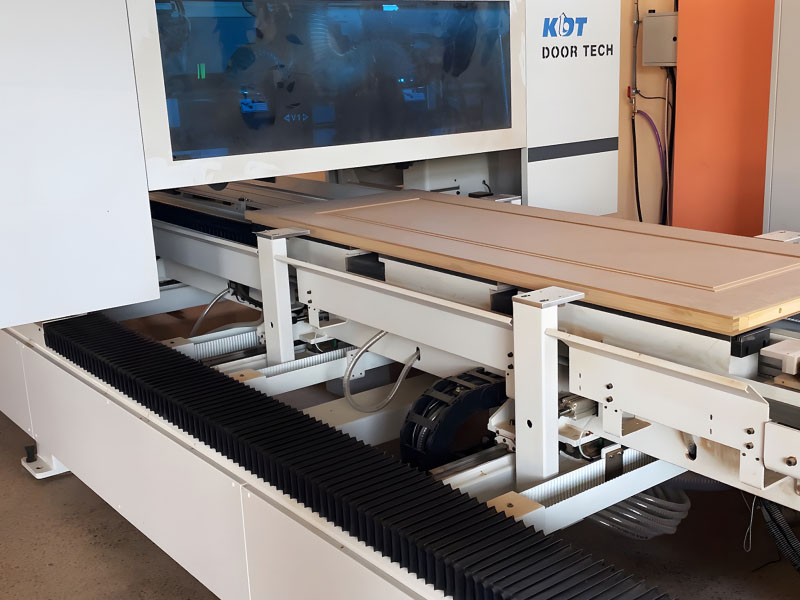

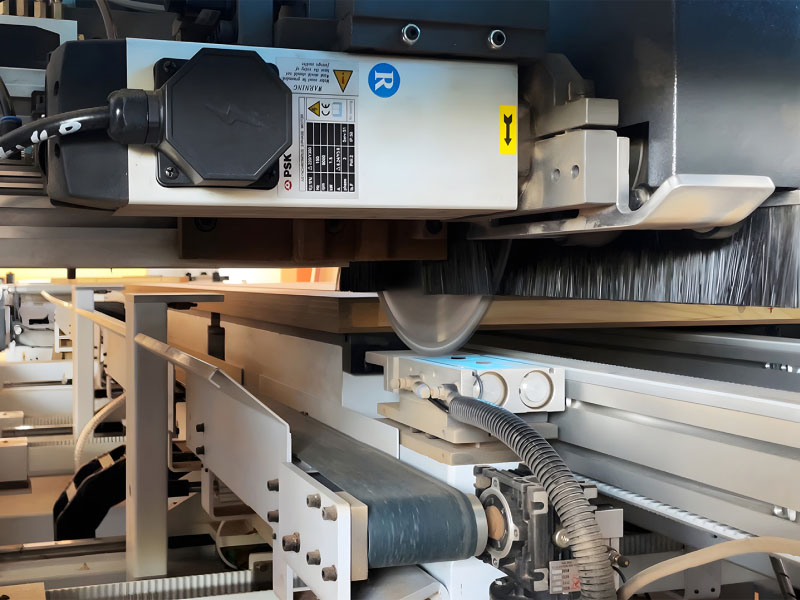

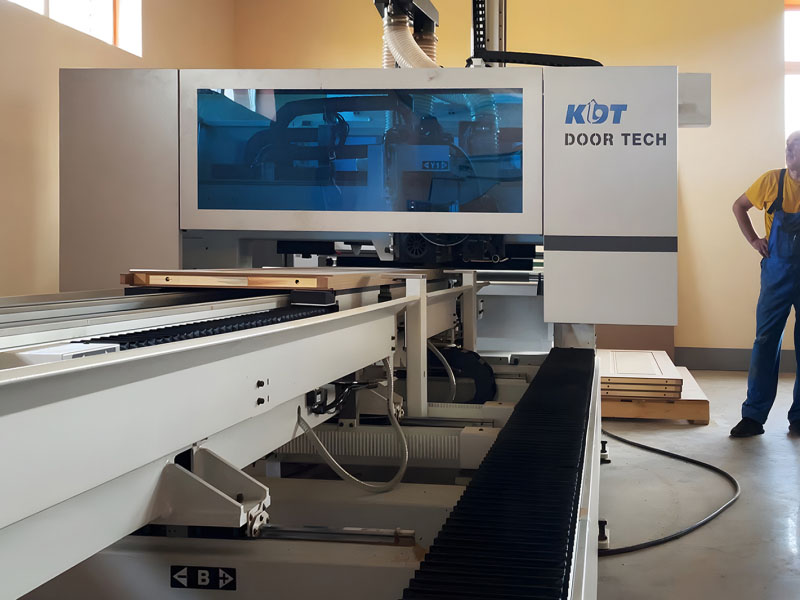

The KHM-550B panel cutter ensures four-sided cutting of workpieces in a path-through mode. Due to software control of the operation, high geometric accuracy is achieved according to the specified parameters.

After operation, the workpieces are automatically unloaded by the gantry manipulator KHG-920 onto a pallet or conveyor. If necessary, the system can be integrated into a larger production line.

Key advantages of the automated line:

• High-precision cutting and consistent workpiece geometry according to set parameters
• Flexibility in cutting workpieces of various complexity and sizes
• Stable industrial-grade product quality with minimized human involvement
• Automated loading and unloading of workpieces via gantry manipulators
• High productivity.
