Labeling machine KHA-1710TS

Purpose

Labeling machine KHA-1710TS is designed for labeling workpieces and their further loading to CNC machining center. The system prints and applies labels while the CNC milling center processes the panel. As soon as the nested panel is processed, the marking of the next one is ready. It is loaded automatically at the same time as the finished panel is unloaded.

Scheme of automatic nesting line

Peculiarities

• Automatic determination of the height of the package of blanks by a position sensor.
• Automatic label printing and detection of missing or misplaced labels.
• Automatic binding function to ensure accurate label printing.
• Load capacity up to 3500 kg with a maximum stack height of up to 500 mm.

Engineering advantages

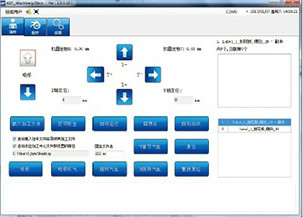

The loading table control program is integrated into the control panel of the machining center.

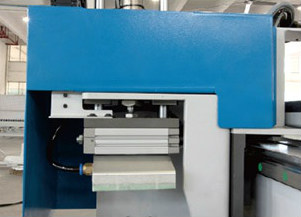

The software recognizes narrow panels such as drawer fronts and the print engine rotates 90 degrees before application.

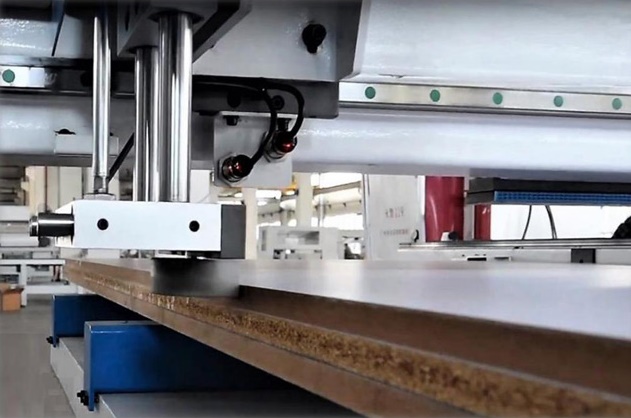

Automatic alignment of the workpiece.

Automatic workpiece feeder for CNC machining center.

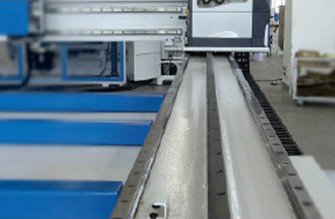

High quality industrial grade rails from a Taiwanese manufacturer.

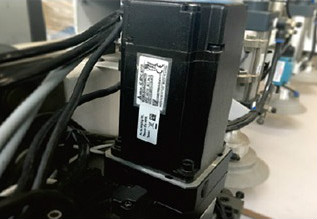

The DELTA servo motor provides high precision and fast positioning.

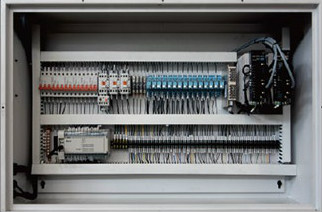

Electrical control cabinet with electrical components from well-known manufacturers.
