Hydraulic loading table KHA-2710
- Maximum workpiece size, mm 3050x2100
- Height of the package of blanks, mm 500
- Workpiece thickness, mm 10-60
- Load capacity, kg 3500
- Total power, kW 2.2
- Table dimensions (LxWxH), mm 3000x2460x1025
- Weight, kg 1260
Note
Product specifications and appearance may change without prior notice.
Purpose
Hydraulic loading table KHA-2710 is designed for automatic loading of workpieces into CNC machining center.

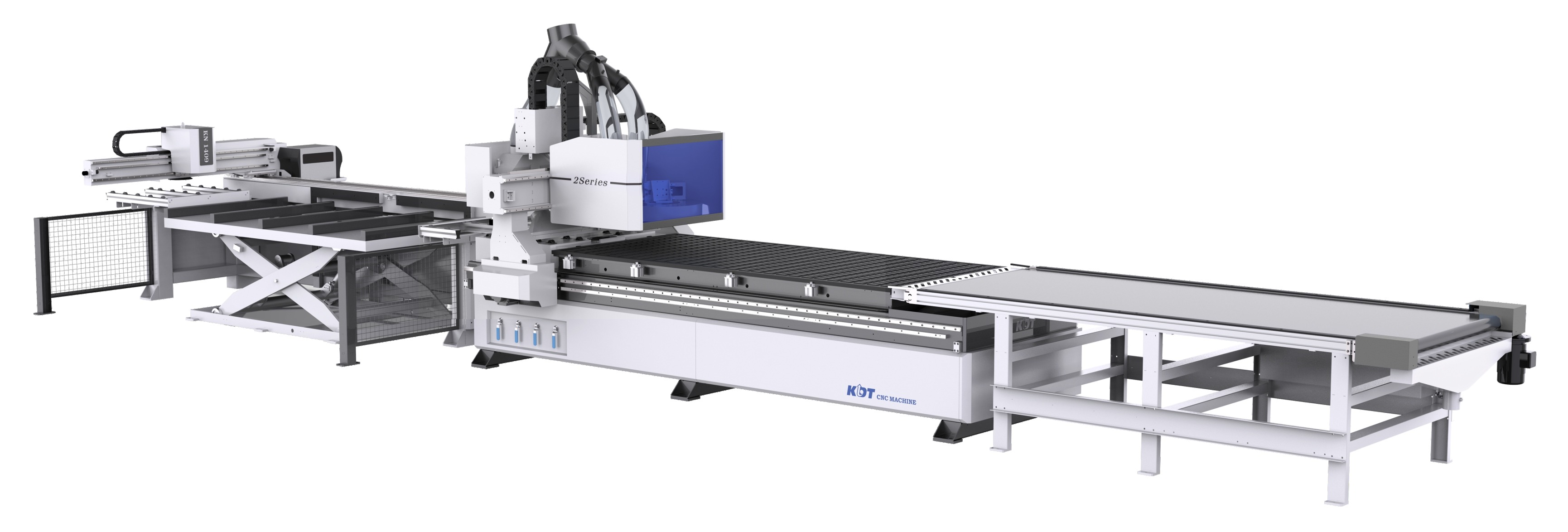

Scheme of automatic nesting line
Peculiarities
- Automatic determination of the height of the package of blanks by a photoelectric position sensor.
- Automatic lifting of workpieces and automatic stop when the desired position is reached.
- Load capacity up to 3500 kg with a maximum stack height of up to 500 mm.
| Specifications of the hydraulic loading table | |
| Maximum workpiece size, mm | 3050x2100 |
| Height of the package of blanks, mm | 500 |
| Workpiece thickness, mm | 10-60 |
| Load capacity, kg | 3500 |
| Total power, kW | 2.2 |
| Table dimensions (LxWxH), mm | 3000x2460x1025 |
| Weight, kg | 1260 |
