Automatic edge banding machine KE-396JB

Purpose

Automatic edge banding machine KE-396JB is designed for simultaneous banding of straight edges of furniture boards and blanks with synthetic roll material. The machine allows you to get a product with three different options for gluing the edge.

Example of a partial 45° bevel for 16mm and 18mm panels.

Example of a partial 45° bevel of a 25 mm thick panel.

Example of a partial 45° bevel finished panel .

Machine components

1. Knot of preliminary milling and formation of a bevel.
2. Clamping knot.
3. Ending knot.
4. The first milling unit for removing overhangs.
5. The second milling unit for removing overhangs.
6. Scraping unit with radius knives.
7. Scraping unit with straight blades.
8. polishing unit.

Main features

• Feed speed 12-20 m/min;
• Control panel "Touch screen";
• Feed line with heating (not installed on machines with milling);
• Built-in waypoint control for contactless control of processing units;
• Possibility of programming technological breaks;
• Individual frequency converter for each working node;
• Lighting in the protective cabin;
• Limit switches on the doors in the protective cabin;
• Pneumatic shutter on the glue roller, prevents it from getting dirty;
• Adjustment of the front and rear overhangs of the edge from the control panel;
• Execution according to CE standards.
• The machine has two units for applying liquids:

1. The first unit for applying the separating liquid: with the help of 2 nozzles in front of the pre-milling unit (milling) of the workpiece. This is done by applying a special separating liquid, so that the glue residues that come out do not come into contact with the workpiece.
2. The second unit for applying polishing liquid: using 2 nozzles in front of the polishing unit. This is a cleaning fluid. The main task is to remove the anti-adhesive applied at the beginning (separating liquid) and free adhesive residues. And also to give shine to the finished edge of the part.

Engineering advantages

The bed of the edge banding machine has the form of a rigid box with the necessary stiffening ribs, which guarantees the exact location of all nodes during the entire period of operation.

The machine is controlled using a special remote control equipped with an industrial display with a “Touch screen” system. The on/off icons of units and assemblies on the display are intuitive and do not require special skills to operate the machine.

Possibility of programming technological interruptions of glue bath heating.

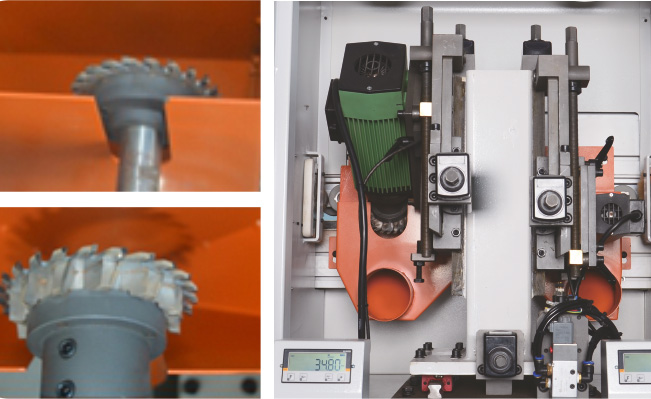

Unit for pre-milling the end of the part before gluing the edge onto the formed surface. It is equipped with two motors that carry out the processing of a straight and inclined section. It has digital displays to adjust and display the angle of inclination.

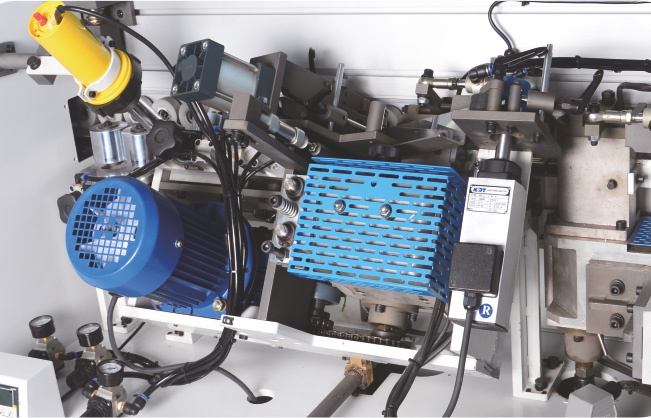

The glue bath is equipped with a glue dosing mechanism. The inclination of the glue bath from 0-45°. The unit for pre-cutting the edging material cuts off the edge coming from the roll with the help of a guillotine knife. The press group is set to the required angle of 0-45° and carries out the necessary clamping of the edging material.

The end trimming unit is equipped with two high-frequency electric motors, and the movement of the saw units is carried out along special linear guides. The unit is equipped with an automatic lubrication system for the guides.

The milling unit consists of two high-frequency electric motors equipped with radius cutters, which allow processing edge material with a thickness of 0.4 - 3.0 mm. The part is tracked by two large round cams (on each motor) mounted on a floating assembly, this design prevents scrap during milling. The machine is equipped with two pairs of milling units - 2 roughing units and 2 units for fine milling of overhangs.

Radial scraping with two carbide radius knives, which, after milling a 2.0 mm thick edge, remove a thin layer from the milled part of the edge, as a result we get a smooth machined surface.

The direct scraping unit is equipped with two hard-alloy straight knives (adhesive scraper), which carry out edge processing at the joints with the part. This operation removes excess glue and micro-roughness on the seams in the places where the edge is glued to the part.

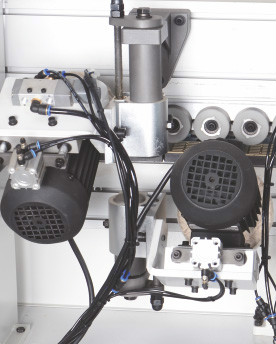

The polishing unit polishes the processed part of the edge, has a pneumatic control of the angle of inclination and improved polishing quality.

The pressure band instead of rollers guarantees precise and reliable positioning of the workpiece in all stages of edging. The KE-396JS machine model, similar in parameters, is equipped with pressure rollers.

The mechanism for lifting/lowering the clamping traverse is equipped with an electric drive, which ensures fast and accurate installation to the required thickness of the part.

The centralized lubrication unit automatically lubricates the guides of the trimming unit.

The electrical components are made in accordance with CE standards.

The doors of the machine cabin are sheathed with a layer of sound insulation made from foamed polyurethane foam, which allows you to achieve comfortable work with the equipment.
