Automatic drilling machine KDT-6462K

Purpose

The KDT-6462K industrial grade PC-based automatic drilling machine with automatic changeover and servo drives is used for drilling the necessary mounting holes in cabinet furniture parts in furniture factories and workshops.

Processing scheme

Main features

• High rigidity;
• Powerful, reliable drives;
• Drilling of a detail from four parties ;
• Automatic changeover with servos;
• Industrial PC based on WINDOWS7;
• Automatic feeding of blanks into the working area;
• Possibility to embed in the production line;
• Two options for unloading parts from the machine "back / forward";
• Impeccable quality and precision processing;
• Fixation of drilling groups is carried out with the help of pneumatics;
• Digital counters on the drilling groups allow quick and accurate changeover from one size to another;

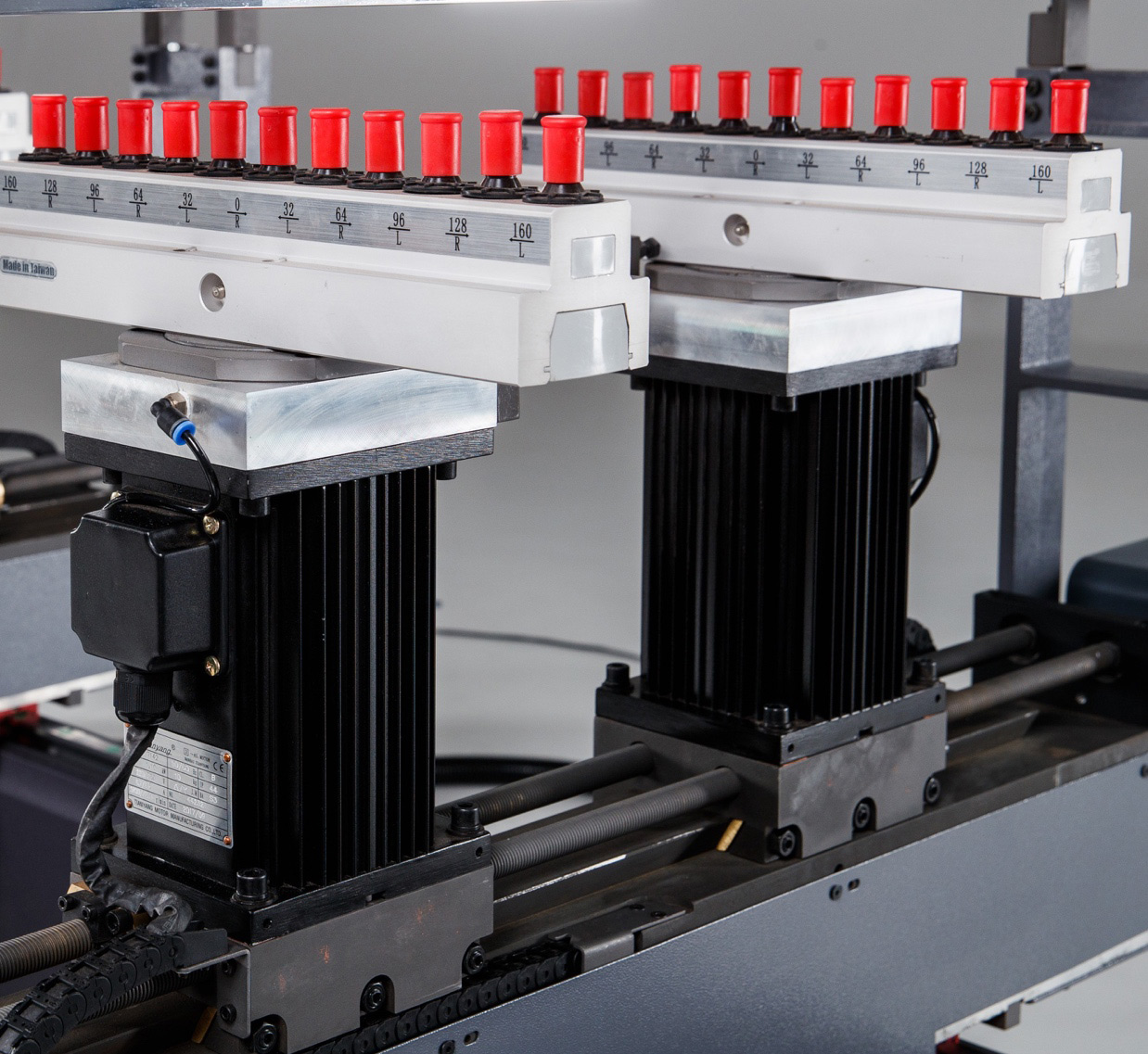

• Possibility of rotation of the drilling group by 90 degrees.

Engineering advantages

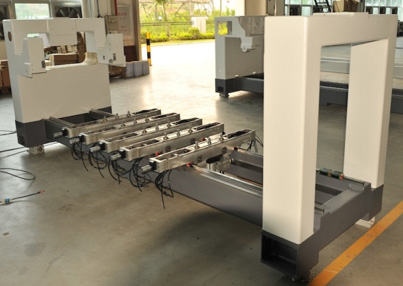

The machine bed is made of a profile with an enlarged section, which additionally gives rigidity to the structure and minimizes vibrations that occur during operation.

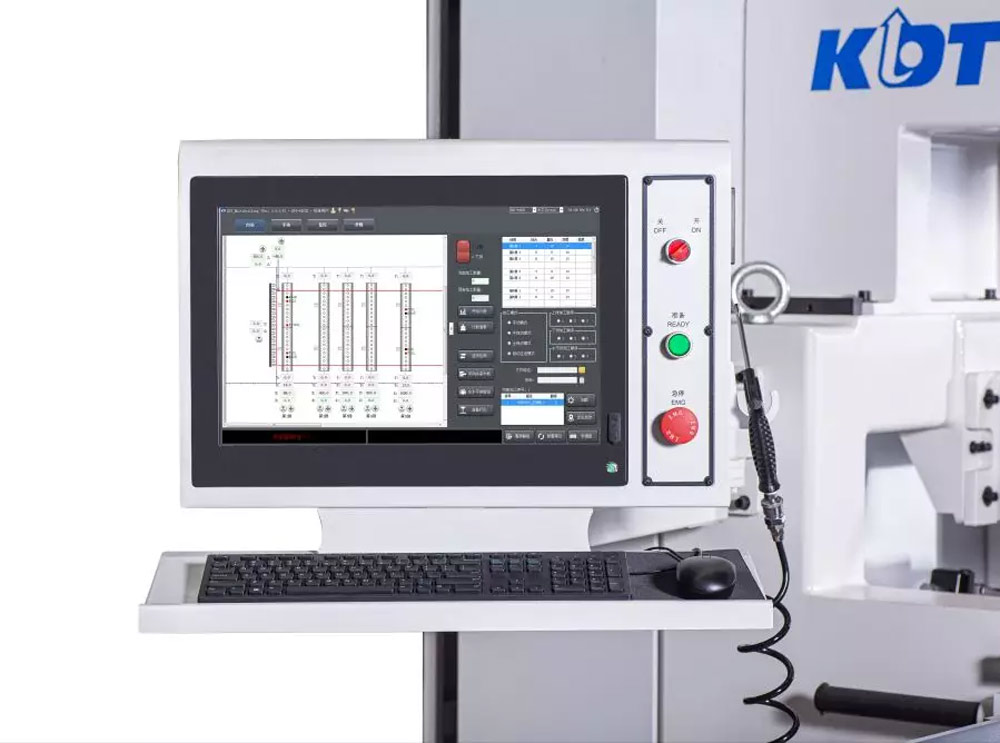

Industrial PC based on WINDOWS7 with the Drilling Master program, which has a system for optimizing maps.

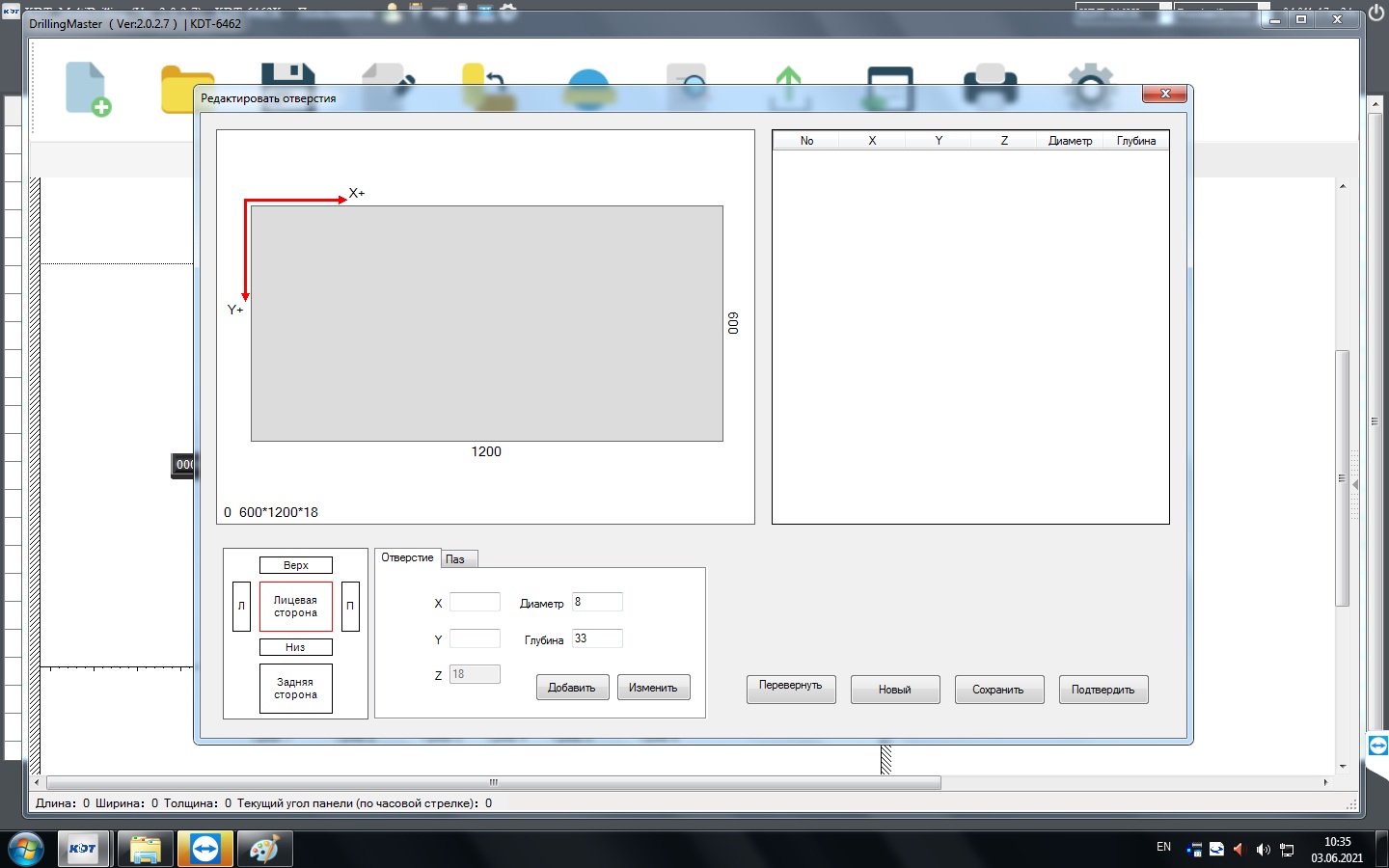

The Drilling Master has a built-in editor for creating machining maps directly in the machine's control program.

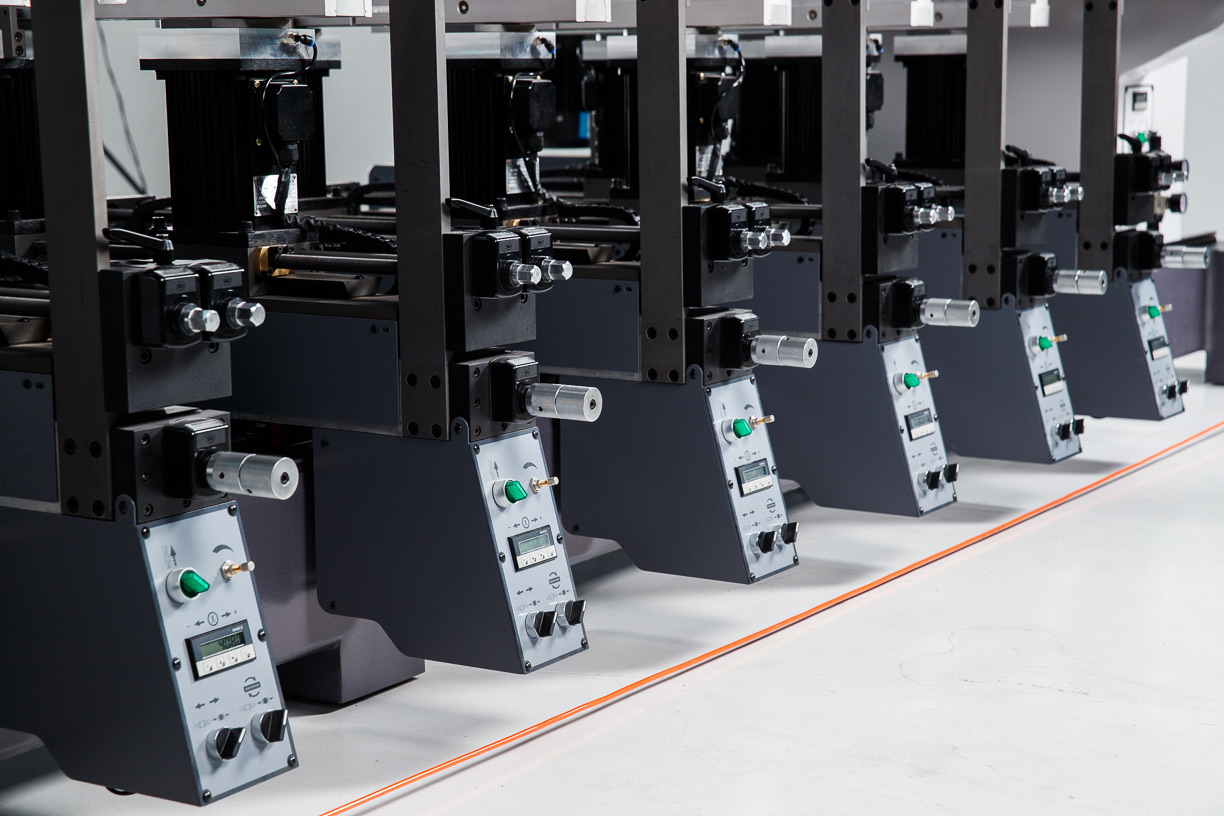

The machine is equipped with digital counters, which allows you to quickly change from one size to another. Pneumatic brakes securely fix the drilling traverses and guarantee stability and accuracy according to the additive chart.

The KDT-6462K machine has the following equipment:

• 2 horizontal end traverses with 21 spindles.
• 6 lower vertical traverses, double design with independent motors (11+11)x6. They have the ability to rotate 90 degrees.
• 4 top vertical traverses, double design with independent motors (11+11)x4. They have the ability to rotate 90 degrees.
• Drilling of the part is carried out from four sides, this guarantees the processing of most cards in one work cycle.

On request, the machine can be manufactured in the following configurations:

• Lower vertical traverses in the amount of 1 to 8 x (11+11).
• Upper vertical traverses in the amount of 1 to 5 x (11+11);

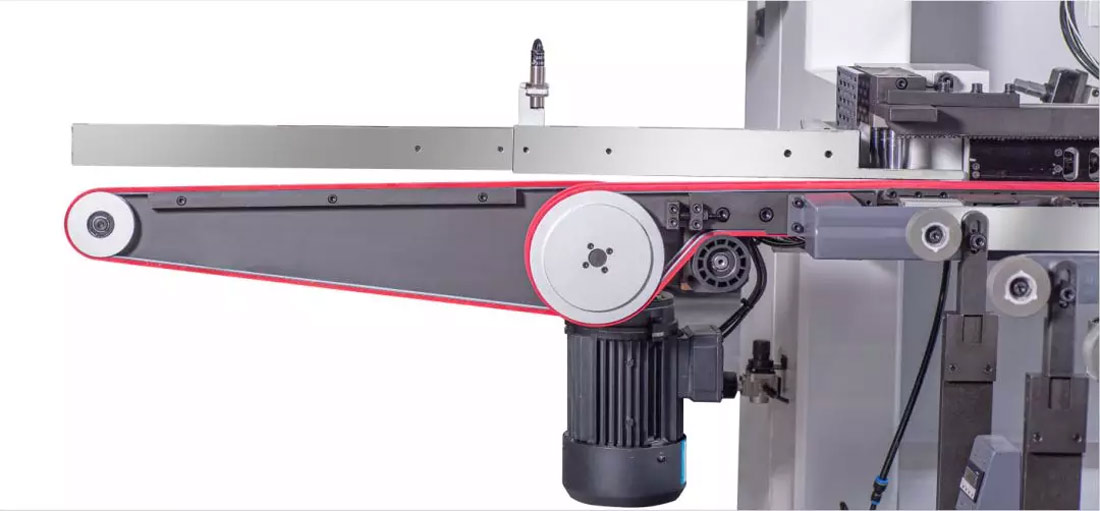

Automatic feeding of parts into the working area, ensures maximum productivity of the machine in mass production.

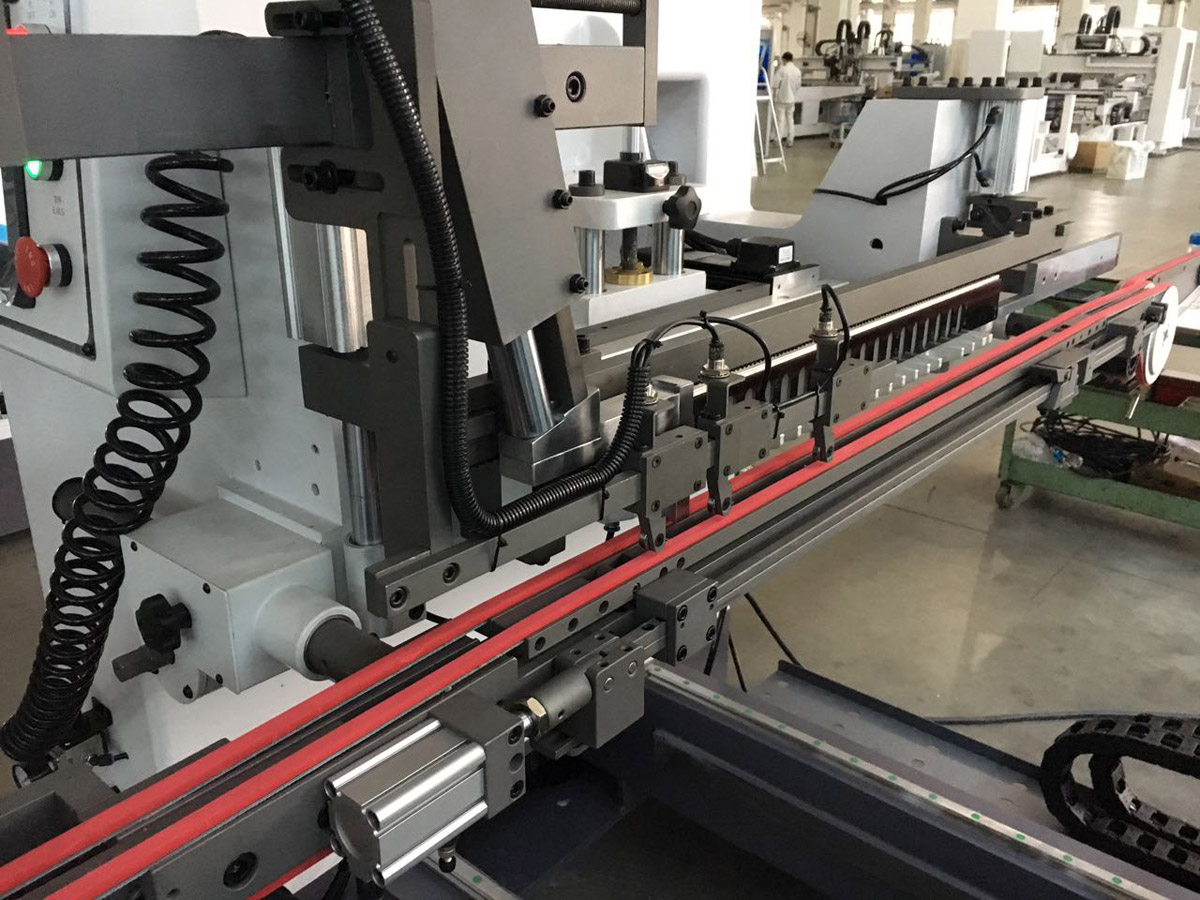

The machine can work in two modes:

• walk-through mode, two operators work.
• return mode, one operator works.

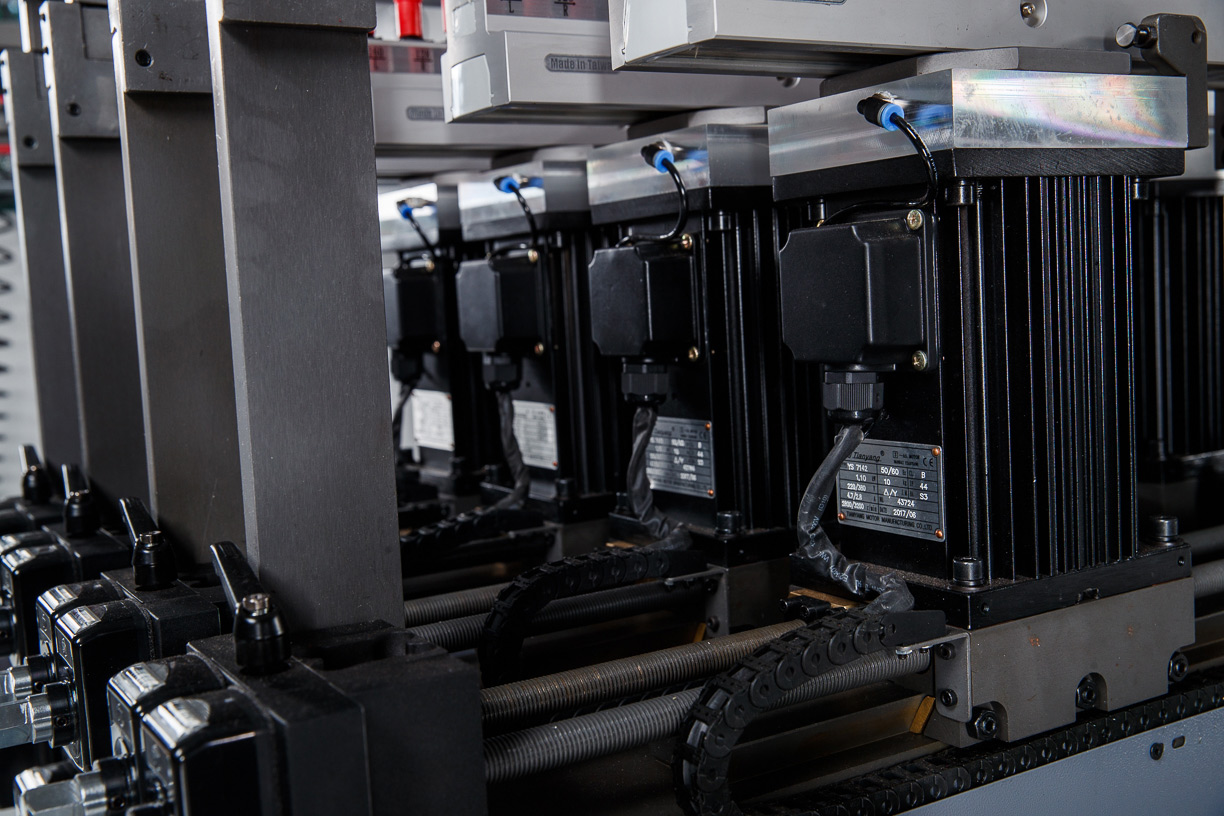

Powerful drilling traverse drives guarantee fast and precise insertion of required mounting holes in workpieces.

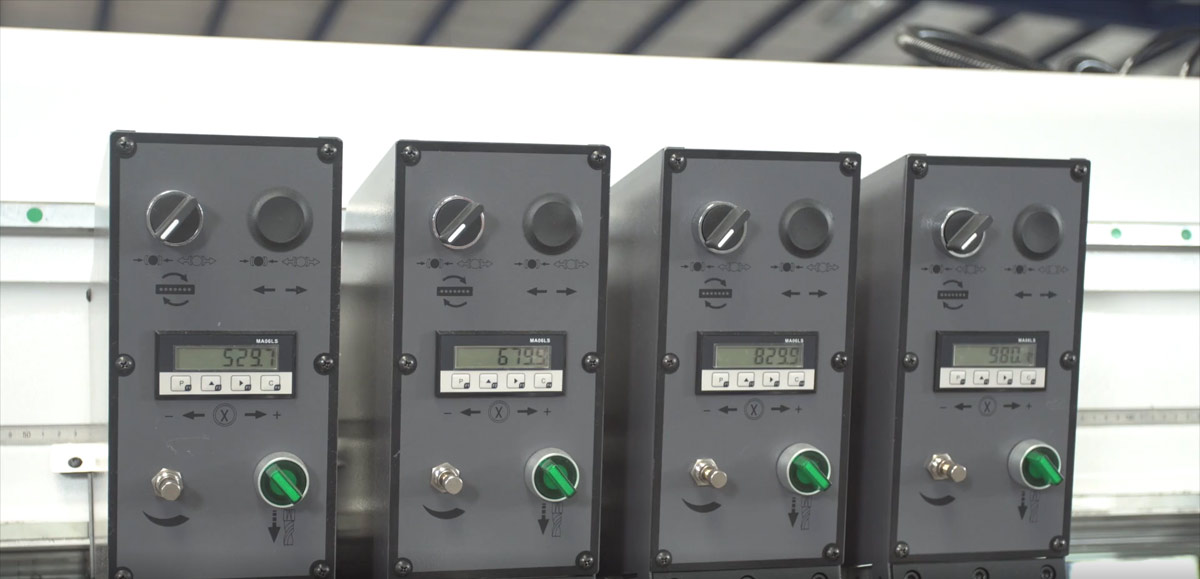

Precise automatic positioning of the upper and lower traverses in accordance with the additive map.

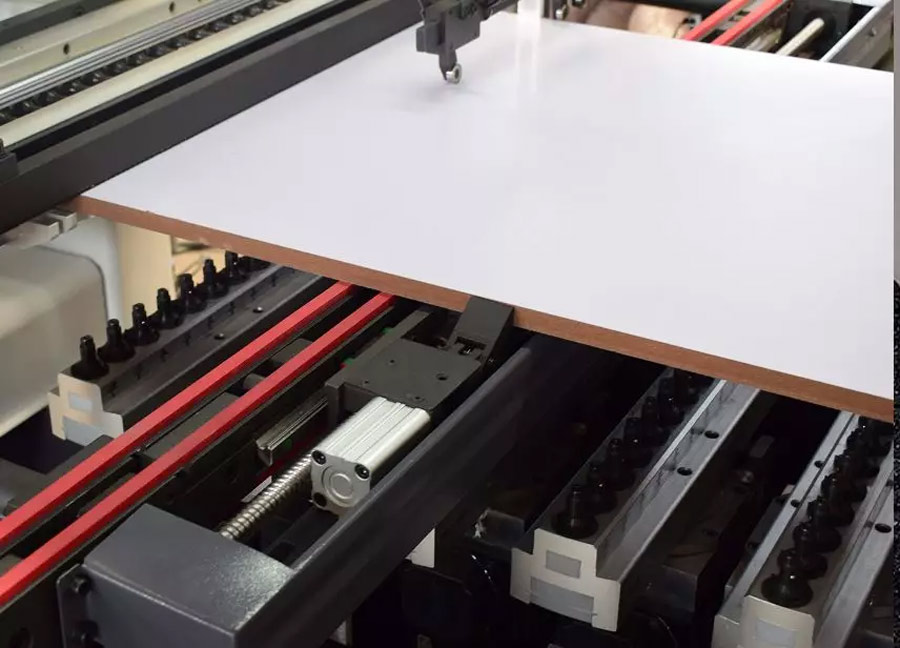

The positioning of the stops along the width of the part according to the technical specifications occurs automatically. This ensures high accuracy and minimum time for reconfiguring the machine from one additive map to another.

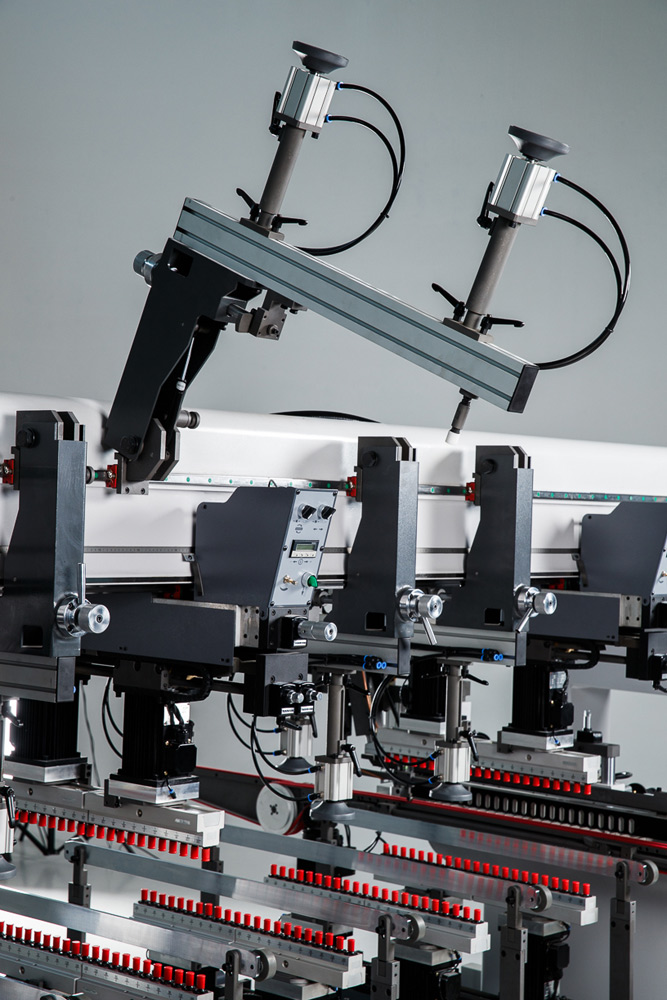

Pneumatic cylinders have the ability to move to adjust to the size of the workpiece, thereby reliably and accurately fix the workpiece in the working area. An additional pair of pneumatic cylinders with the possibility of perpendicular movement is also installed on the machine.
