Automatic drilling machine KDT-6032NS

Purpose

Automatic drilling machine KDT-6032NS with a cassette feed of workpieces, a device for unloading workpieces and the ability to drill three parts at the same time (50-150 mm) is used to drill the necessary mounting holes in the details of cabinet furniture in enterprises and workshops for the production of furniture with serial and mass product release.

Main features

• It is completed with the device of unloading and stacking of preparations.
• Two clamping beams along the entire length of the drilling.
• Cassette feed.
• High productivity up to 12000 parts per shift.
• Drilling 3 parts at the same time.
• Quick-detachable drilling groups with pneumatic fixation of the drilling head.
• Drilling of a detail from three parties.
• Digital counters on the drill groups allow quick and precise changeover from one size to another.
• Possibility of rotation of the drilling group by 90 degrees.
• Powerful reliable drives.
• Industrial control panel with LCD display.
• Impeccable quality and precision processing.

Engineering advantages

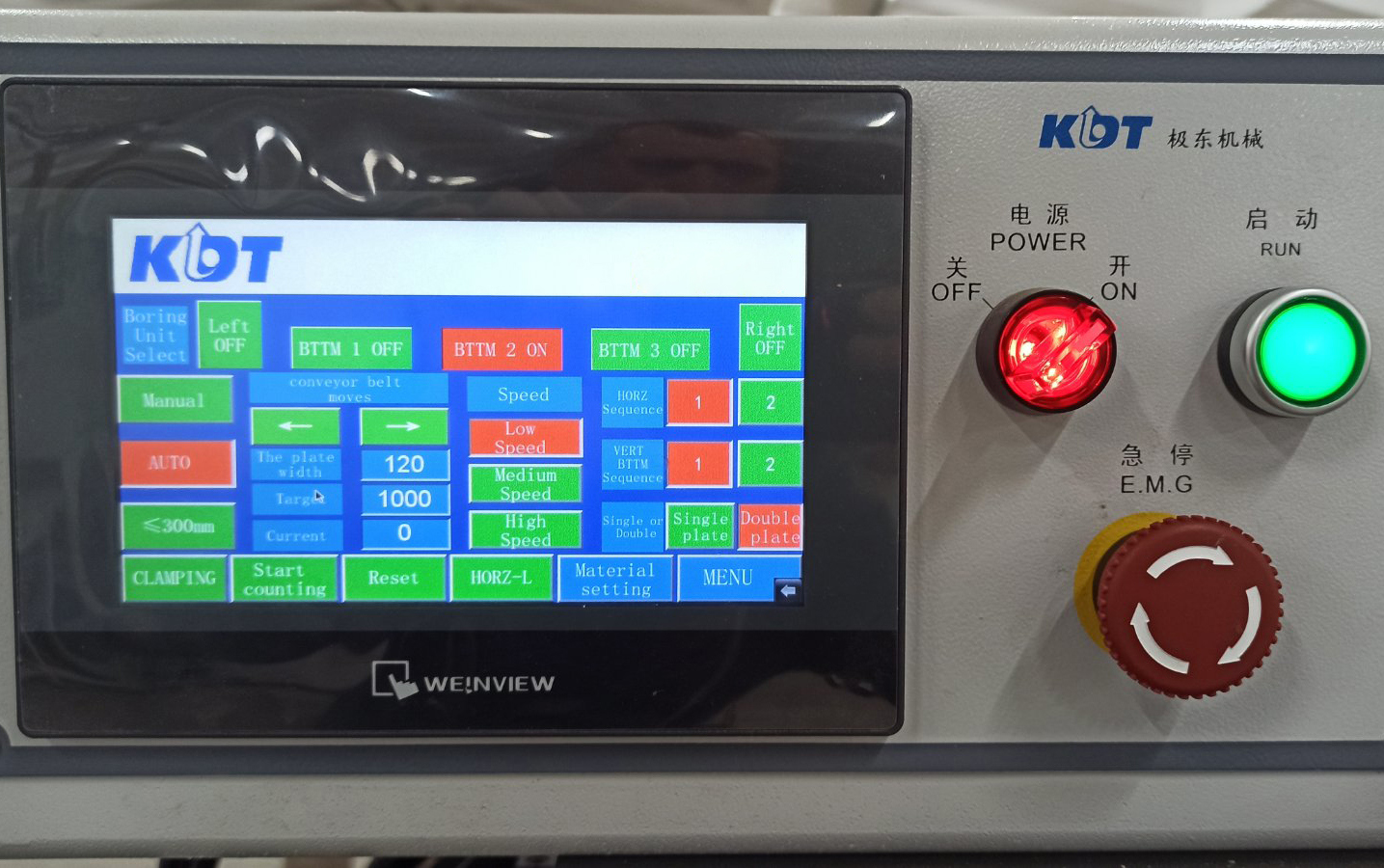

The machine is controlled by an industrial remote control with an LCD display.

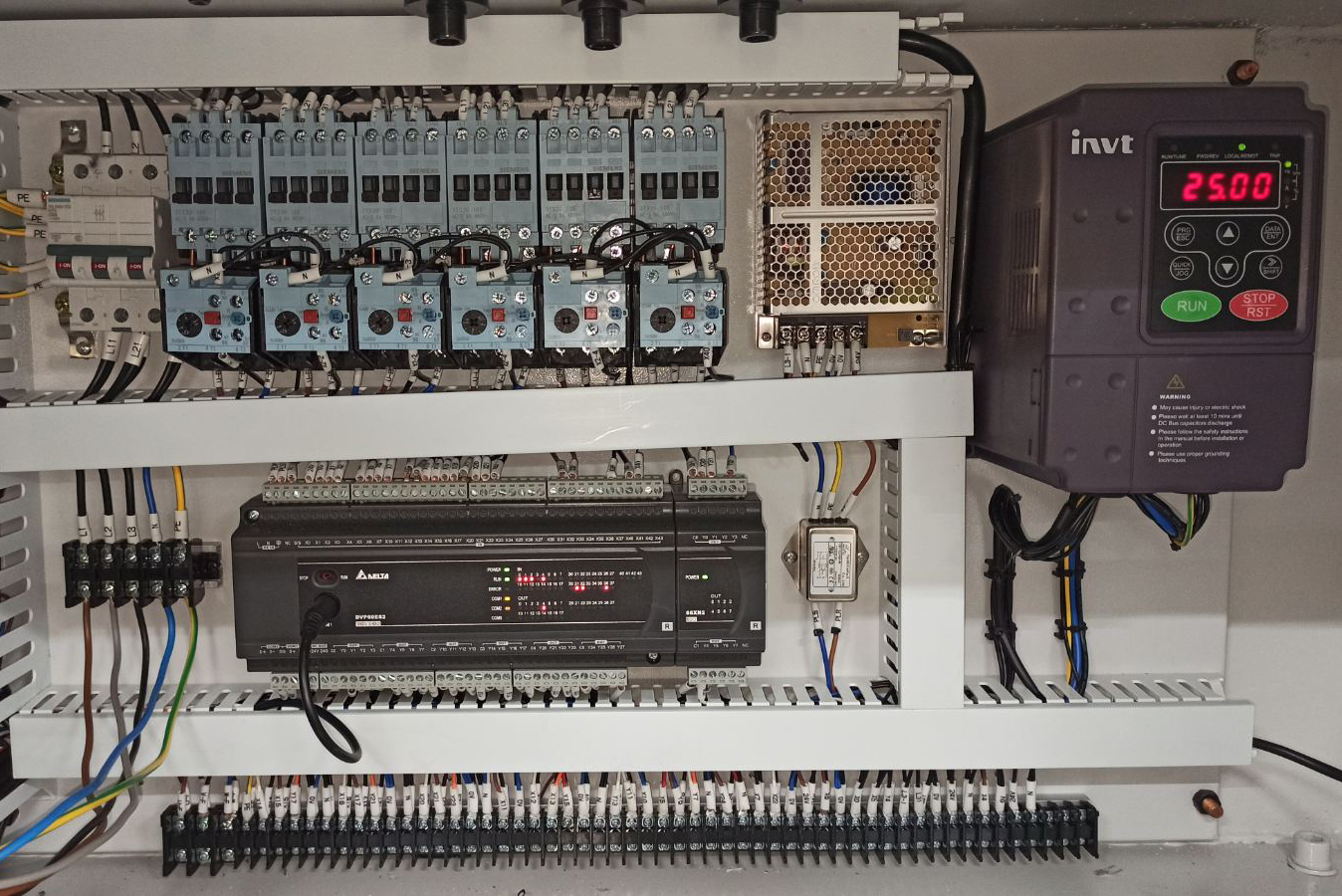

The machine uses the electrical part and electronics from the world's leading brands: DELTA control system (Taiwan), INVT frequency converter, automatic switches and contactors SIEMENS (Germany).

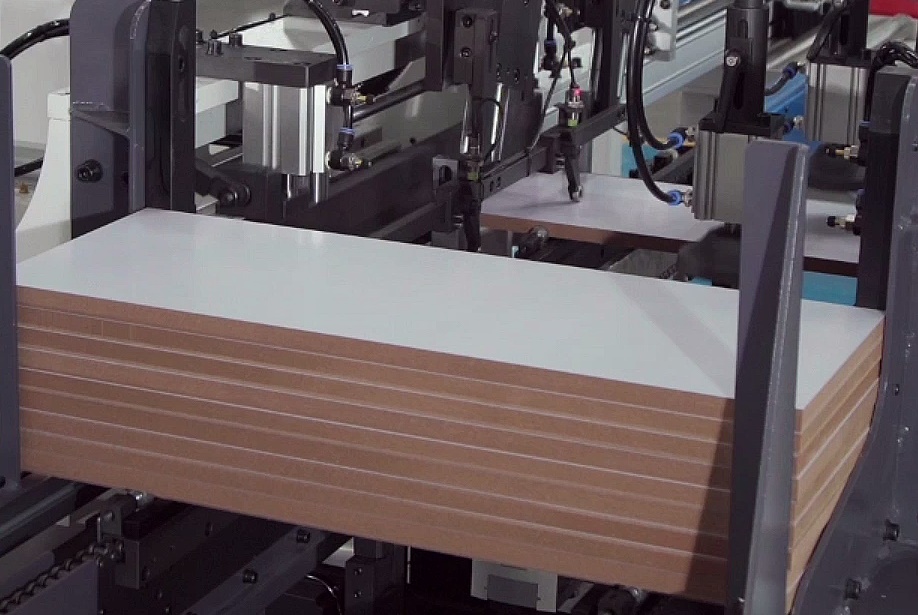

The workpiece supply magazine ensures uninterrupted supply of workpieces to the additive and drilling zone.

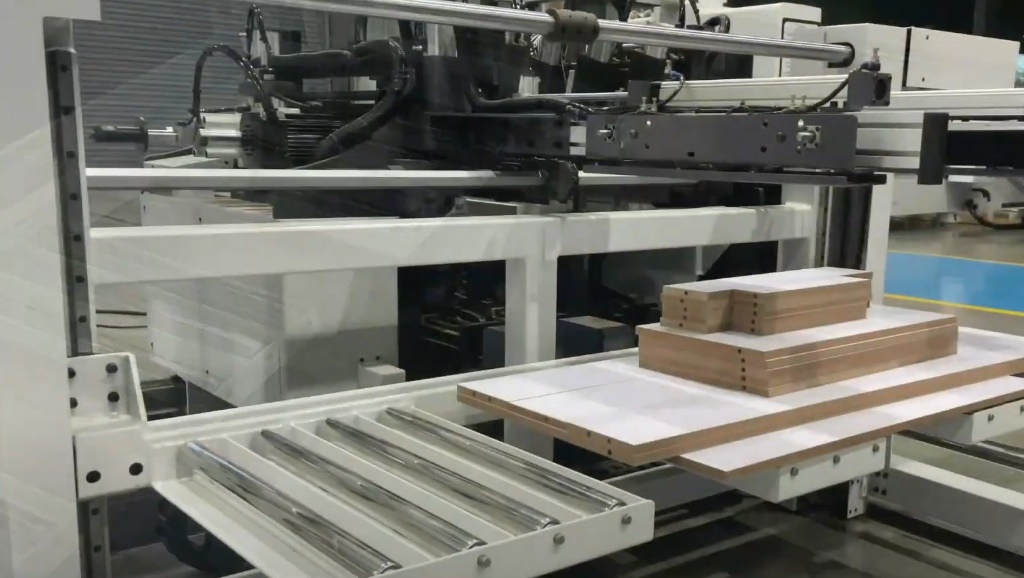

The machine is equipped with a device for unloading and stacking processed workpieces, so that one person can operate the machine.

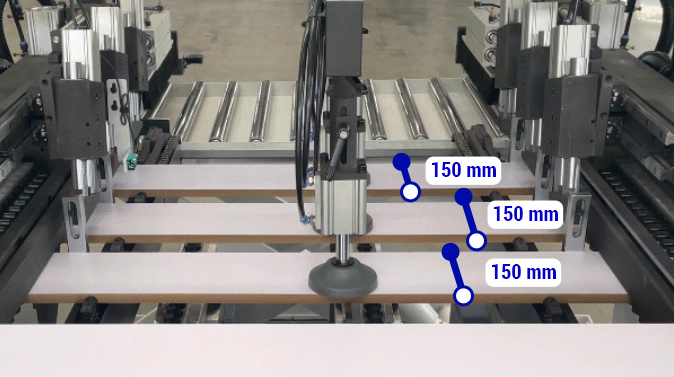

The possibility of simultaneous drilling of three workpieces with a workpiece width of 50 to 150 mm significantly increases the productivity of the machine. Without reconfiguration, the productivity of the machine is up to 8000 parts per shift.

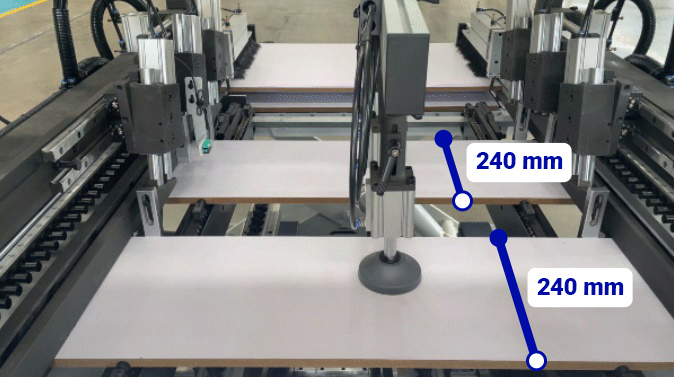

Possibility of simultaneous drilling of two workpieces with workpiece width from 50 to 240 mm.

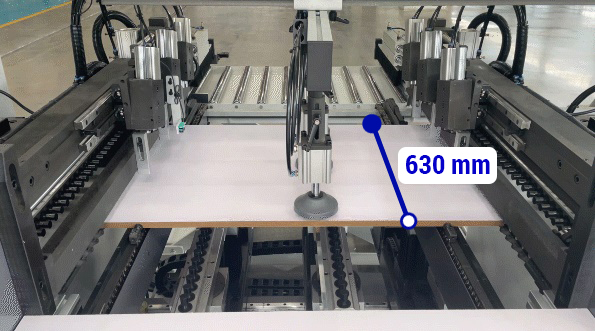

With a part width of 50 to 630 mm, the machine processes one workpiece at a time.

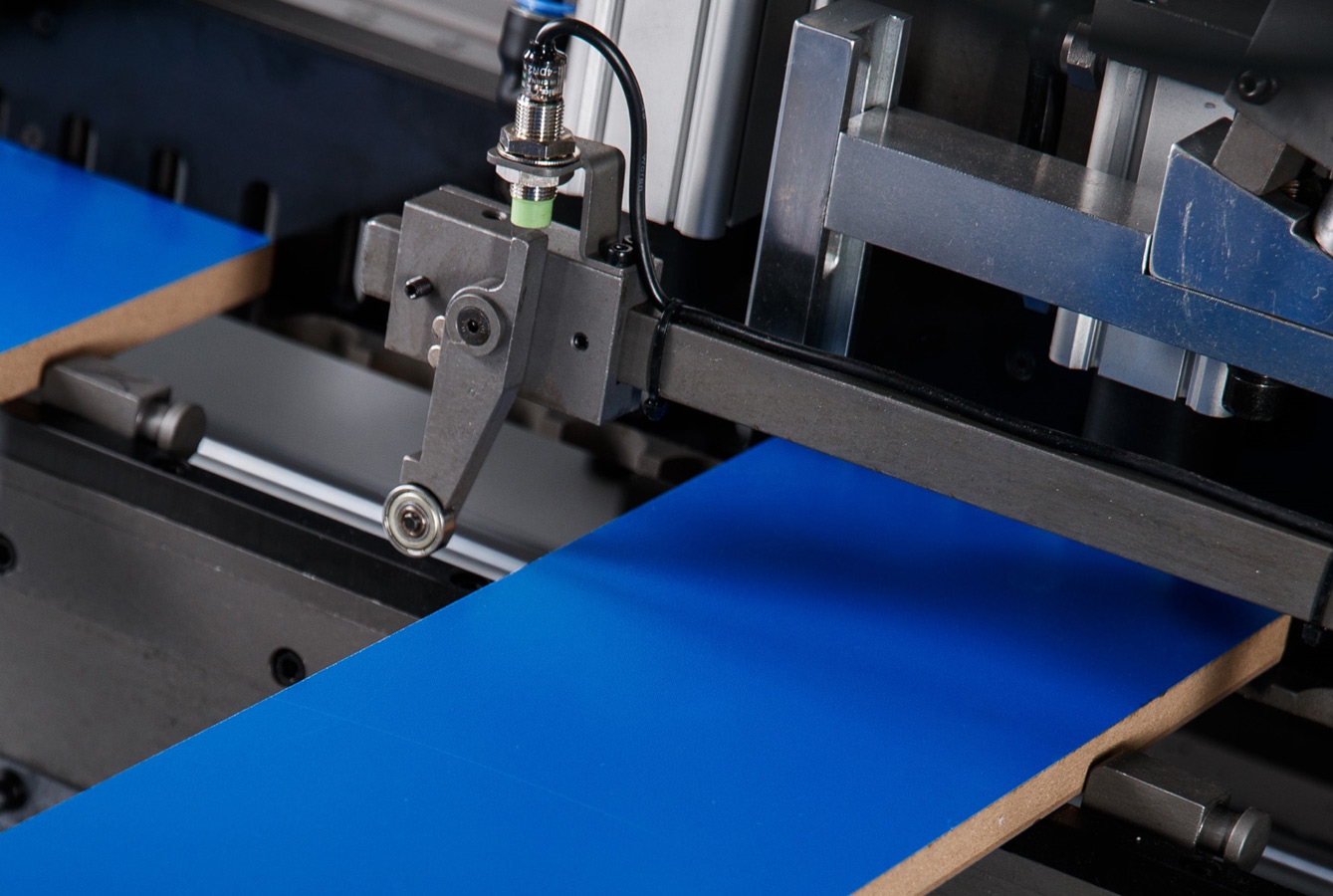

The blanks are fed by a chain conveyor with rigidly fixed pushers, which eliminates the distortion of narrow blanks during feeding. The working part of the pusher has a small stroke for careful fixation of workpieces in the drilling zone.

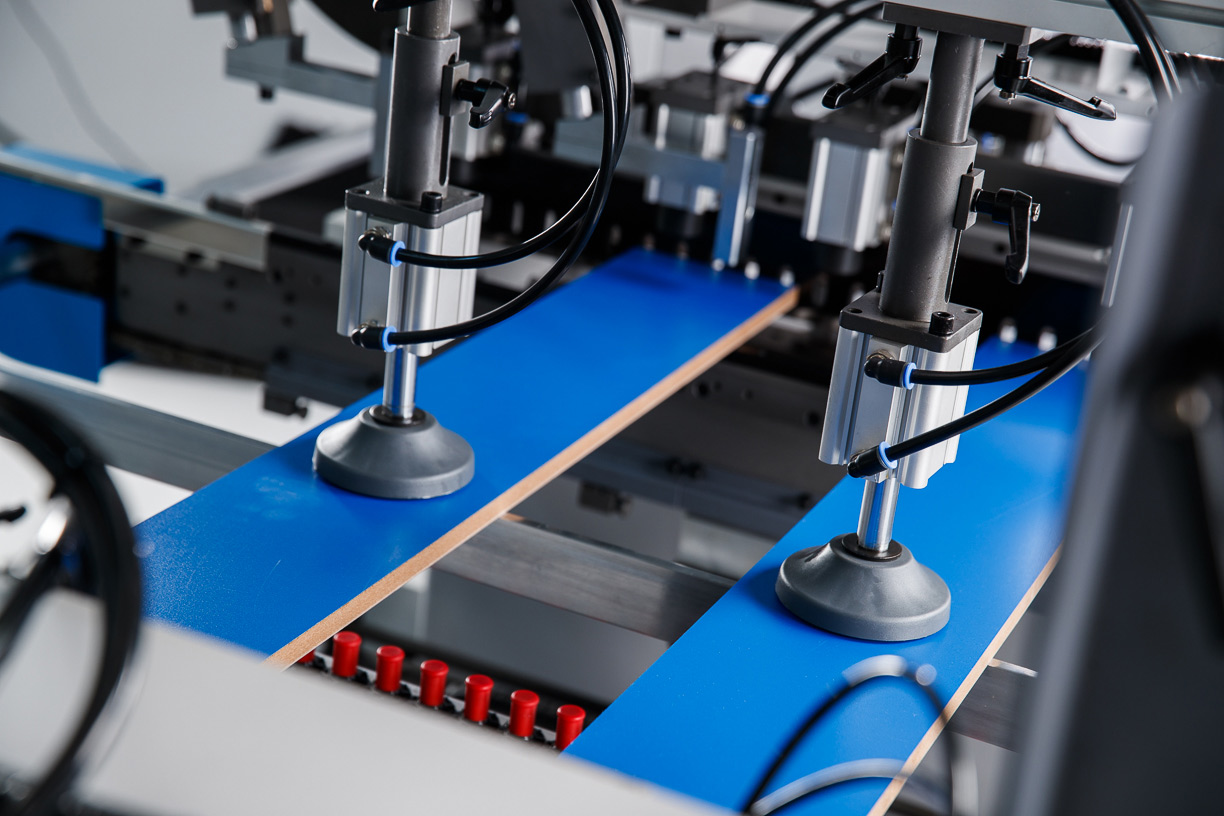

Two central pneumatic cylinders for reliable clamping on the center of the workpiece.

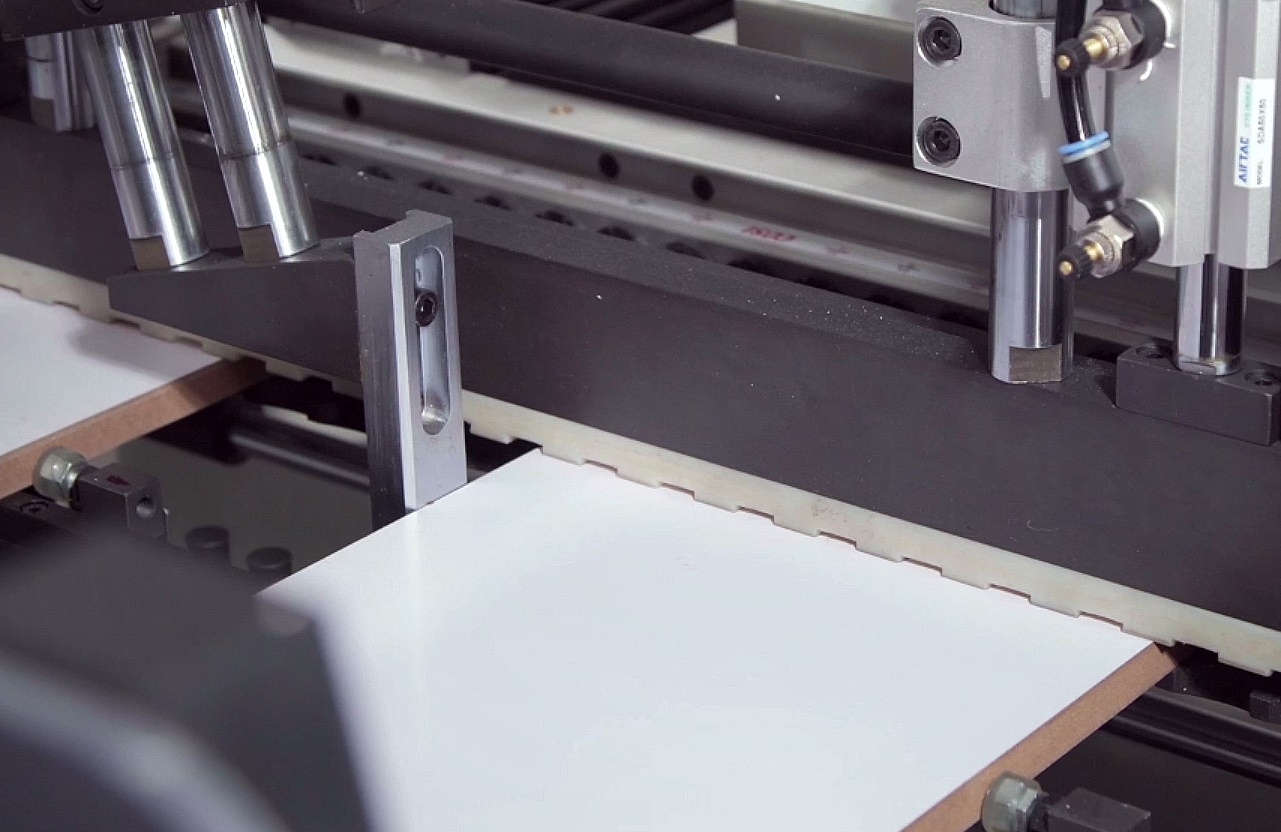

Two side beams along the entire length of the drilling on each side securely and precisely fix the workpieces in the working area.

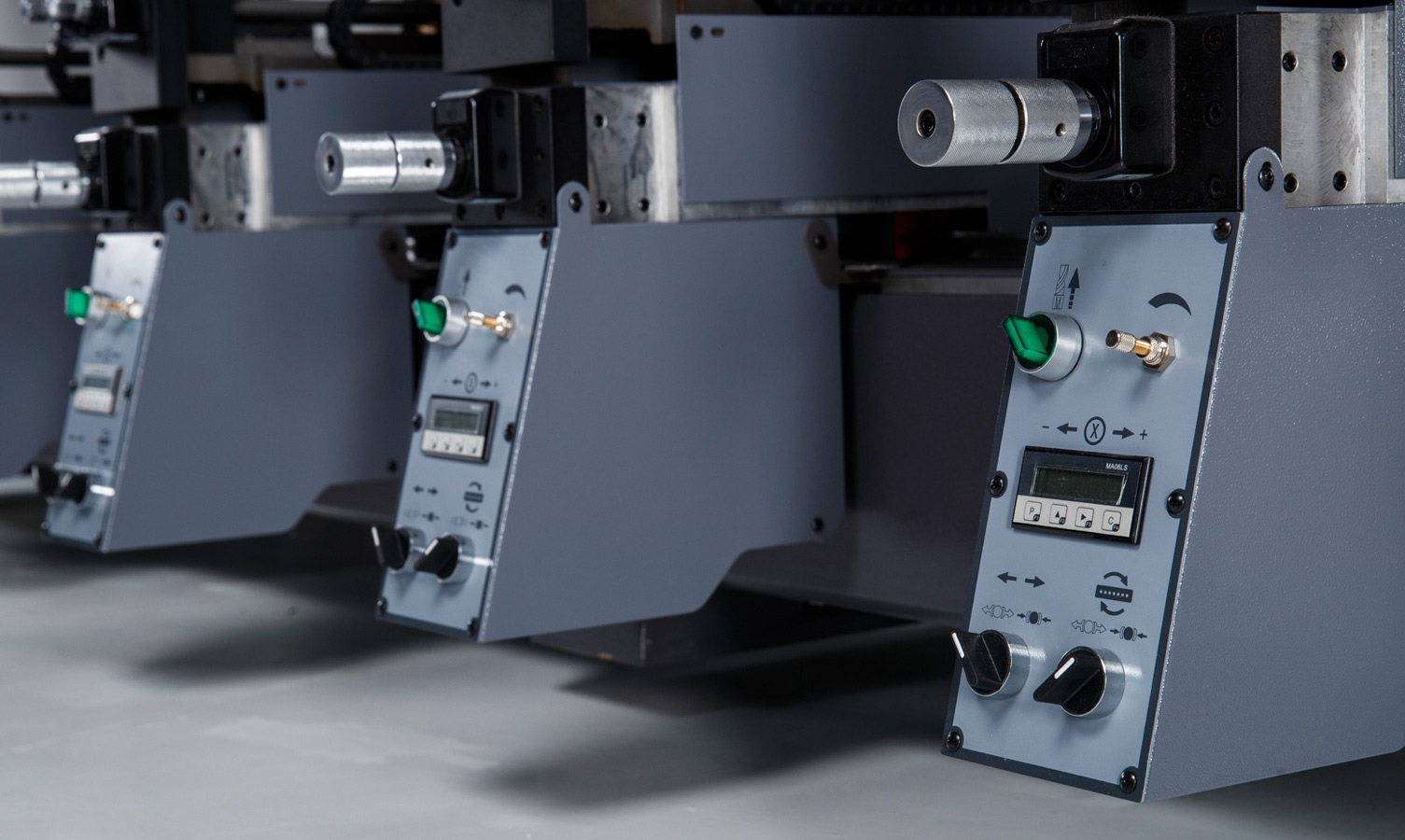

Digital counters on the drill groups allow quick and precise changeover from one size to another.

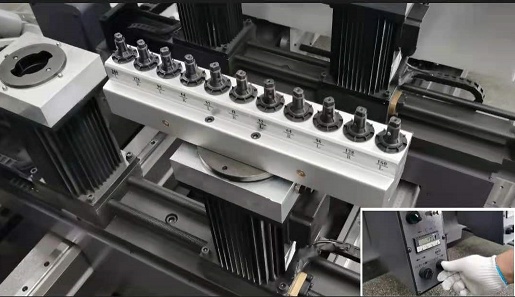

Drilling groups with pneumatic fixation of the drilling head allow quick replacement and adjustment to 0° and 90°. The machine is equipped with two horizontal (end) traverses for 22 spindles and three vertical traverses 11 + 11 with the possibility of rotation.
