Universal edge banding machine KDT-305M for PUR/EVA adhesive
- Removable top glue bath for working with PUR/EVA glue
- Two modes of operation, processing straight/curved parts
- Glue unit for 2 glue shafts with a bottom location of the glue bath
- Large table, height adjustable
- The supply of edging material to the gluing area is carried out automatically from the magazine
- Feed speed from 1 to 10 m/min adjustable by inverter
Note
Product specifications and appearance may change without prior notice.
Purpose
Universal edge banding machine KDT-305M with a quick change system for PUR/EVA glue baths is designed for gluing straight and curved edges of furniture boards and blanks with natural strip and synthetic roll material.
The glue pot is interchangeable with the top pans of KDT edgebanders and is also compatible with the glue pot cleaning and storage system.
Main features
- Removable top glue bath for working with PUR/EVA glue .
- Two modes of operation, processing straight/curved parts with automatic edge cutting and from the pedal.
- The glue unit with the bottom location of the glue bath eliminates the appearance of excess glue on the desktop.
- Large table, height adjustable.
- The edging material is fed into the gluing area automatically from the magazine.
- The feed rate is controlled by the inverter.
- An air preparation unit with a moisture separator and an oiler for automatic lubrication of the entire pneumatic system of the machine.
Engineering advantages

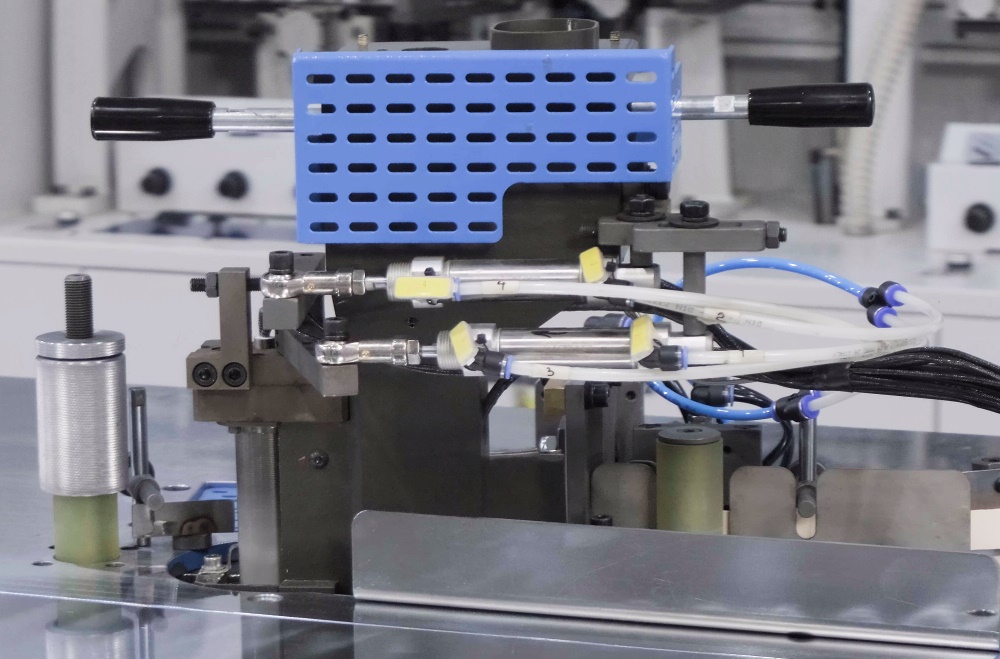

The interchangeable top glue bath allows you to work with PUR/EVA glue and change the color of the glue. The bath is interchangeable with the top baths of KDT edgebanders .
The control panel of the machine is convenient and intuitive, all machine controls are concentrated in one place.
The larger worktable allows for easy edging of larger workpieces.
The infeed table is height-adjustable, allowing it to be adjusted to the edge overhangs.
Edge material supply store.
The powerful and reliable design of the drive of the glue applicator and feed roller guarantees the stable operation of the machine for a long service life.

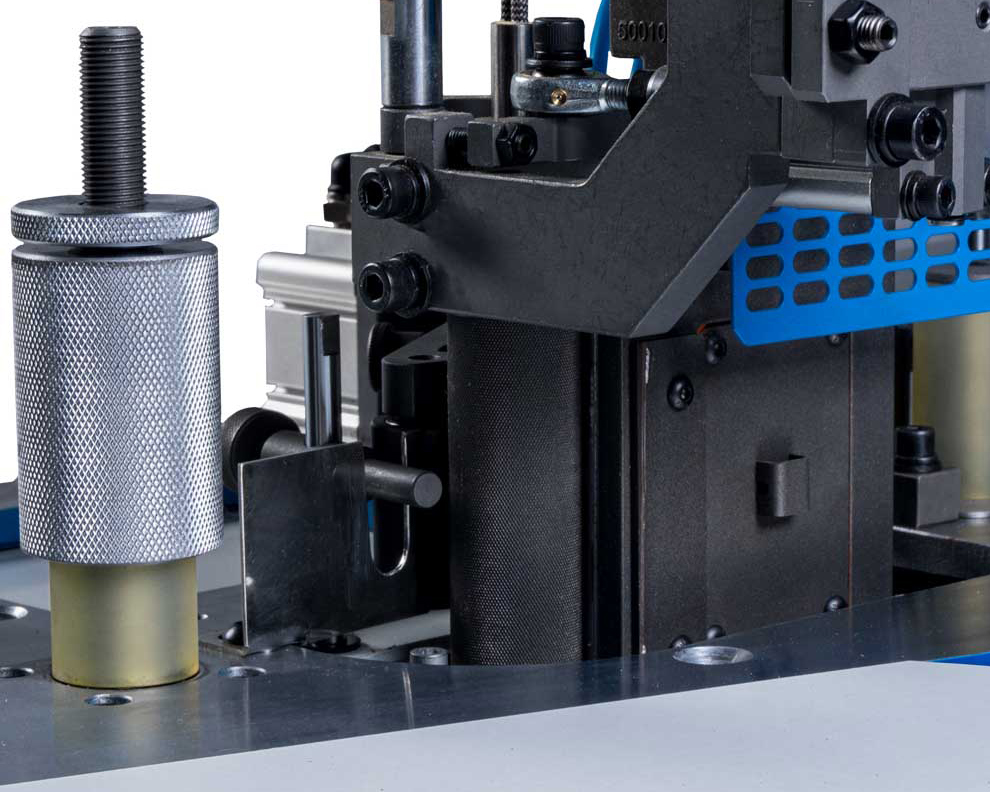

A contact drive roller with adjustable edge position in height allows you to get a high-quality connection between the edge and the workpiece.

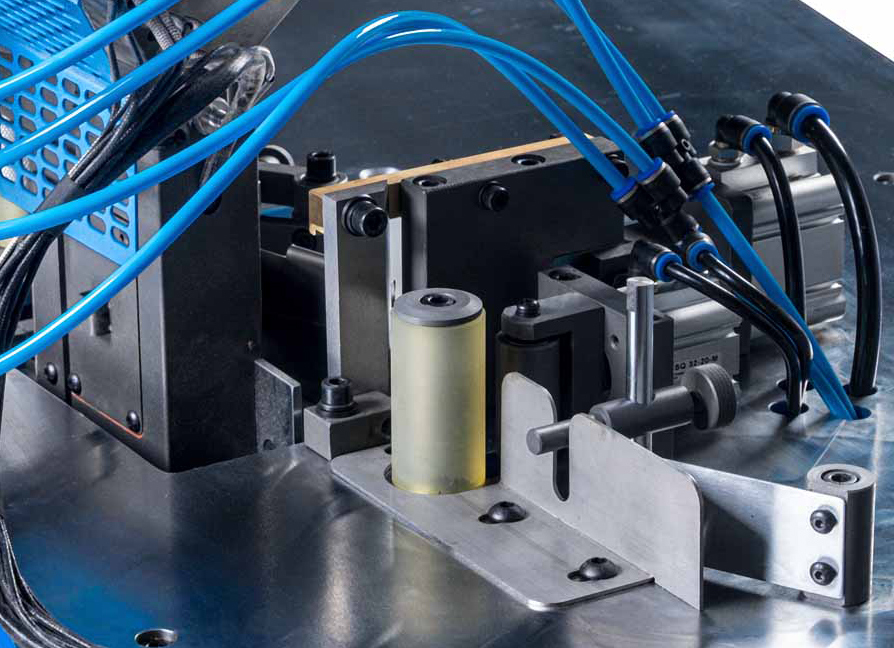

A powerful guillotine allows you to successfully cut the edge to the maximum width.
Pedal for trimming the edge in manual mode.
An air preparation unit with a moisture separator and an oiler for automatic lubrication of the entire pneumatic system of the machine.
Electrical components are made according to CE standards using the best components.
Comparison
Compare key specs across models
Universal edge banding machine KDT-305
|
Universal edge banding machine KDT-305M for PUR/EVA adhesive
|
Universal edge banding machine KDT-305MC for PUR/EVA glue with milling unit and vacuum workpiece fixation
|
|
|---|---|---|---|
| Edge thickness, mm | 0,4-3 | 0,4-3 | 0,4-3 |
| Workpiece thickness, mm | 9-60 | 9-60 | — |
| Curvature radius of the part, mm | 20 | 20 | 20 |
| Table size, mm | 900x900 | 900x900 | — |
| Feed speed, m/min | 1-10 | 1-10 | 1-10 (automatic feed), 1-18 (manual feed) |
| Total power, kW | 2.45 | 2.45 | 5,9 |
| Working pressure, MPa | 0.6 | 0.6 | 0.6 |
| Dimensions LxWxH, mm | 1760x1275x955 | 1760x1275x1192 | 1930x1880x1372 |
| Weight, kg | 280 | 280 | 530 |
| Power supply, V | 380 | 380 | 380 |
| Details | Details | Details |
| Specifications of the edge banding machine | |
| Feed speed, m/min | 1-10 |
| Curvature radius of the part, mm | 20 |
| Table size, mm | 900x900 |
| Edge thickness, mm | 0,4-3 |
| Workpiece thickness, mm | 9-60 |
| Power supply, V | 380 |
| Total power, kW | 2.45 |
| Working pressure, MPa | 0.6 |
| Dimensions LxWxH, mm | 1760x1275x1192 |
| Weight, kg | 280 |
PUR installation
Universal glue pot with top melt glue - this glue pot is designed to use any type of glue ( EVA, PUR ).
Advantages of the glue pot:
- This pot is easy to clean from glue without removing it from the machine. By means of the handles on the glue roller, the return of the glue to the glue pot is blocked and it is drained through the chute into a special container with a Teflon coating.
- Replacing the glue in the glue pot takes no more than 1 hour.
- A heating element installed inside the glue roller prevents temperature loss on the surface of the glue roller.
- If necessary, the pot can be removed from the machine. The time spent on removing the pot is no more than 2 minutes .
