Universal edge banding machine KDT-305

Two modes of operation, processing straight/curved parts
Glue unit for 2 glue shafts with a bottom location of the glue bath
Large table, height adjustable
The supply of edging material to the gluing area is carried out automatically from the magazine
Feed speed from 1 to 10 m/min adjustable by inverter

Product specifications and appearance may change without prior notice.

Purpose

The universal edge banding machine KDT-305 is designed for veneering straight and curved edges of furniture boards and blanks with natural strip and synthetic roll material.

Main features

Two modes of operation, processing straight/curved parts with automatic edge cutting and from the pedal.
The glue unit with the bottom location of the glue bath eliminates the appearance of excess glue on the desktop.
Large table, height adjustable.
The edging material is fed into the gluing area automatically from the magazine.
The feed rate is controlled by the inverter.
An air preparation unit with a moisture separator and an oiler for automatic lubrication of the entire pneumatic system of the machine.

Engineering advantages

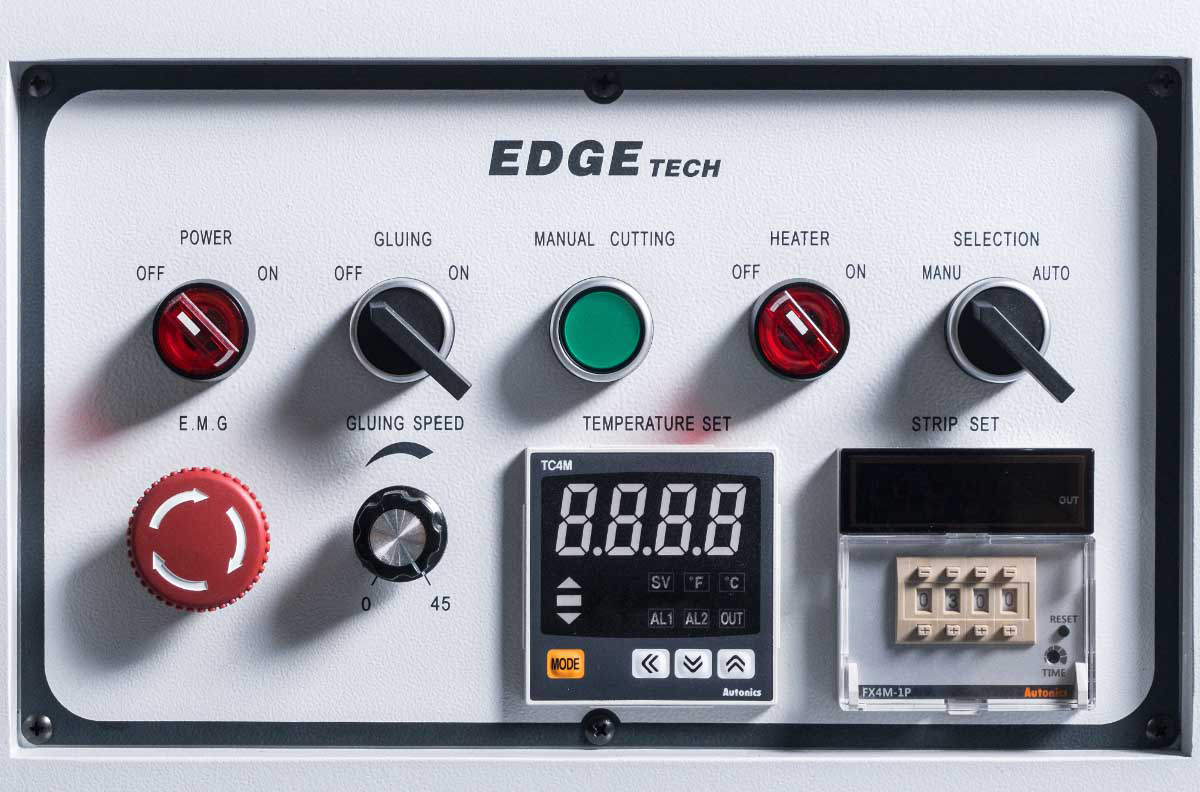

The machine control panel is convenient and intuitive, all machine controls are concentrated in one place.

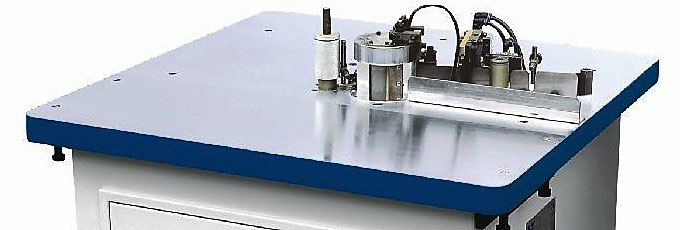

The larger worktable allows for easy edging of larger workpieces.

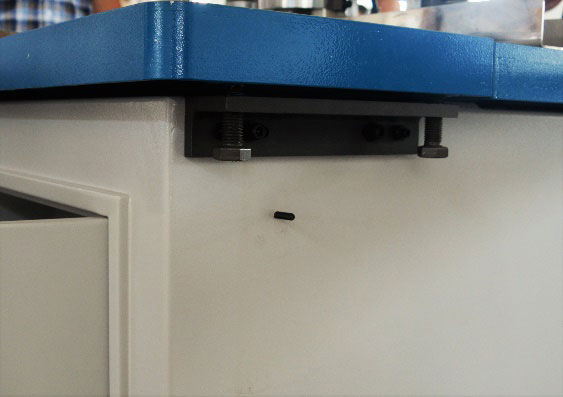

The infeed table is height-adjustable, allowing it to be adjusted to accommodate edge overhangs.

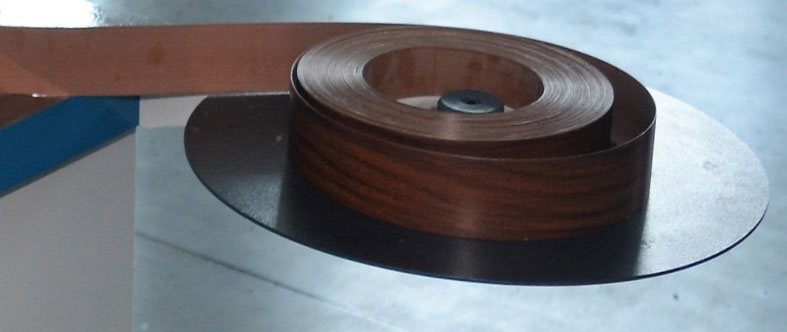

Edge material supply store.

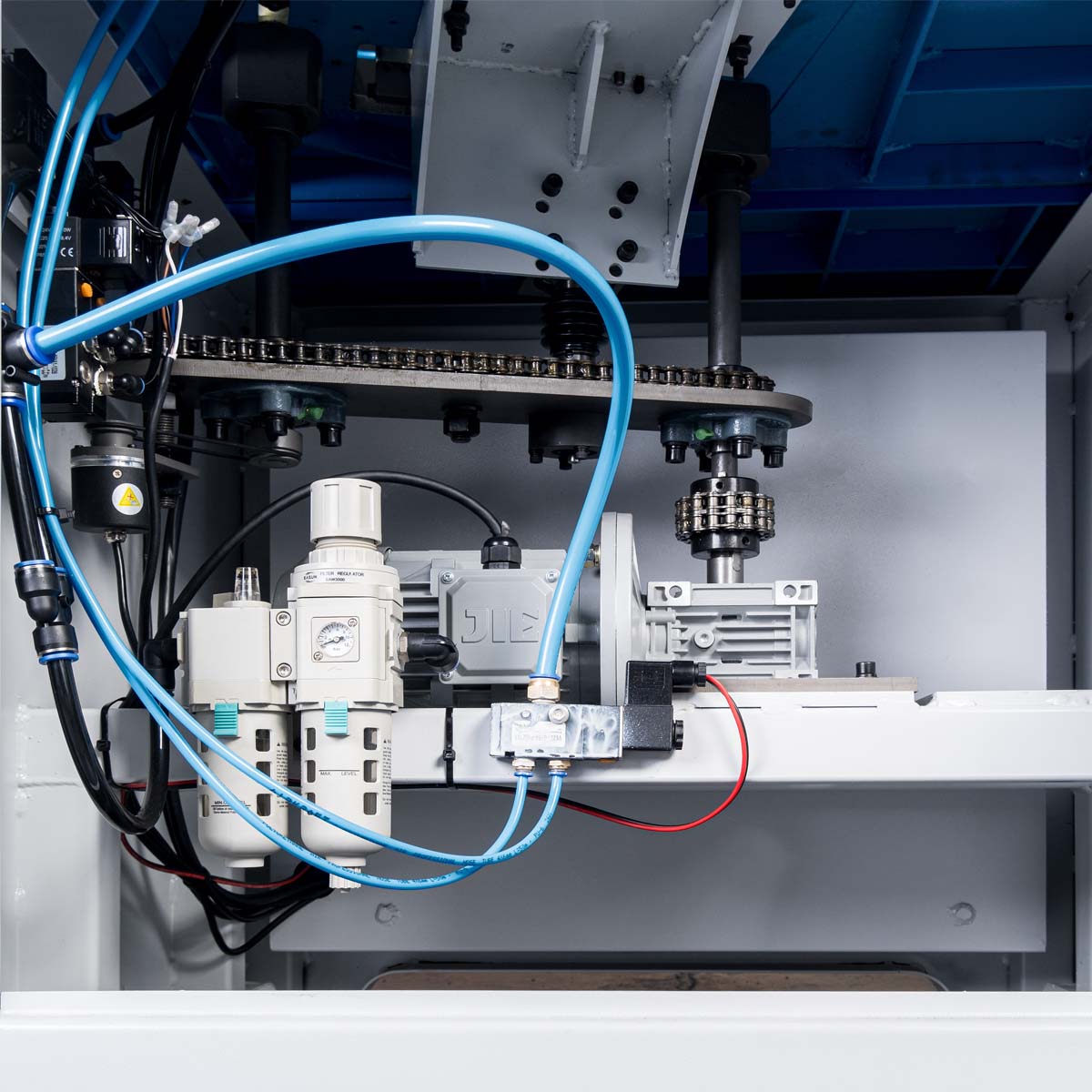

The powerful and reliable design of the drive of the glue applicator and feed roller guarantees the stable operation of the machine for a long service life.

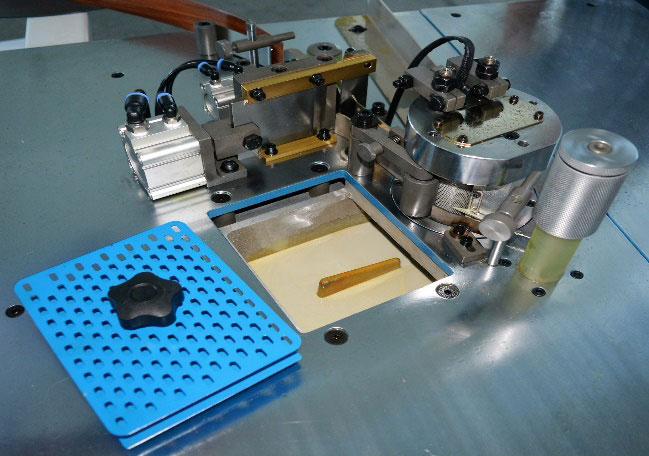

The lower location of the glue bath eliminates the appearance of excess glue on the desktop.

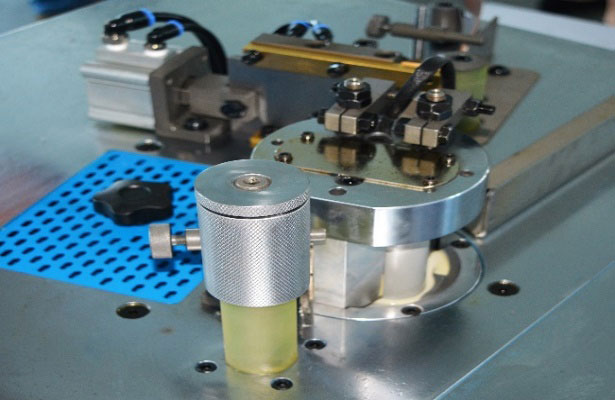

A contact drive roller with adjustable edge position in height allows you to get a high-quality connection between the edge and the workpiece.

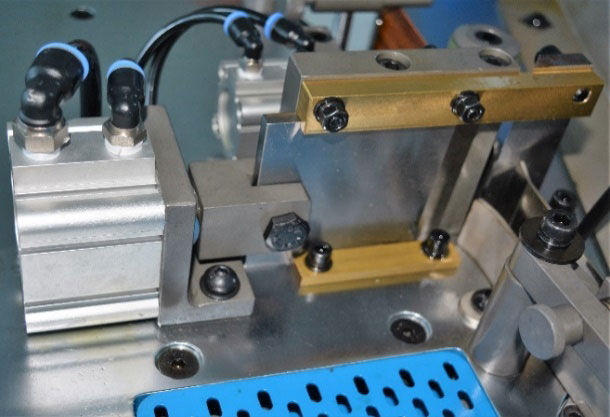

A powerful guillotine allows you to successfully cut the edge to the maximum width.

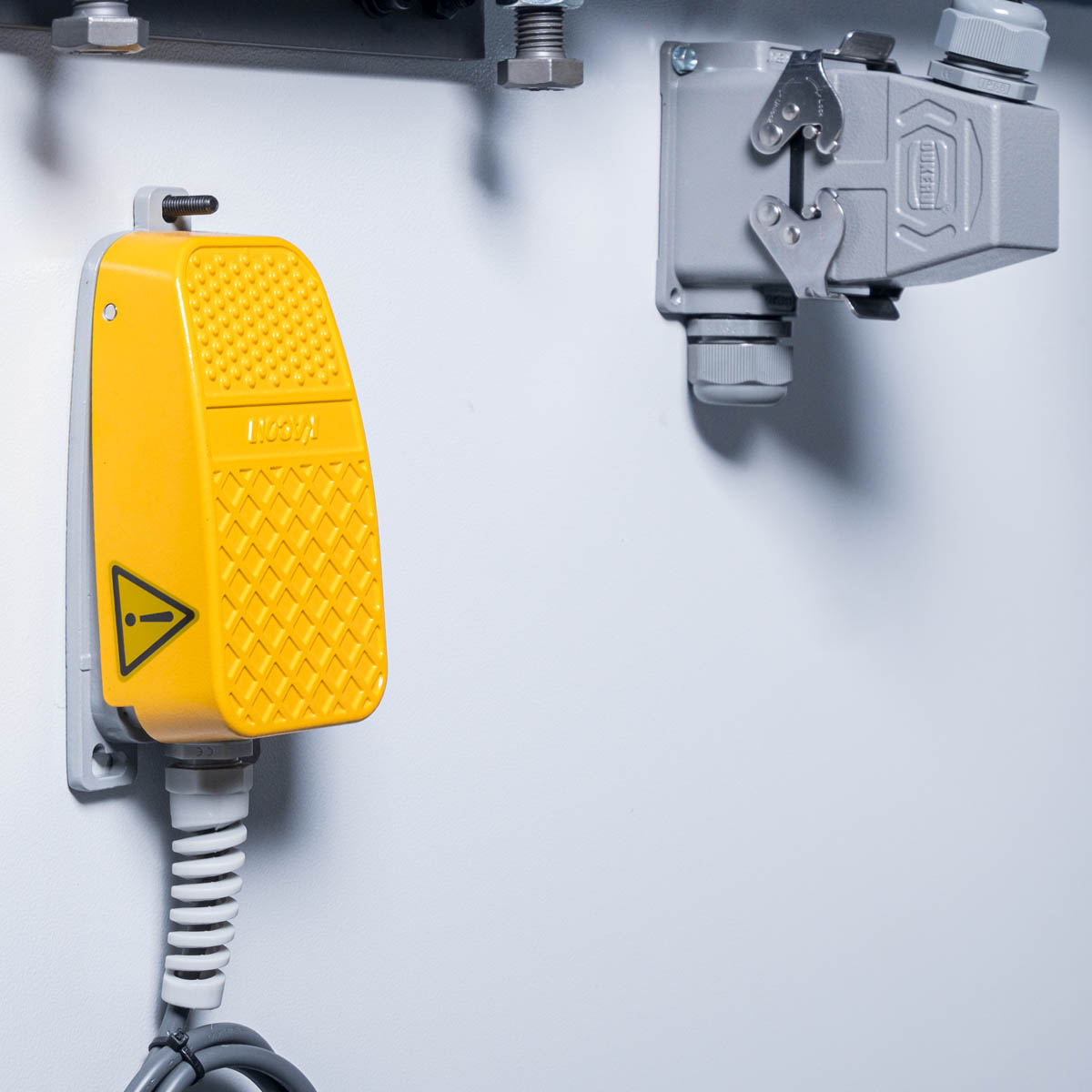

Pedal for trimming the edge in manual mode.

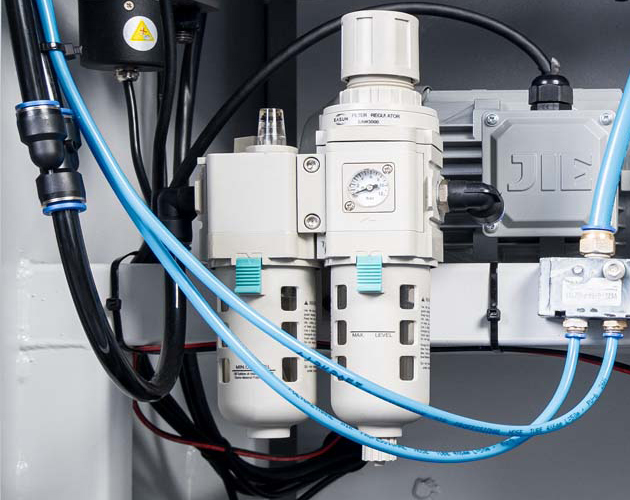

An air preparation unit with a moisture separator and an oiler for automatic lubrication of the entire pneumatic system of the machine.

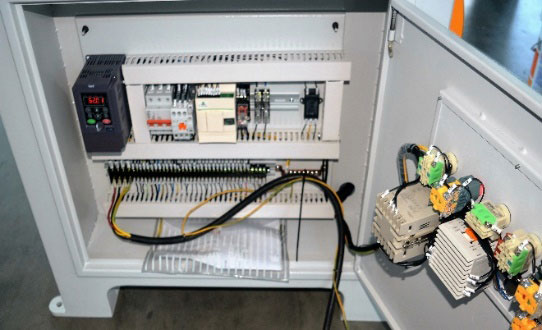

Electrical components are made according to CE standards using the best components.

Comparison

Compare key specs across models

	Universal edge banding machine KDT-305	Universal edge banding machine KDT-305M for PUR/EVA adhesive	Universal edge banding machine KDT-305MC for PUR/EVA glue with milling unit and vacuum workpiece fixation
Edge thickness, mm	0,4-3	0,4-3	0,4-3
Workpiece thickness, mm	9-60	9-60	—
Curvature radius of the part, mm	20	20	20
Table size, mm	900x900	900x900	—
Feed speed, m/min	1-10	1-10	1-10 (automatic feed), 1-18 (manual feed)
Total power, kW	2.45	2.45	5,9
Working pressure, MPa	0.6	0.6	0.6
Dimensions LxWxH, mm	1760x1275x955	1760x1275x1192	1930x1880x1372
Weight, kg	280	280	530
Power supply, V	380	380	380
	Details	Details	Details

Specifications of the edge banding machine
Feed speed, m/min	1-10
Curvature radius of the part, mm	20
Table size, mm	900x900
Edge thickness, mm	0,4-3
Workpiece thickness, mm	9-60
Power supply, V	380
Total power, kW	2.45
Working pressure, MPa	0.6
Dimensions LxWxH, mm	1760x1275x955
Weight, kg	280

PUR installation

Universal glue pot with top melt glue - this glue pot is designed to use any type of glue ( EVA, PUR ).

Advantages of the glue pot:

This pot is easy to clean from glue without removing it from the machine. By means of the handles on the glue roller, the return of the glue to the glue pot is blocked and it is drained through the chute into a special container with a Teflon coating.
Replacing the glue in the glue pot takes no more than 1 hour.
A heating element installed inside the glue roller prevents temperature loss on the surface of the glue roller.
If necessary, the pot can be removed from the machine. The time spent on removing the pot is no more than 2 minutes .
