Sliding table saw KS-132K

Purpose

Sliding table panel saw KS-132K with a servo drive is designed for fine cutting of sheet material (LDSTP, MDF, plywood, glued solid wood panels, plastics, etc.) into blanks according to specified dimensions. It is recommended for enterprises producing furniture and joinery, it is allowed to use it in multi-shift operation.

Main features

• Rip fence with servomotor for setting the size;
• A digital counter is installed on the transverse stop;
• Roller carriage - guarantees the highest quality of cutting, no backlash when the carriage moves, smoothness and ease of movement for the entire life of the machine;
• The large metal consumption of the saw unit significantly increases the durability of the units, since there is practically no vibration on them;
• Powerful saw carriage, made of aluminum multi-cellular profile with a working part width of 430 mm;
• Own electric motors for the scoring and main saw 1.1 / 5.5 kW, allow the machine to be used in multi-shift operation and dissolve various materials;
• Electric lifting and lowering of the main saw blade;
• Eccentric clamp for reliable fixation of the material in the cutting area;
• The transparent CE aspiration protective cover for saw blades allows you to visually control the sawing process, as well as effectively remove sawdust from the cutting zone.

Engineering advantages

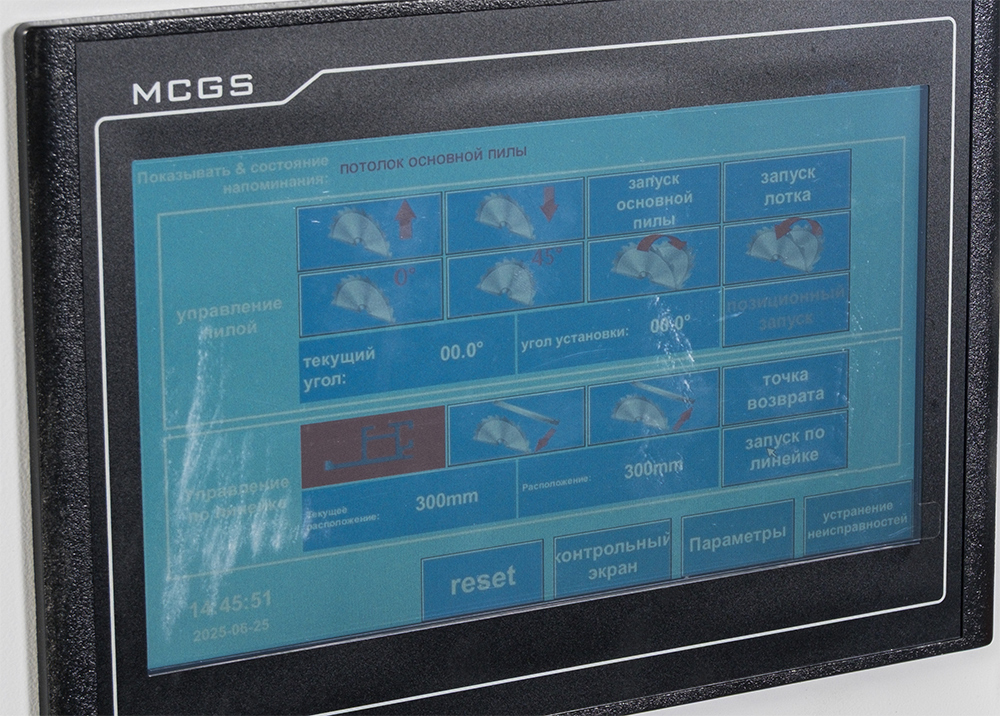

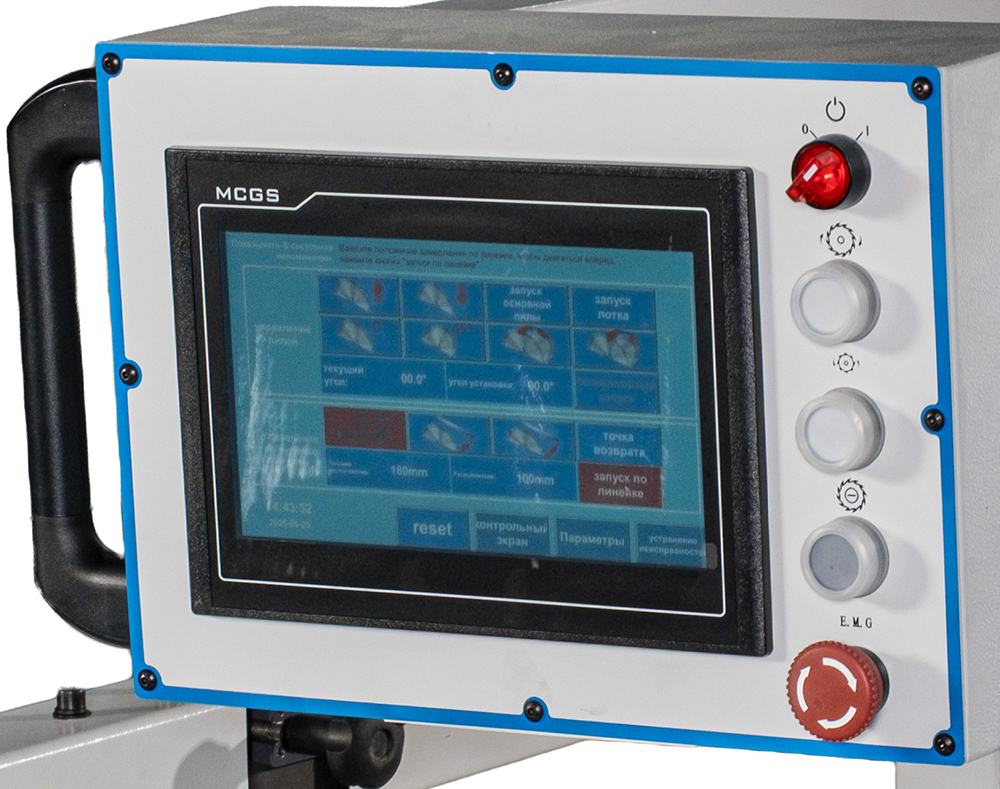

The touch screen control system (TouchScreen) provides the maximum convenience of work on the machine.

The control of the parallel fence (setting the cutting width) is also carried out from the remote control. Accuracy and smooth movement of the stop is ensured by the Delta servomotor (Taiwan) and high-precision ball screw Hiwin (Taiwan). Stop travel speed up to 15 m/min.

Roller carriage - guarantees the highest quality of cutting, no backlash when moving the carriage, smoothness and ease of movement for the entire life of the machine.

The large metal consumption of the saw unit significantly increases the durability of the units, since there is practically no vibration on them. Manually Variable One Way Tilt Drives: These motors are custom built to KDT specifications and optimized for panel saw applications. Units with two speeds - 4000-5000 rpm, speeds are switched manually.

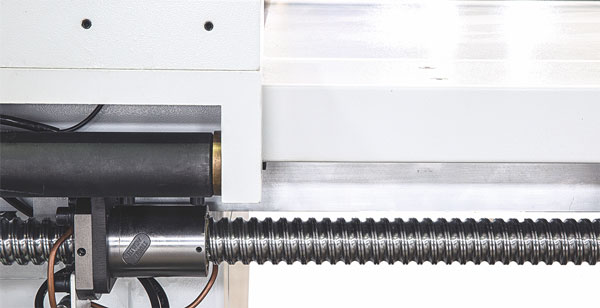

Parallel stop controlled by a servo. Accuracy and smoothness of stop movement is ensured by Delta servomotor (Taiwan) and high-precision Hiwin ball screw (Taiwan). Stop travel speed up to 15 m/min.

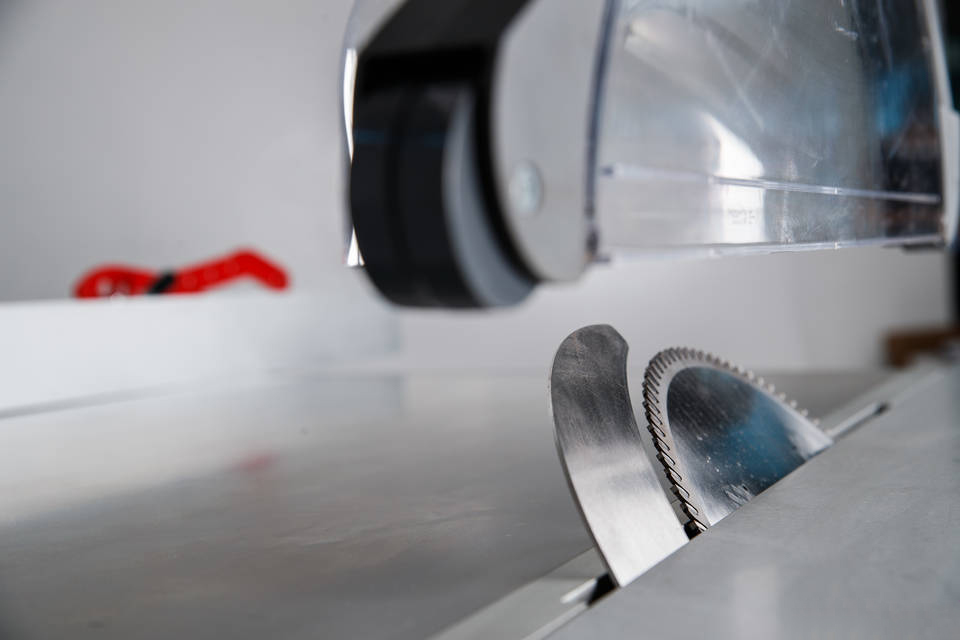

Electronic saw blade tilt 0 – 45°.

Linear bearings and guides from the Taiwanese company HIWIN. One of the main directions of HIWIN is the production of high-quality linear motion systems - carriages, guides, rails, linear bearings.

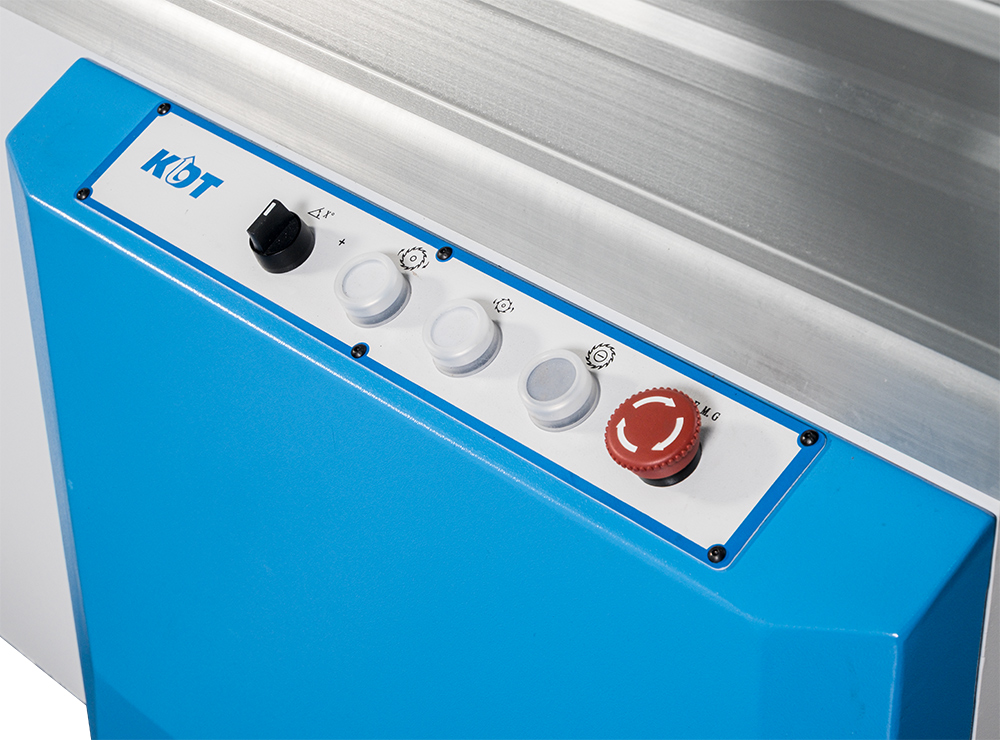

An additional control panel on the frame allows you to quickly turn on and off the motors of the main and scoring saws, as well as adjust the angle of inclination. To ensure safety, both control panels are equipped with emergency stop buttons.

Horizontal adjustment knob for the scoring saw.

The convenient handle of adjustment of a scoring saw on height, allows to carry out fast adjustment of knot.

Full-format additional tables allow you to open sheets of various sizes.

The transverse stop (ruler) is equipped with two folding stops-flags, one of which has an electronic digital display for quick and precise adjustment to the required size.

If required, the crosscut fence can be rotated from 0 - 45° for miter cuts.

Angle ruler on the saw carriage for angled cuts.

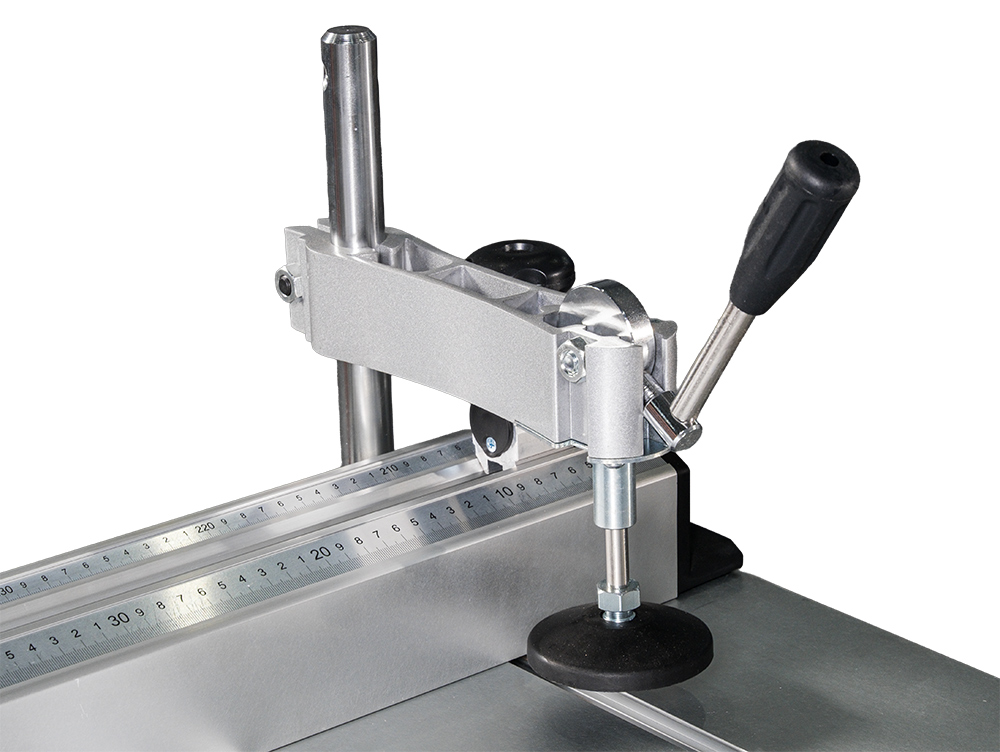

Eccentric clamp for reliable fixation of the material in the cutting area.

Pusher for safe work with narrow workpieces. The maximum distance from the saw blade to the parallel stop is 1250 mm.

The transparent CE guard provides visual control of the cut, as well as excellent removal of sawdust from the cutting area.

The machine bed was developed taking into account CAD programs, where the maximum allowable loads and requirements for the machine design were calculated and simulated. The welded frame is tempered to relieve all internal stresses in the material, then processing takes place on a five-axis metalworking machine, where all platforms and holes for mounting components and assemblies are milled.

The centralized lubrication system lubricates all units and assemblies that require maintenance.

The blow gun is supplied as standard with the machine.

The machine is completed with the Leitz cutting tool.

Tool kit for machine maintenance.
