CNC Drilling Center KD-610XHZ

Purpose

CNC drilling center KD-610XHZ with automatic dowel insertion unit, two drilling groups at the top and bottom for drilling from 6 sides and a grooving saw (workpiece size 1000 * 2800 mm), two milling spindles and a linear tool change of 5 positions is designed for high-precision drilling through and blind holes in the ends and planes of furniture panels, which allows processing any additive maps in one pass of the part. The machine is equipped with two milling units for milling both simple straight grooves, such as a groove for the back wall or the bottom of a box, and profiling.

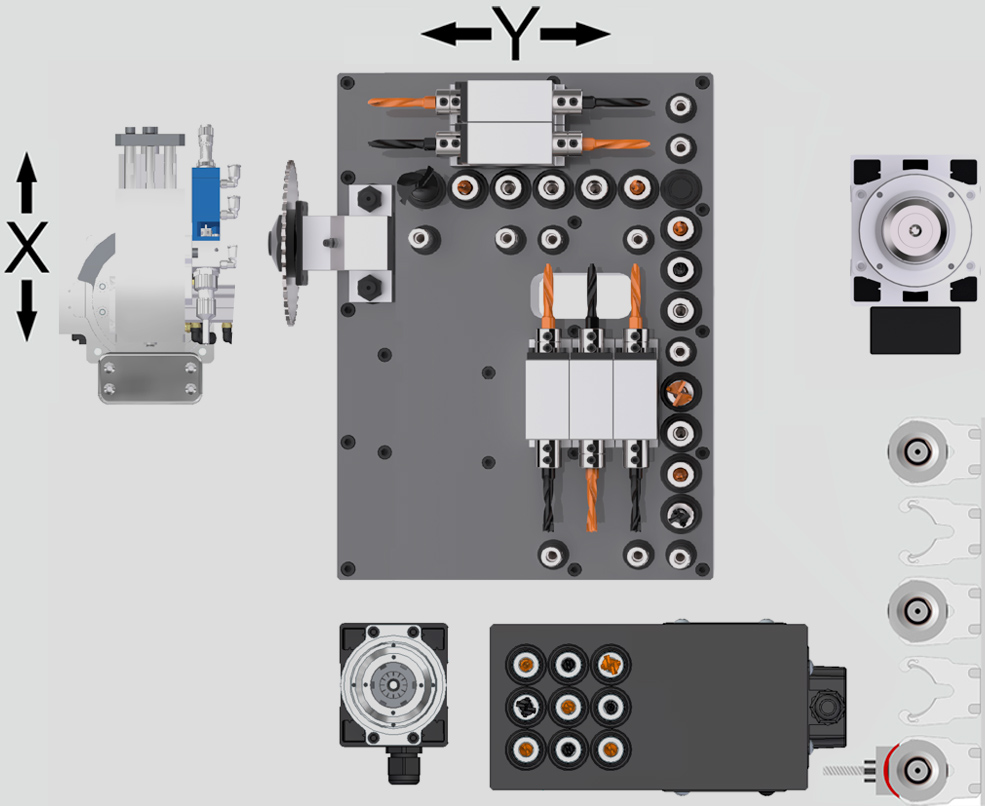

Scheme of drilling groups

Distinctive features

• Automatic dowel insertion unit;
• Ability to work with optimizer programs with drilling maps;
• Two milling units as standard;
• Linear tool change with 5 positions for the upper milling unit;
• High processing speed: 140/90/50 m/min;
• Grooving unit - saw 120 mm;
• Drilling from 6 sides;
• Additive of small parts from 70x30 mm;
• Automatic lubrication of X and Y travel guides;
• Compact dimensions and saving up to 22% of production space;
• Visualization of the processing of a double-sided additive map;
• Batch drilling mode is enabled;
• Scanner for reading the additive card by barcode.

Design advantages

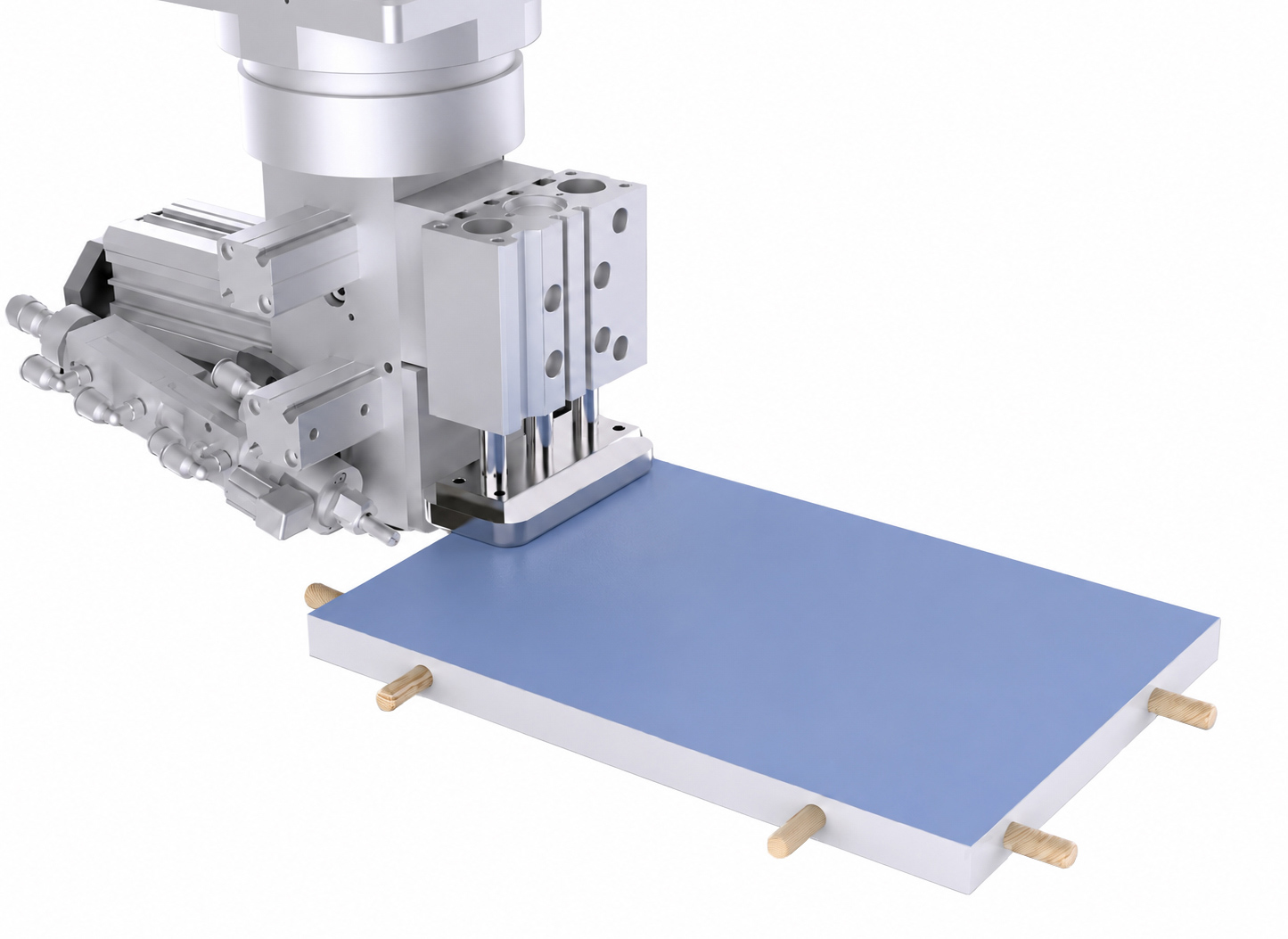

The automatic dowel insertion unit performs the complete dowel fitting cycle: dowel feeding, glue application into the hole, and dowel pressing to the required depth. Dowels are fed from the hopper, automatically oriented, and delivered one by one to the insertion area. The system precisely doses the glue, ensuring consistent joint quality and reducing material consumption. Thanks to automatic positioning, the dowel is inserted evenly and without misalignment, improving the accuracy of furniture part assembly.

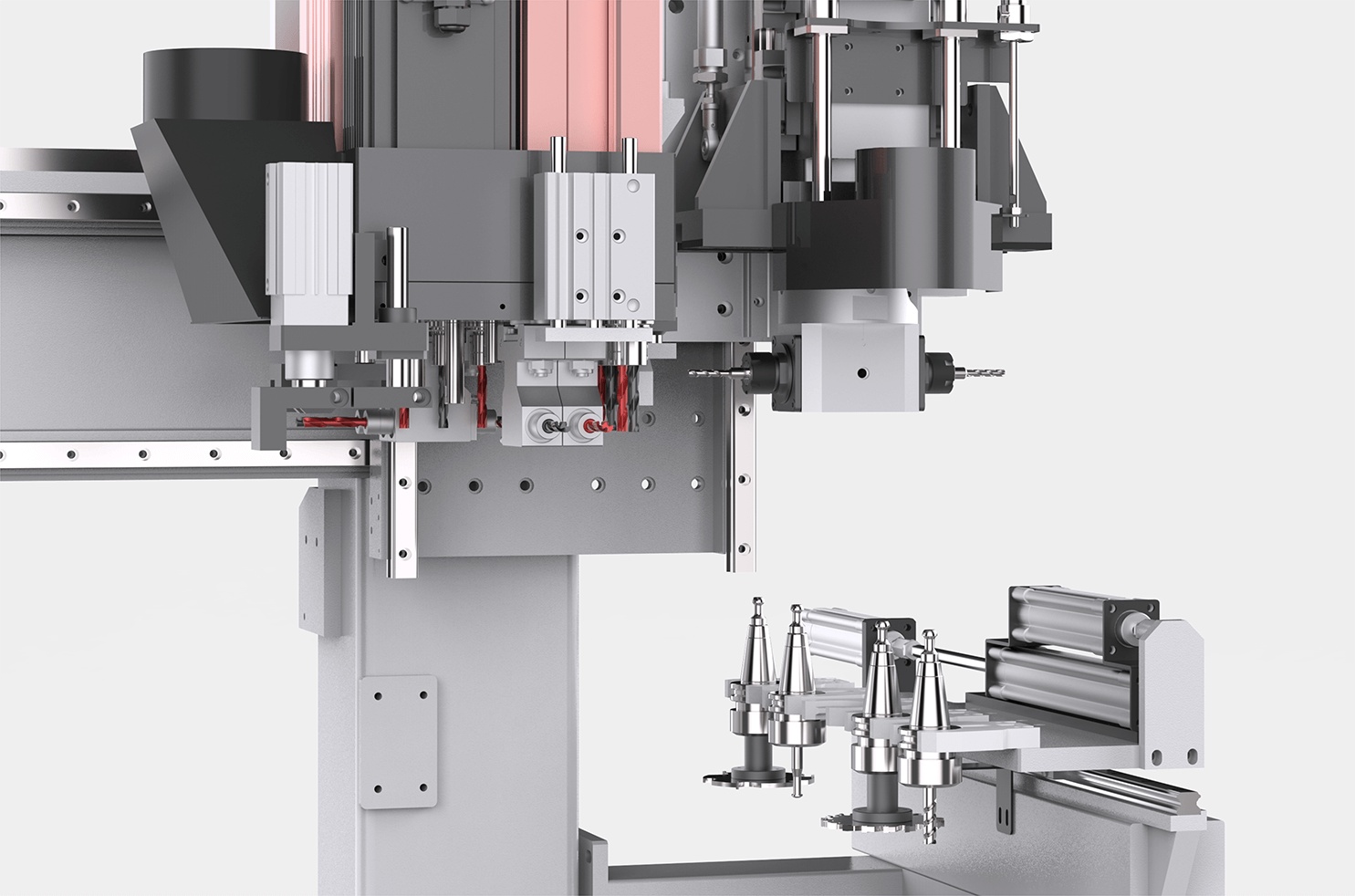

Drilling from 6 sides. There are 2 drilling groups on the machine: 10 - horizontal spindles, 22 - vertical spindles (13 - from above, 9 - from below). As standard, 2 milling units for 5.5 kW and 3.5 W are installed.

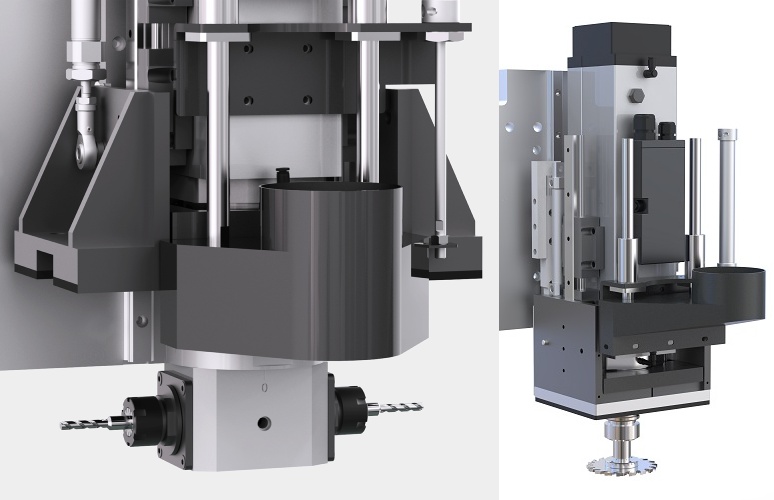

2 milling spindles 5.5 kW and 3.5 kW , 18000 rpm (top and bottom). The upper milling spindle, due to its increased power, has the ability to work with various tools and carry out various operations - milling under the LAMELLO coupler, side milling and grooving .

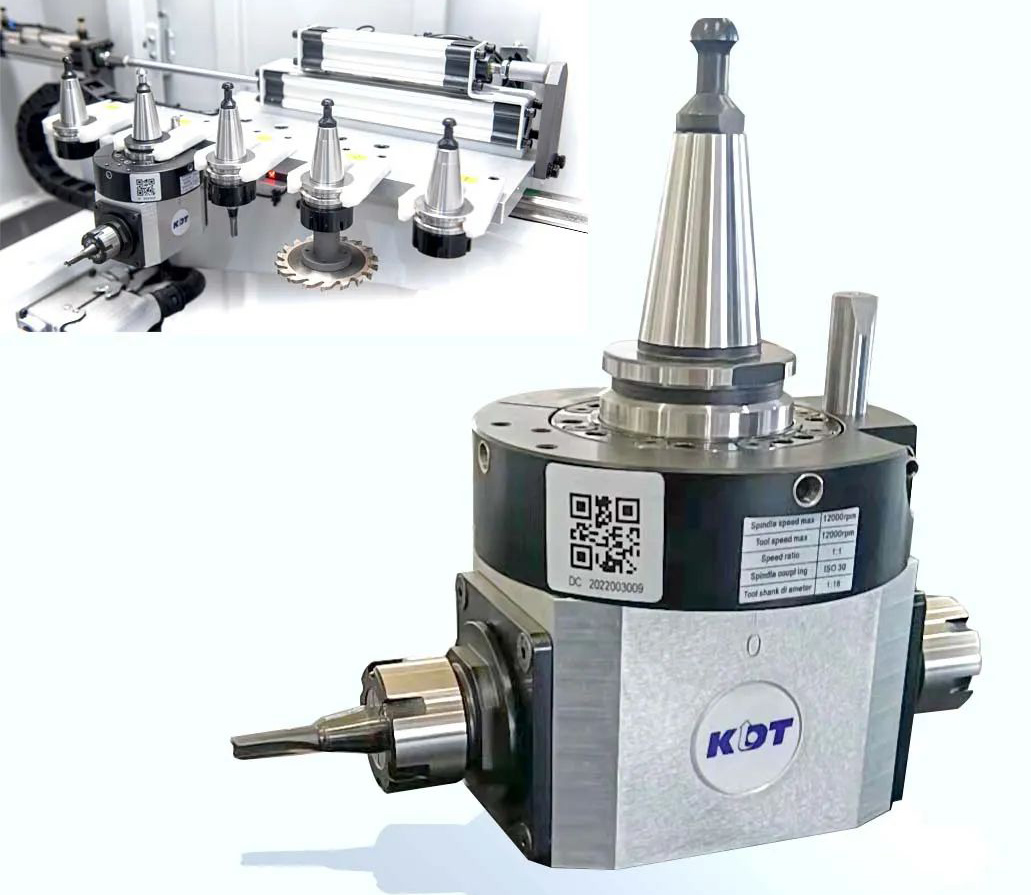

OPTIONAL! A special CNC unit has the ability to carry out sawing, drilling and milling operations (for invisible fittings, handles, hinges, etc.).

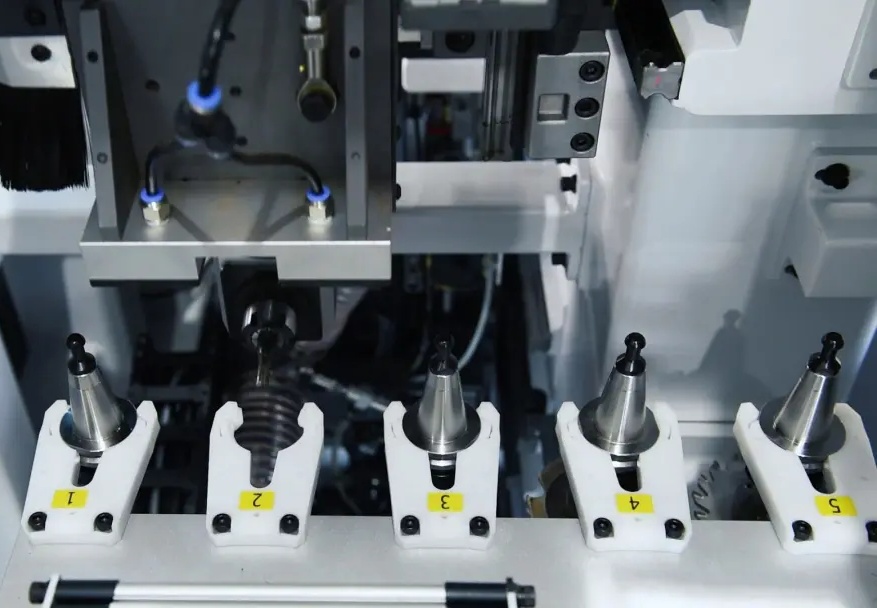

The top milling spindle is equipped with a 5-station linear tool change , which saves time when switching from one type of processing to another.

Grooving unit with a saw (disk diameter 120 mm).

Two automatic clamps will allow you to securely fix the workpiece with a length of 70 mm. up to 2800 mm and perform fewer interceptions during drilling, which significantly increases the speed of the work cycle compared to machines with a single grip. The maximum speed has been increased to 140 m/min .

The top milling spindle is equipped with a powerful vertical clamp with two pressure plates . Improves milling accuracy and prevents damage to the workpiece.

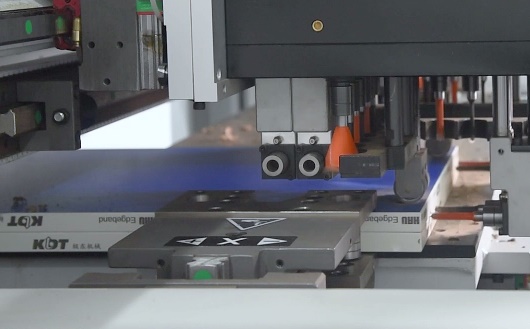

Batch drilling mode - processing of two parts at the same time with a mirror map.

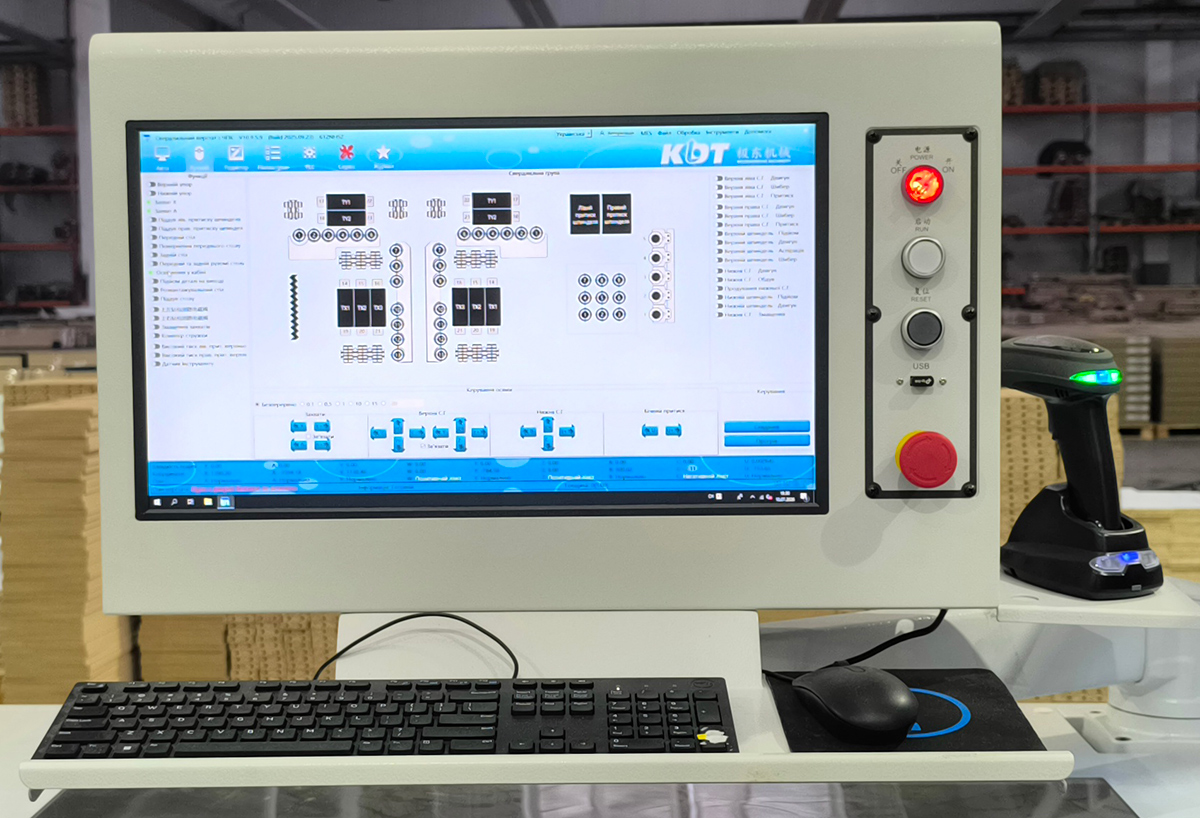

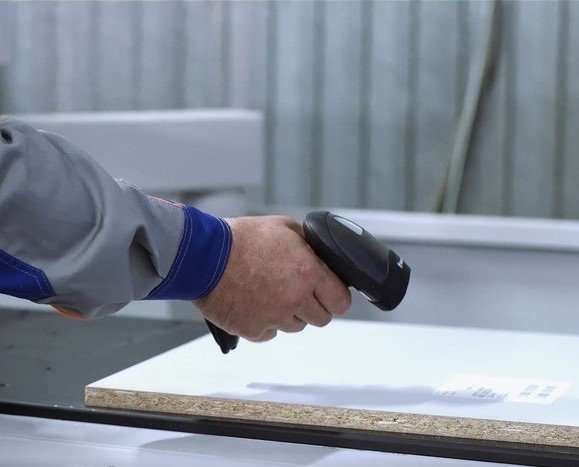

CAD/CAM control panel with barcode reading capability to increase machine productivity.

A barcode scanner is included in the basic equipment of the machine.

Ability to work with all popular programs for optimizing drilling maps.

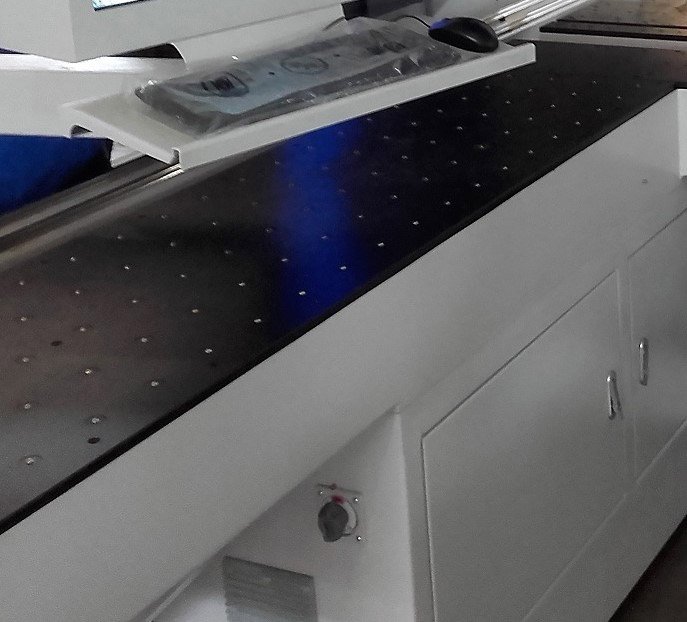

Easy movement of parts on the table occurs due to the air flow supplied by a special electric fan through the holes in the upper part of the table, thereby eliminating the possible appearance of scratches on the lower surface of the part.

Mobile plates in the drilling area allow for through milling.

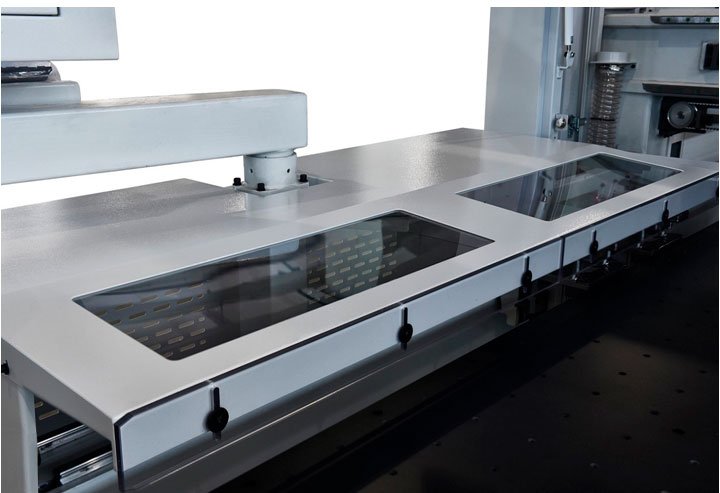

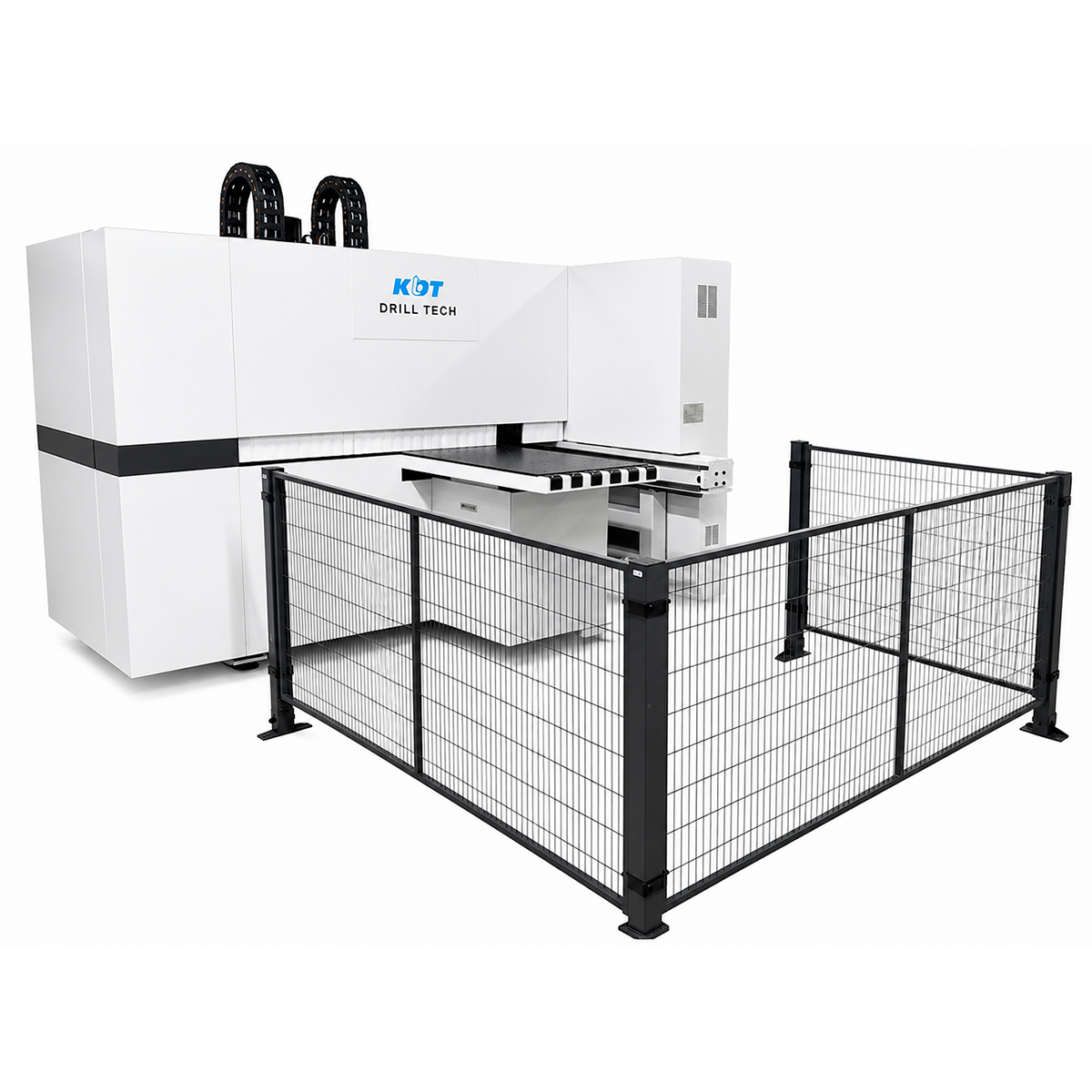

Protecting the operator from injury.

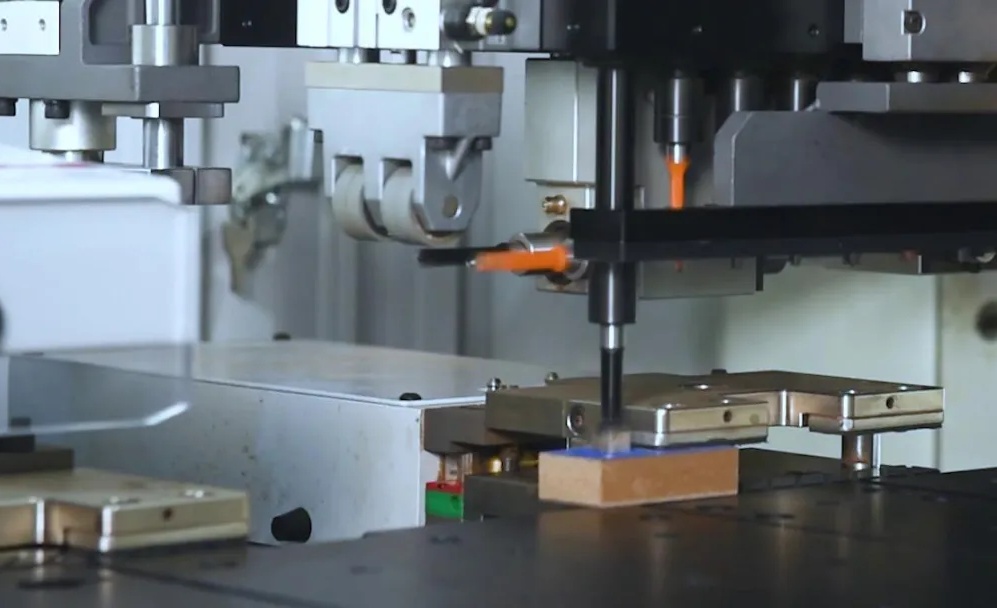

The minimum workpiece size is 70x30 mm, which allows for the addition of small-sized parts.

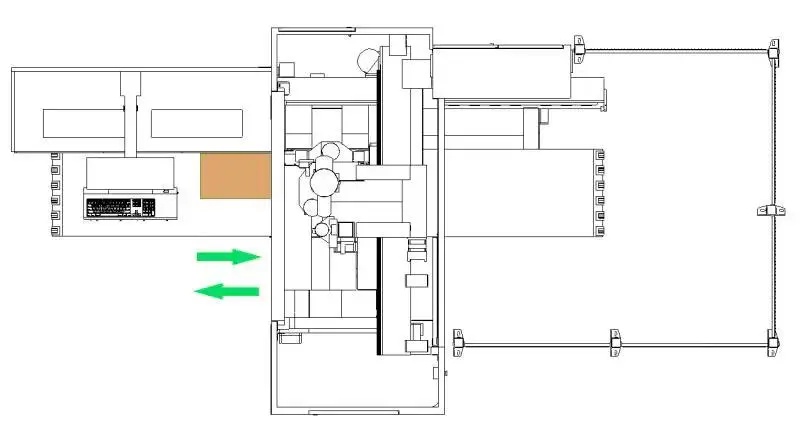

Thanks to the compact dimensions of the machine, up to 22% of production space is saved.

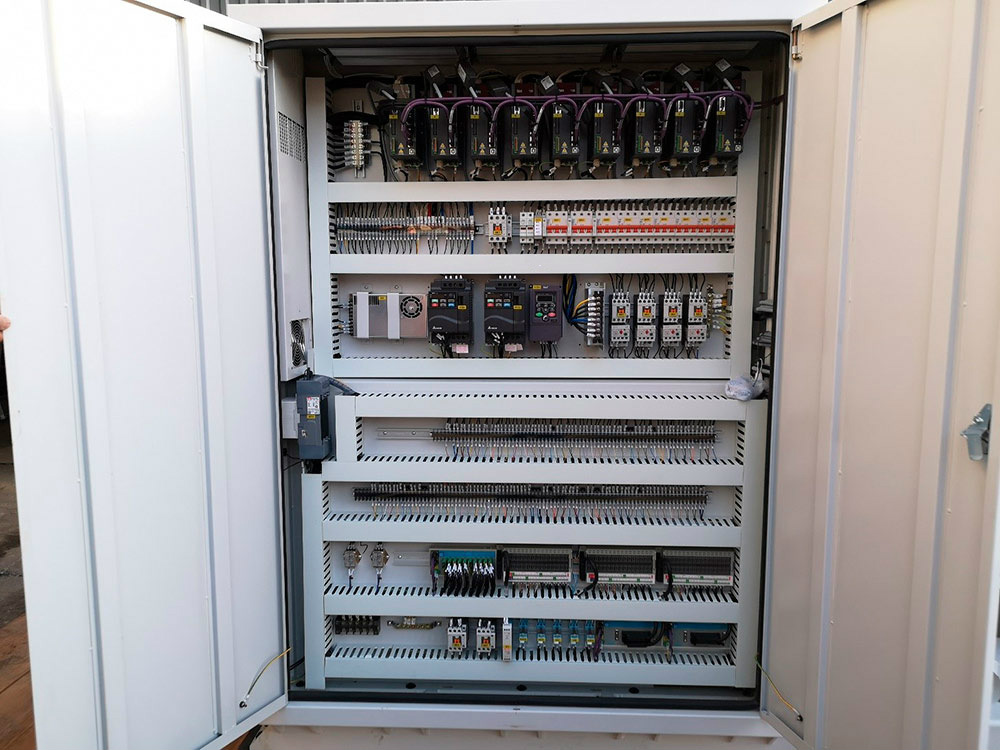

Sealed dust and moisture resistant cabinet with electronic components from the world's leading manufacturers is removed from the processing area, which prolongs the service life of electrical components and provides ease of maintenance.
