Automatic machine for measuring the dimensions of parts before packaging WG8M2

Purpose

Automatic machine WG8M2 for measuring the size of parts before packaging. The machine is equipped with servo drives and accurately measures the size of a package of parts on three sides. The first mechanism measures the length, the second - the width and height.

For precise measurement, the package of finished products is stopped inside the measuring machine, the stops move along the width and length of the package, thereby not only fixing the exact dimensions of the package, but also aligning it for correct placement in the box.

Having recorded the dimensions of the package of parts, the measuring machine sends information about them to the cardboard box making machine.

Based on the data received, the box production machine automatically selects the cardboard box making machine. The machine is used as part of a packaging line.

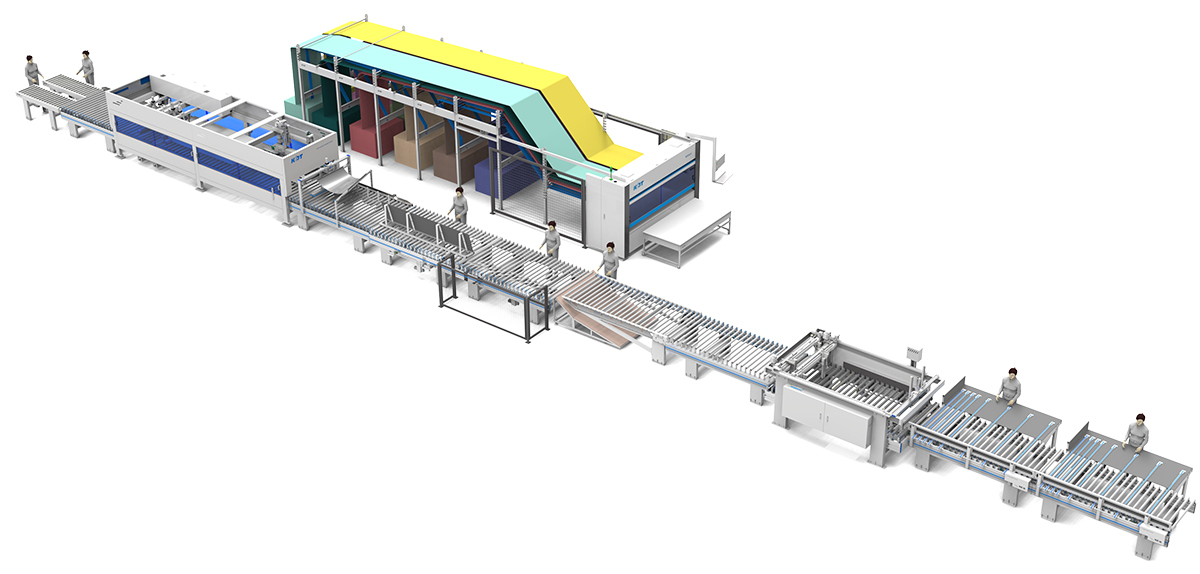

Packaging line example
