Automatic drilling line based on the KD-612THA machine with automatic loading/unloading

Purpose

An automated drilling section based on a CNC drilling center KD-612THA with automatic loading and unloading system is designed for high-precision drilling of blind and through holes in the planes and ends of furniture parts in the through mode, according to a given drilling map. This complex allows you to eliminate the human factor as much as possible and speed up the work of the additive section. This flexible solution will reduce personnel costs. Thanks to the automatic positioning system, processing accuracy will increase, and the intelligent loading/unloading system will increase productivity.

The line includes:

• Drilling machine KD-612THA.
• Automatic loader KHG-232.
• Automatic unloader KHG-932.

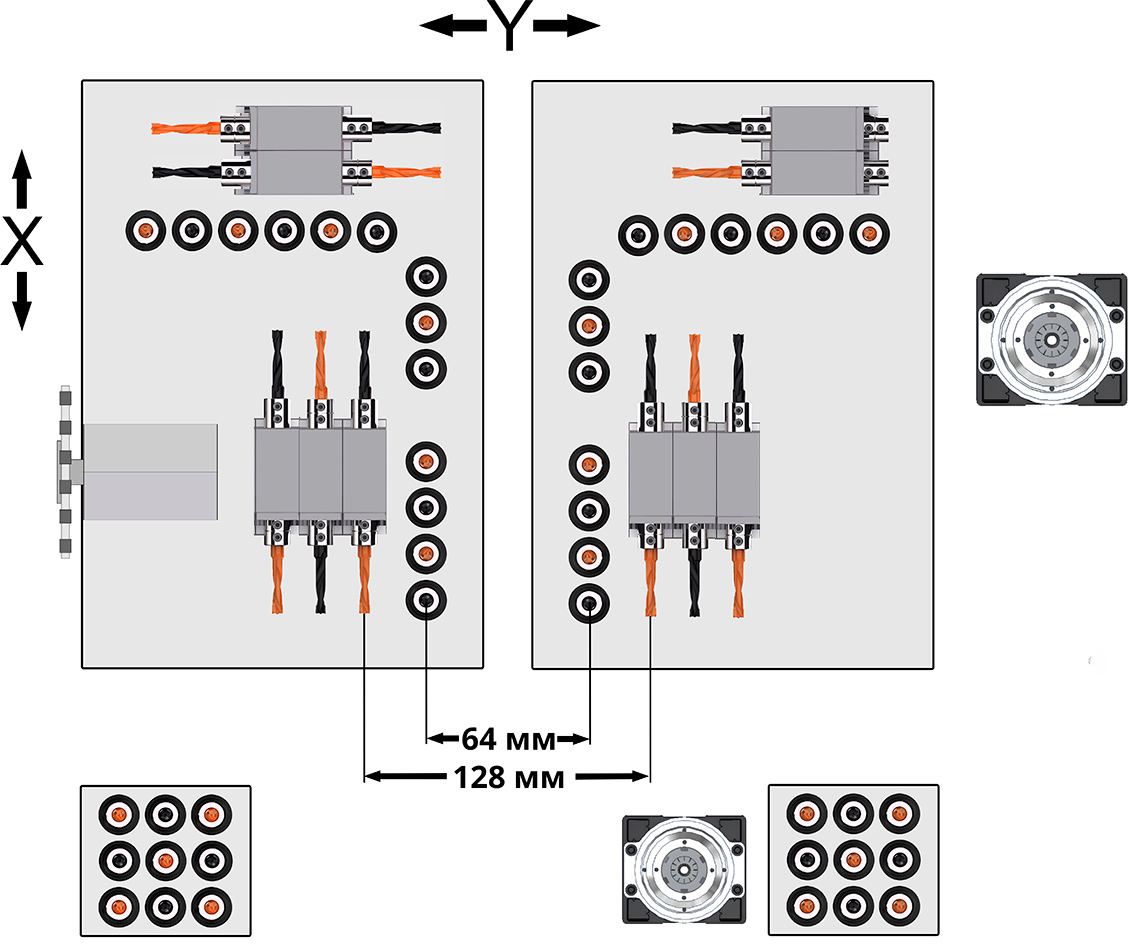

Diagram of drilling groups

Main features

• Gantry autoloading and autounloading.
• Algorithm for working with different orders during unloading.
• Simultaneous automatic loading/unloading of two parts.
• Possibility of manual loading.
• High productivity - two parts per minute.
• The length of the workpiece during automatic loading is 200-2400 mm.
• The length of the workpiece when loading manually is 200-2800 mm.
• The maximum width of automatic loading is 130-1200 mm.
• The maximum width for manual loading is 100-1200 mm.
• Drilling workpieces from 6 sides.
• Milling from the top and bottom of the workpiece.
• Grooving saw.
• Machine vision system for scanning barcodes and QR codes.
• Integration with any modern automatic systems.
• Powerful and reliable conveyor drives.
• Visual inspection system and condition monitoring.
• Ability to work with optimizer programs with drilling maps, as well as print labels.
• Fencing around the perimeter of the work area.

Engineering advantages

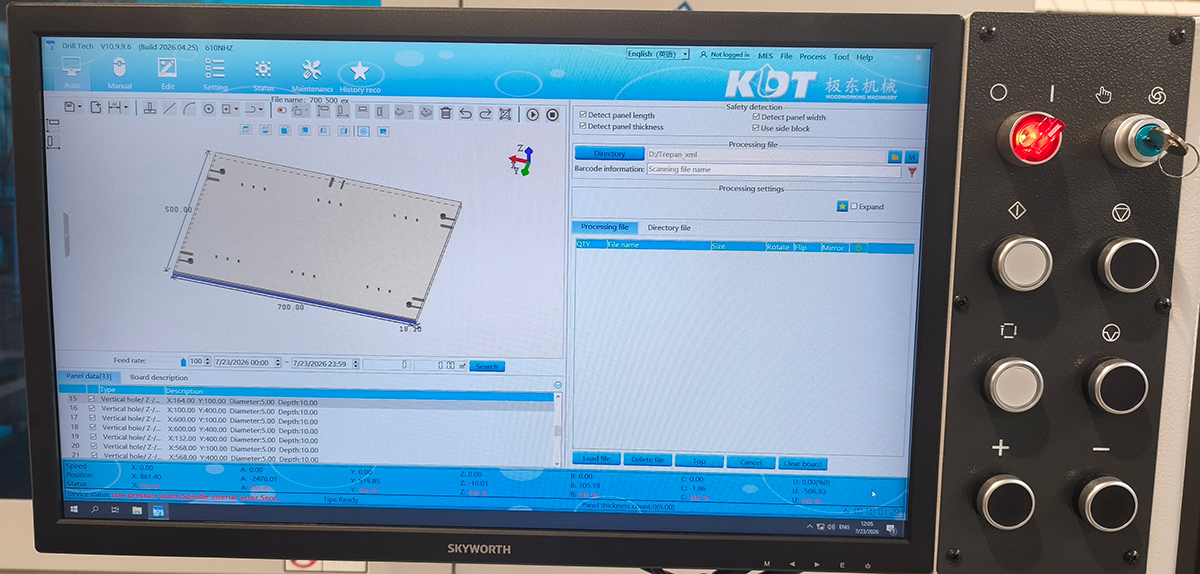

The machine is equipped with a Windows-based industrial computer. The CAD/CAM control panel features barcode scanning capability, helping to increase machine productivity.

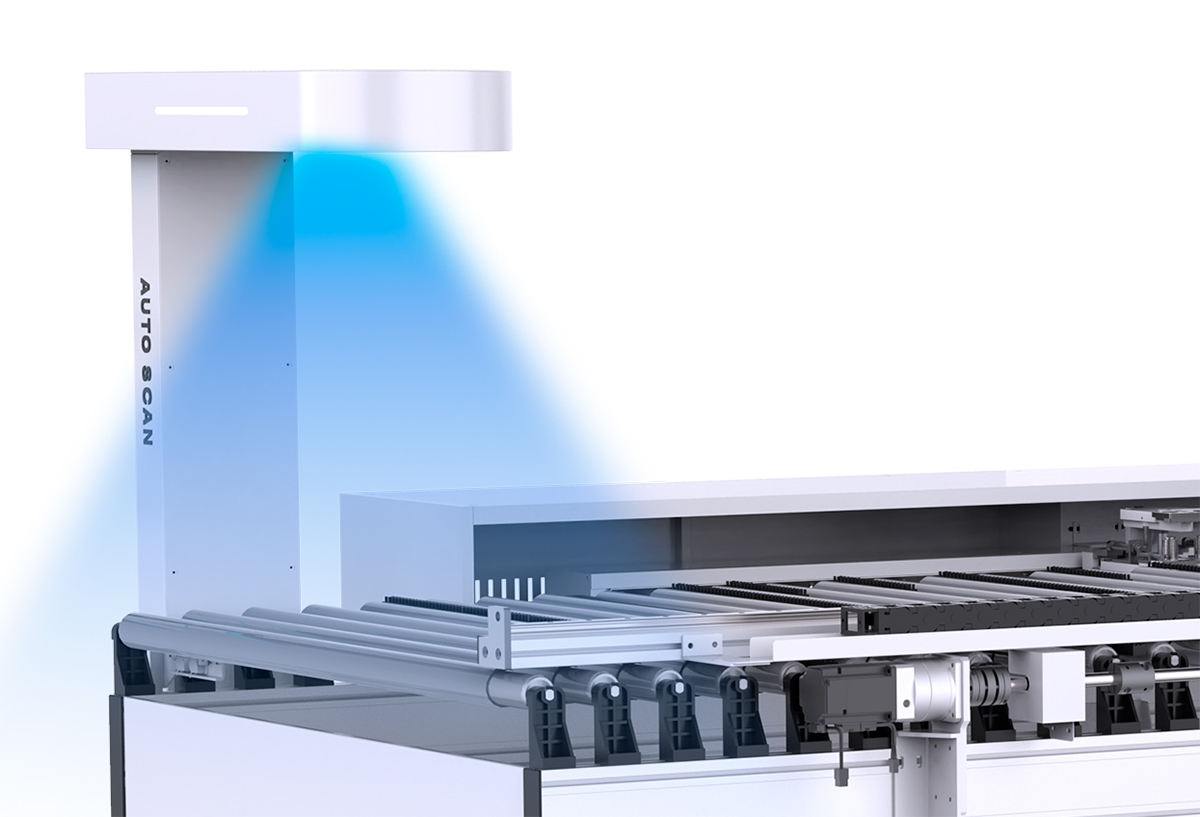

An intelligent vision system for barcode and QR code recognition is installed on the worktable. It automatically scans the code and identifies the required machining program.

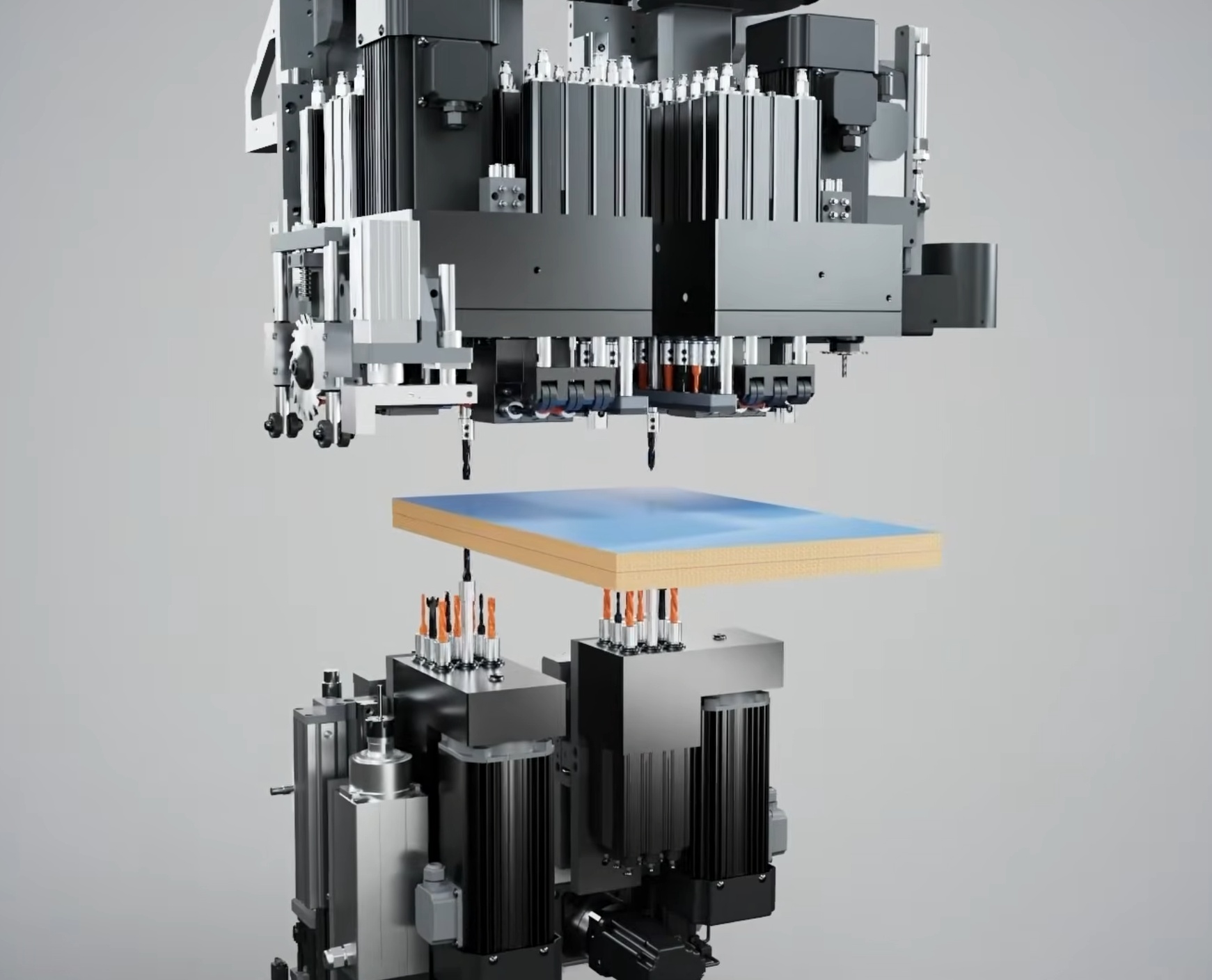

The machine is equipped with 4 drilling units comprising 18 horizontal spindles and 44 vertical spindles (26 upper and 18 lower). The standard configuration includes 2 routing units rated at 5.5 kW and 3.5 kW.

Thanks to its 6-sided drilling capability, the machine can simultaneously process the panel from above and below within a single working cycle.

2 routing spindles rated at 5.5 kW and 3.5 kW, operating at 18000 rpm (upper and lower). Thanks to its increased power, the upper routing spindle can work with various tools and perform different operations, including routing for LAMELLO fittings, side routing and grooving.

Grooving unit with a 120 mm diameter saw blade.

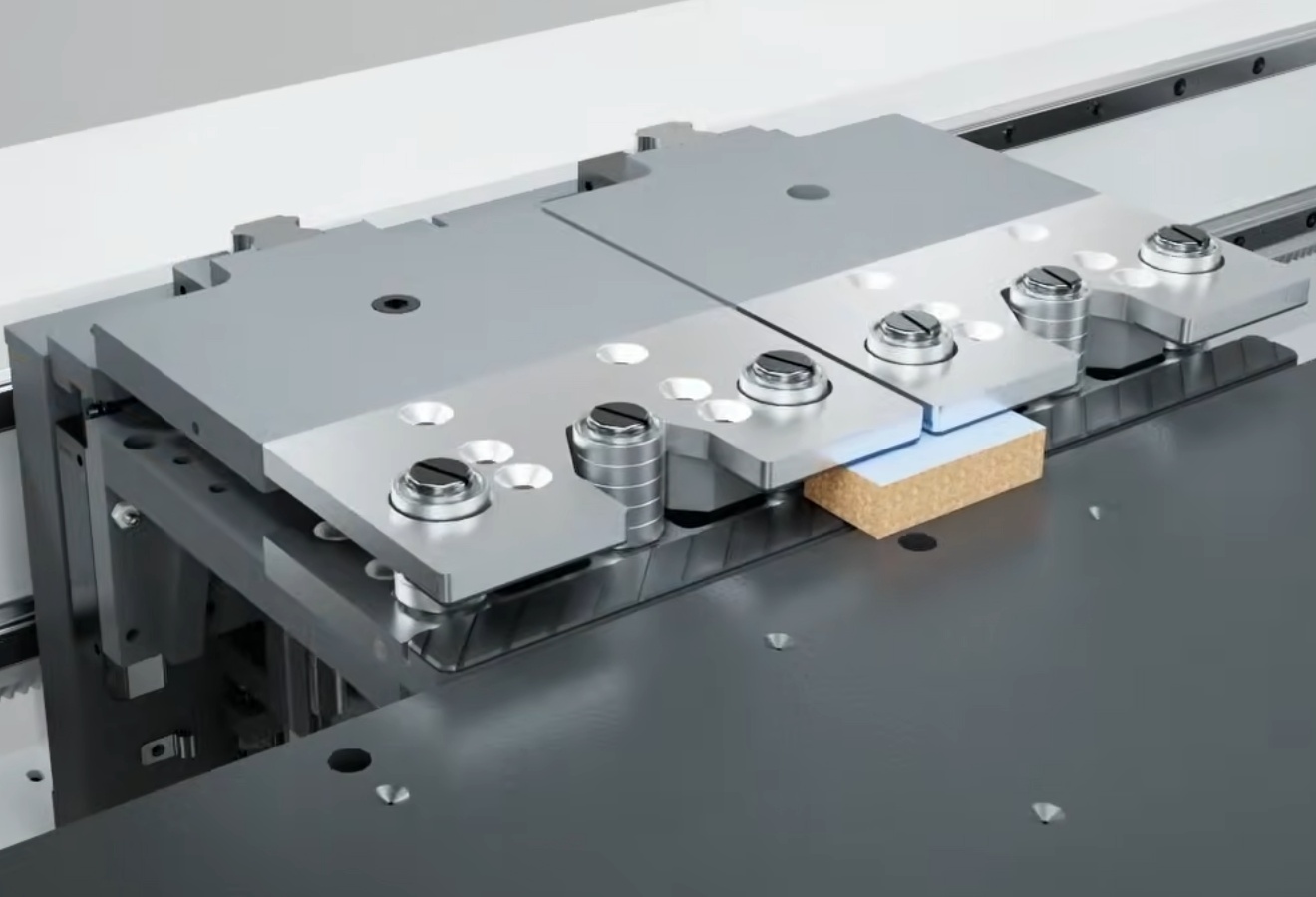

Two automatic clamps securely hold workpieces from 200 to 2800 mm long and reduce the number of regripping operations required during drilling. This significantly increases the working cycle speed compared with machines equipped with a single clamp. The maximum speed has been increased to 140 m/min.

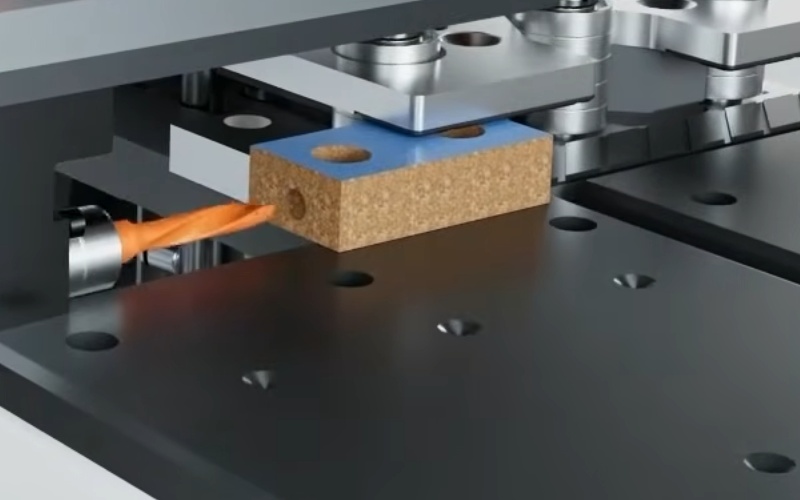

The minimum workpiece size is 200x45 mm, enabling the drilling of small-format parts.

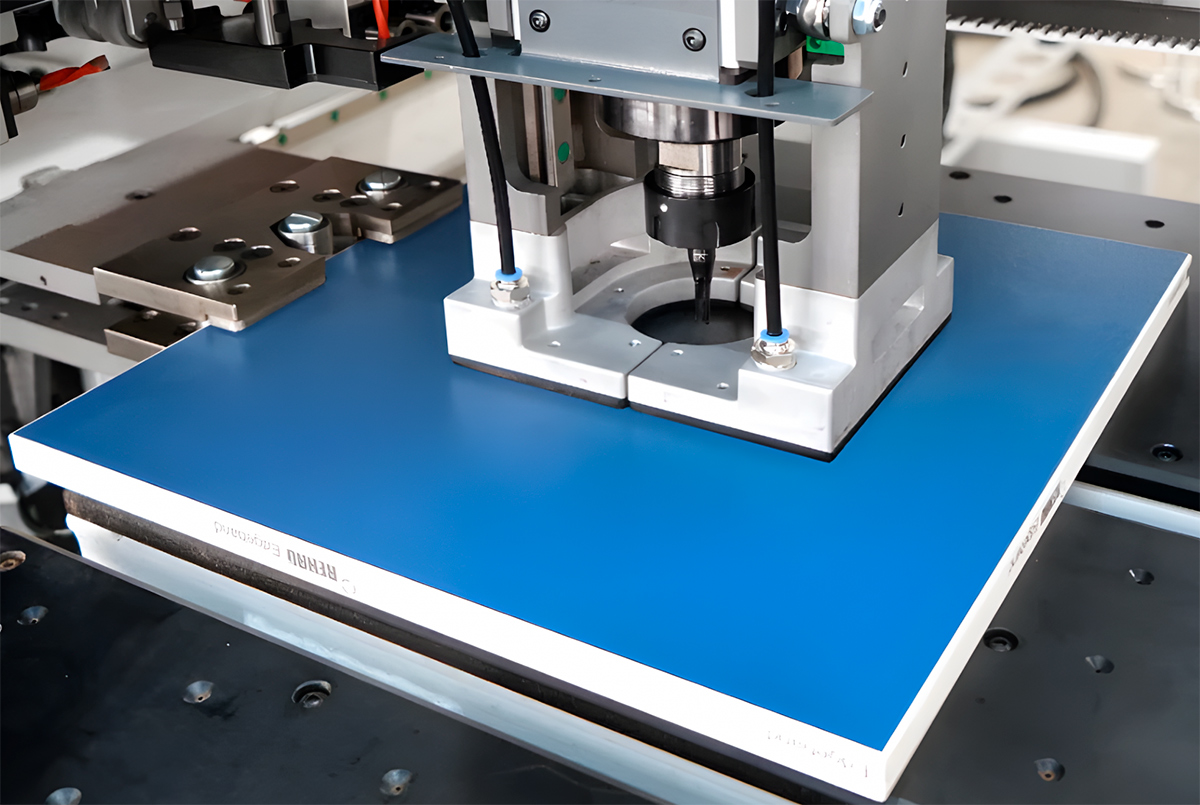

The upper routing spindle is equipped with a powerful vertical hold-down system featuring two pressure plates. It improves routing accuracy and prevents damage to the workpiece.

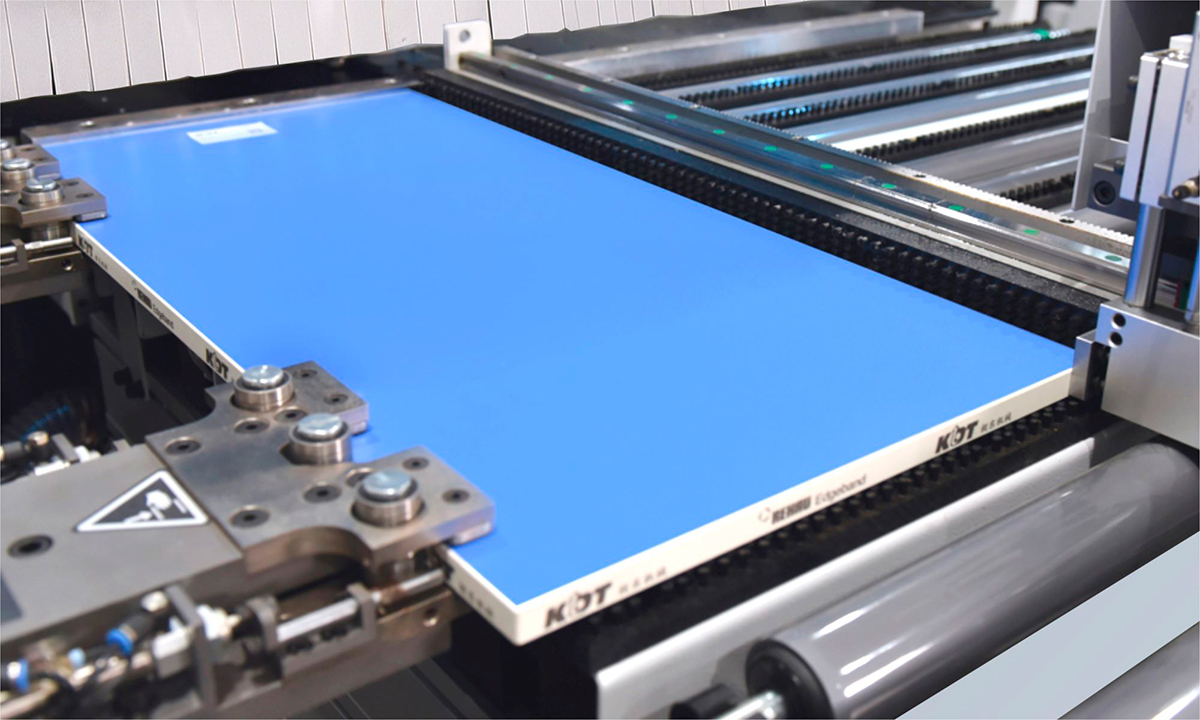

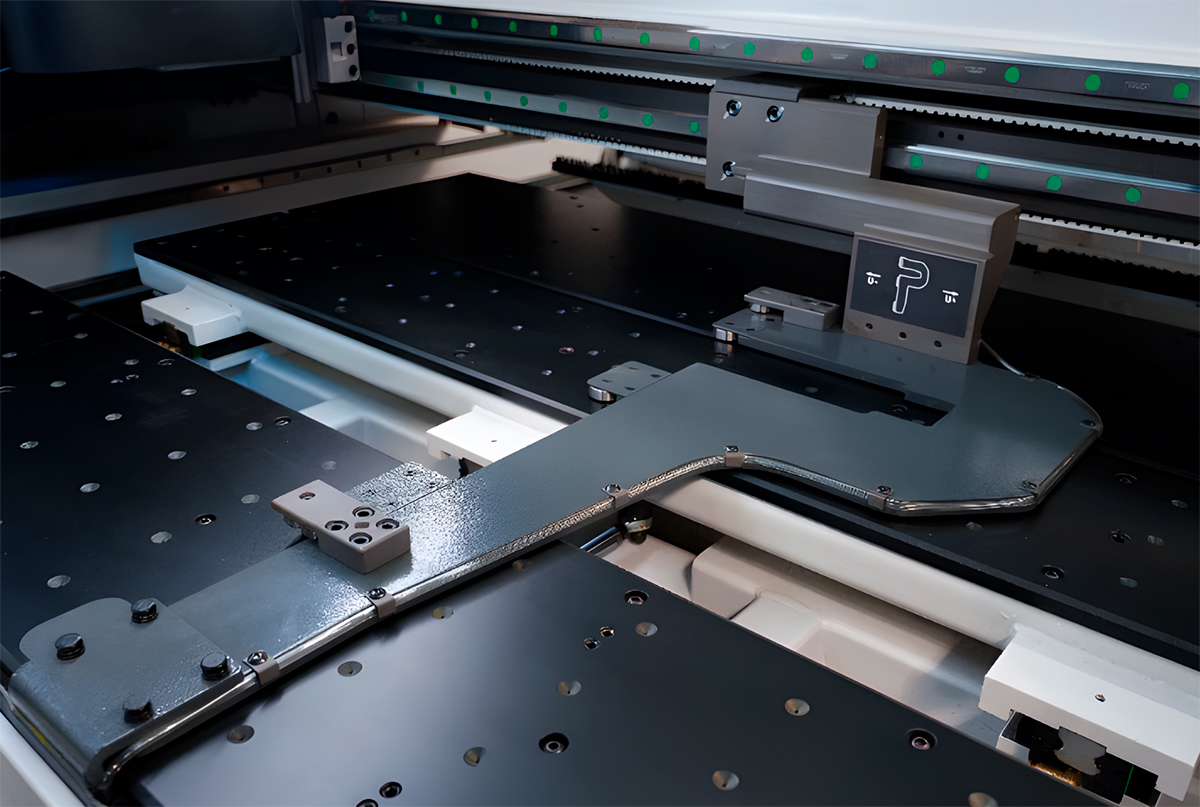

The workpiece is positioned on the machine by an automatic side alignment device. After the barcode is scanned, the side alignment device moves as close as possible to the workpiece according to its dimensions. The workpiece rests against the X-axis zero reference, while the side alignment device positions it along the Y-axis. Two pneumatic clamps then transfer the workpiece into the machine’s working area for further processing.

The side alignment device ensures accurate operation by being mounted on a linear guide using two bearing carriages. Its movement is driven by a servo motor.

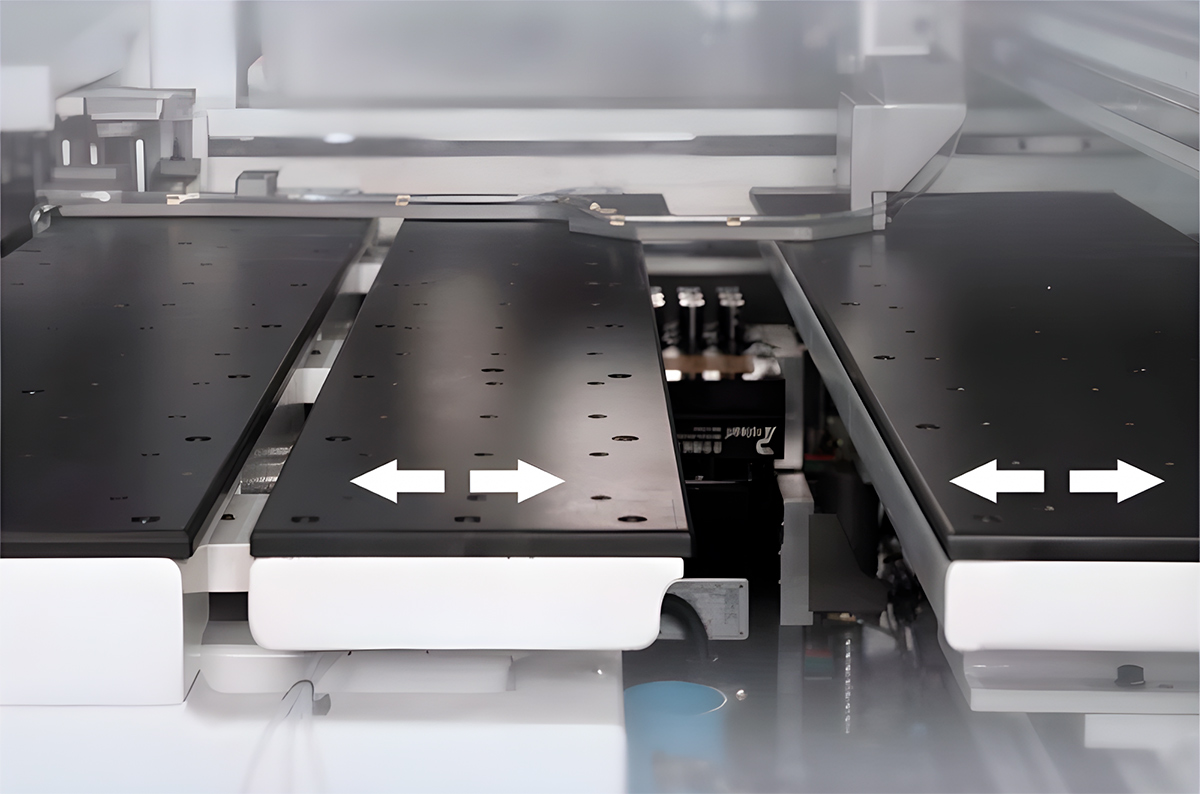

Movable plates in the drilling area enable through routing. Easy movement of workpieces across the table is ensured by an airflow supplied through openings in the table surface by a dedicated electric blower. This prevents scratches from forming on the underside of the workpiece.

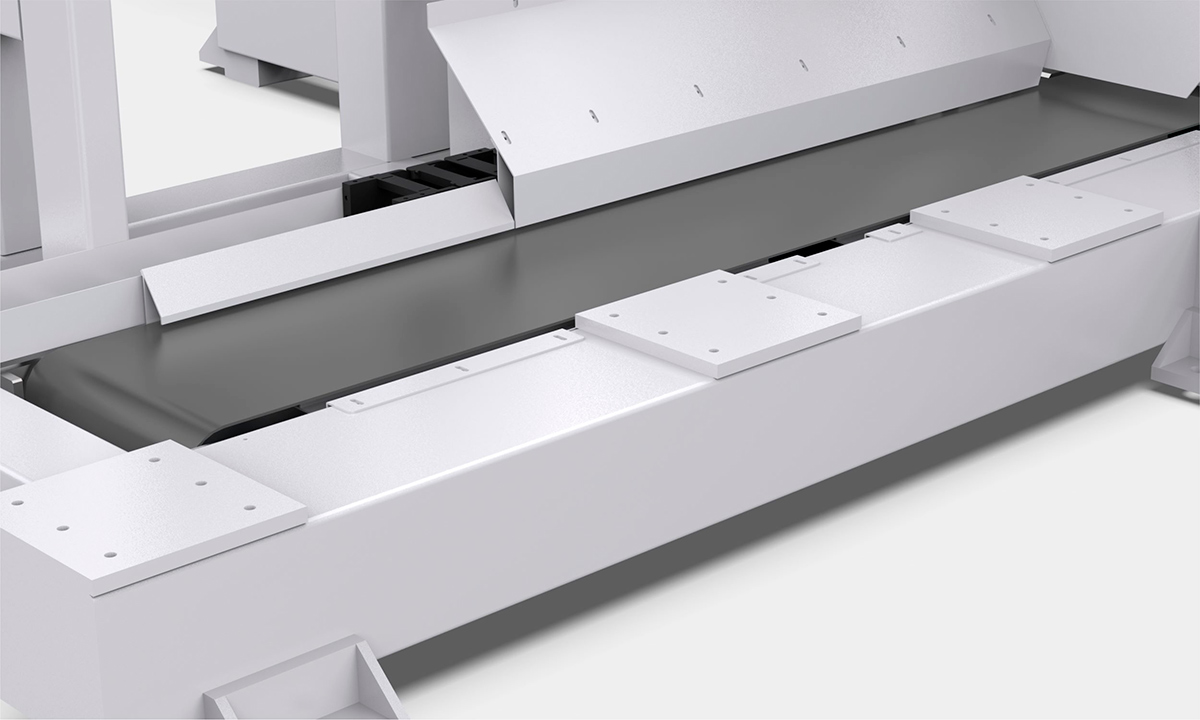

The machine is equipped as standard with a conveyor for removing chips and small workpiece offcuts.

Compatible with all popular drilling pattern optimization software.

The machine frame was developed using CAD systems to calculate and simulate the maximum permissible loads and structural requirements. The welded frame undergoes stress-relief heat treatment to eliminate internal stresses in the material. It is then machined on a five-axis metalworking machining center, where all mounting surfaces and holes for installing the machine units and components are precisely milled.

The sealed dust- and moisture-resistant cabinet contains electronic components from leading global manufacturers and is located outside the machining area. This extends the service life of the electronic components and provides convenient access for maintenance.
