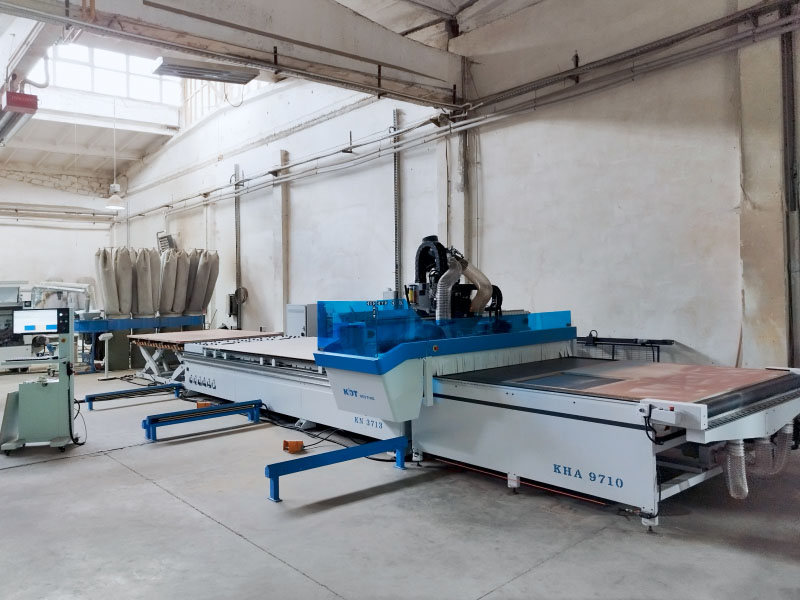

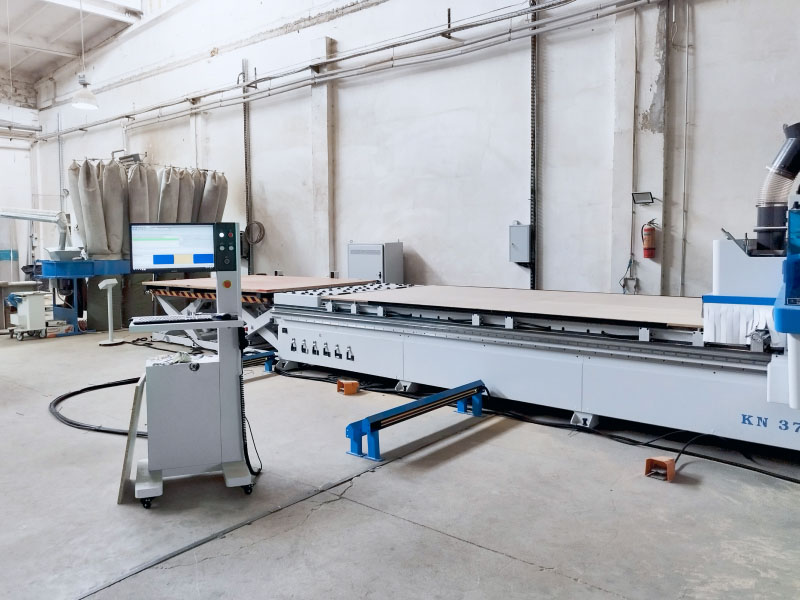

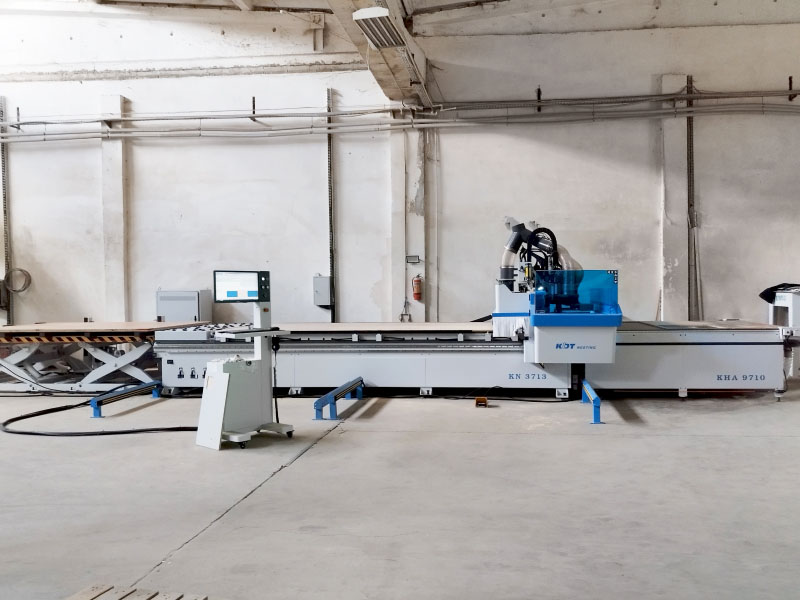

Automatic cutting line based on KN-3713D CNC machining center

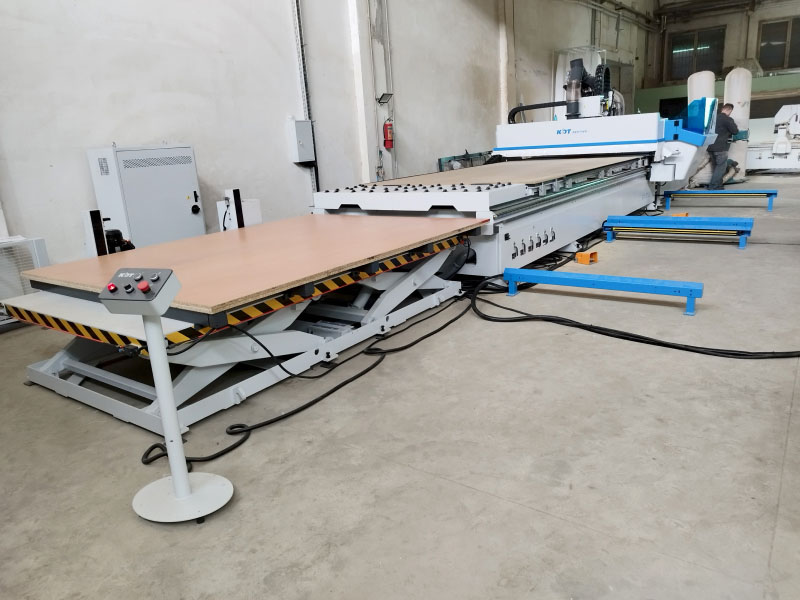

The automated line based on the KN-3713D CNC machining center delivers high-performance sheet cutting combined with flexible workpiece processing. Sheets are loaded by a loader onto the KT-2713.

Next, the KN-3713D machining center uses a vacuum manipulator to transfer the sheet into the machine’s working area, where linear and curvilinear cutting is performed. Thanks to its drilling head with 10 vertical spindles and a 12-position automatic tool changer, the machine offers high processing flexibility. Cutting, drilling, and milling operations are performed in a single work cycle. This significantly reduces total operation time and lowers production costs.

After machining process, the finished workpieces are automatically moved to the unloading table KHA-9710, while the working surface is cleaned of sawdust simultaneously. If needed, the line can be additionally equipped with a robotic vacuum manipulator that unloads parts onto pallets or a conveyor. This setup is perfect for modern furniture productions, where speed, precision, and fast adaptation to various production tasks are crucial.

Key advantages of the automated line:

• High-performance linear and curvilinear cutting of sheet materials
• Stable industrial-grade product quality with minimized human error
• Cutting of panels of 4260x2150 mm
• Flexible processing enabled by the drilling head and 12-position tool changer
• Combination of cutting, drilling, and milling in a single cycle.
