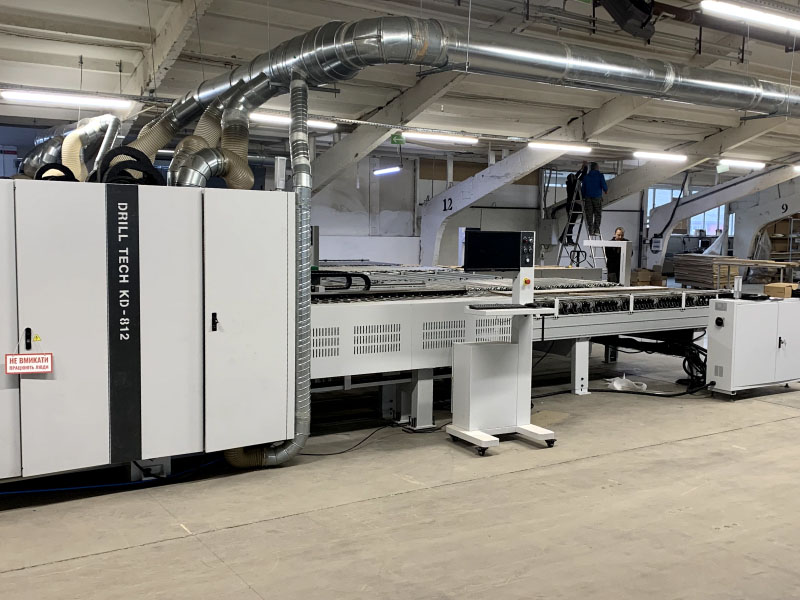

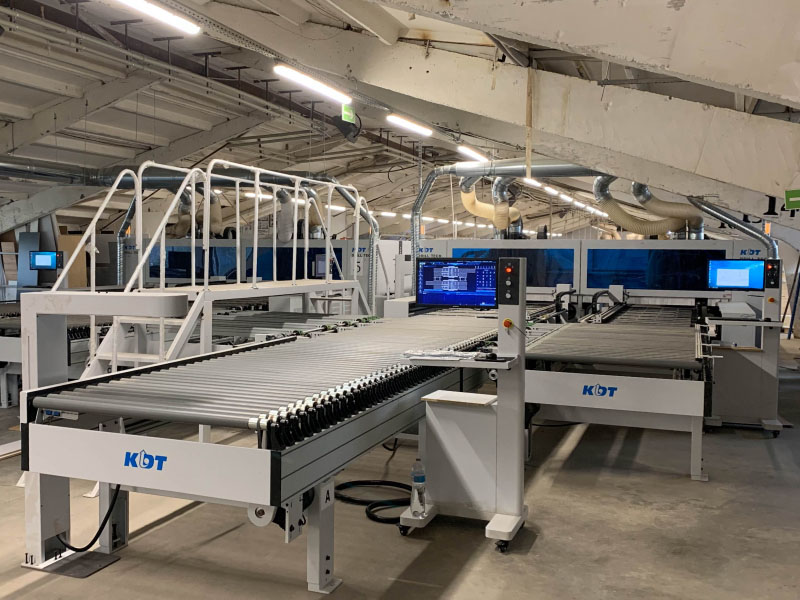

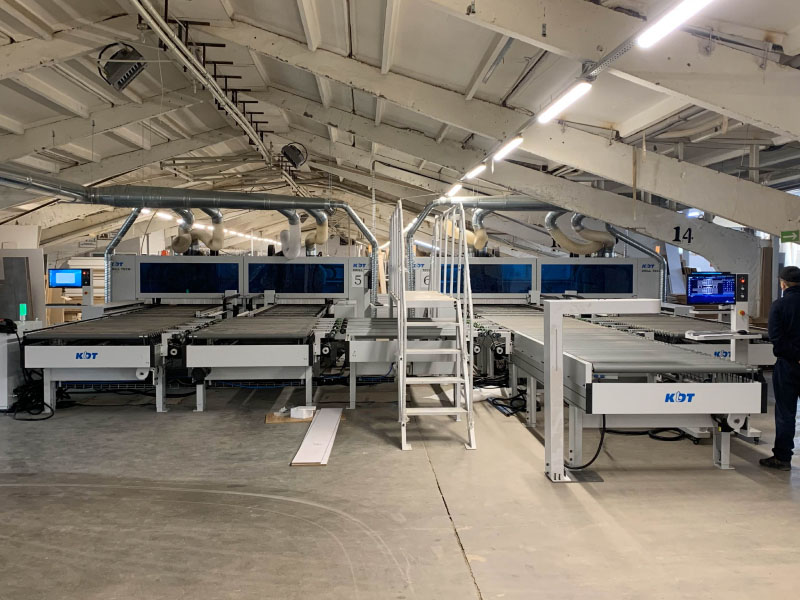

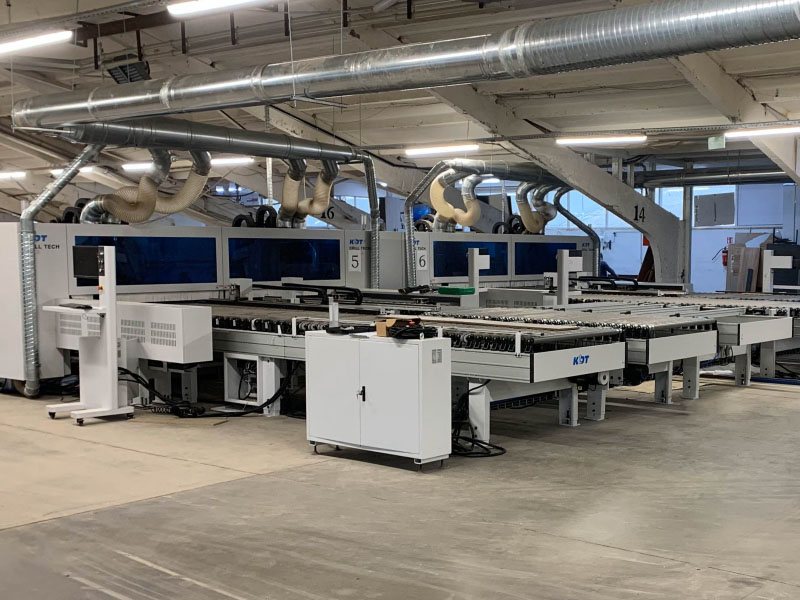

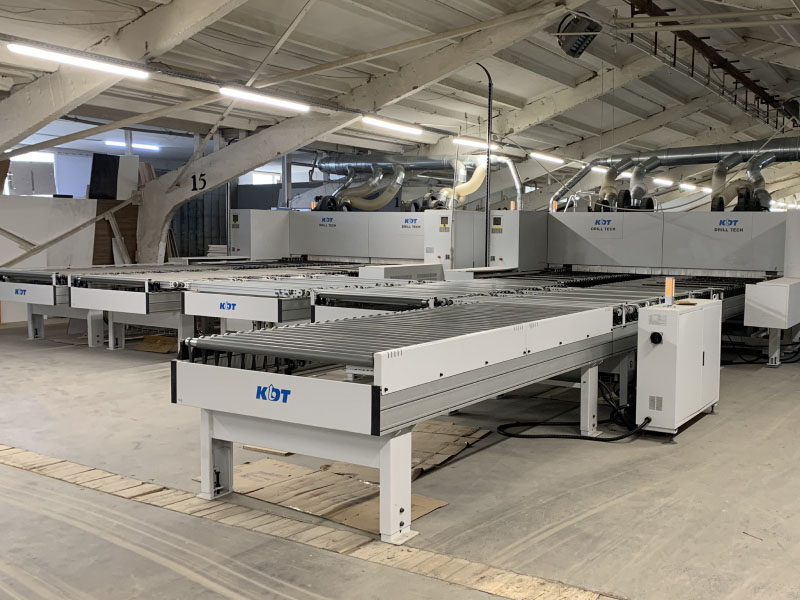

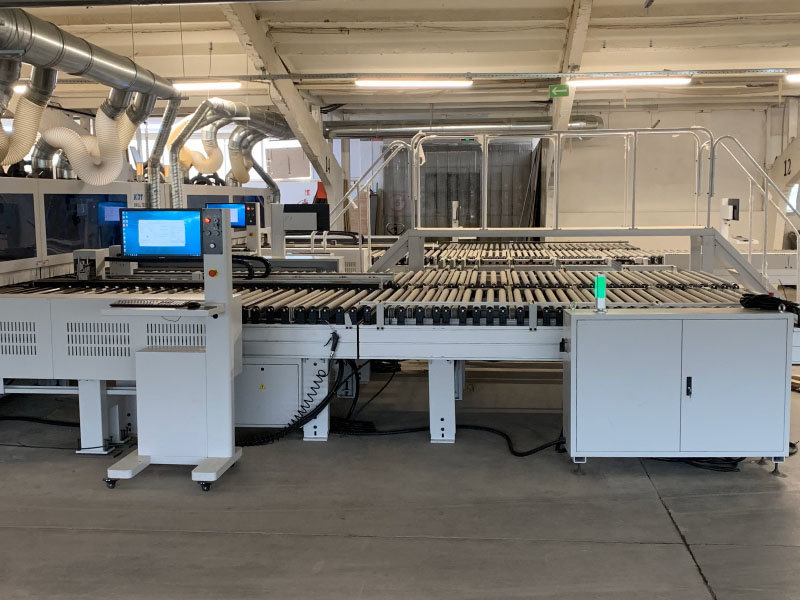

Automated CNC drilling station based on KD-812HA machines

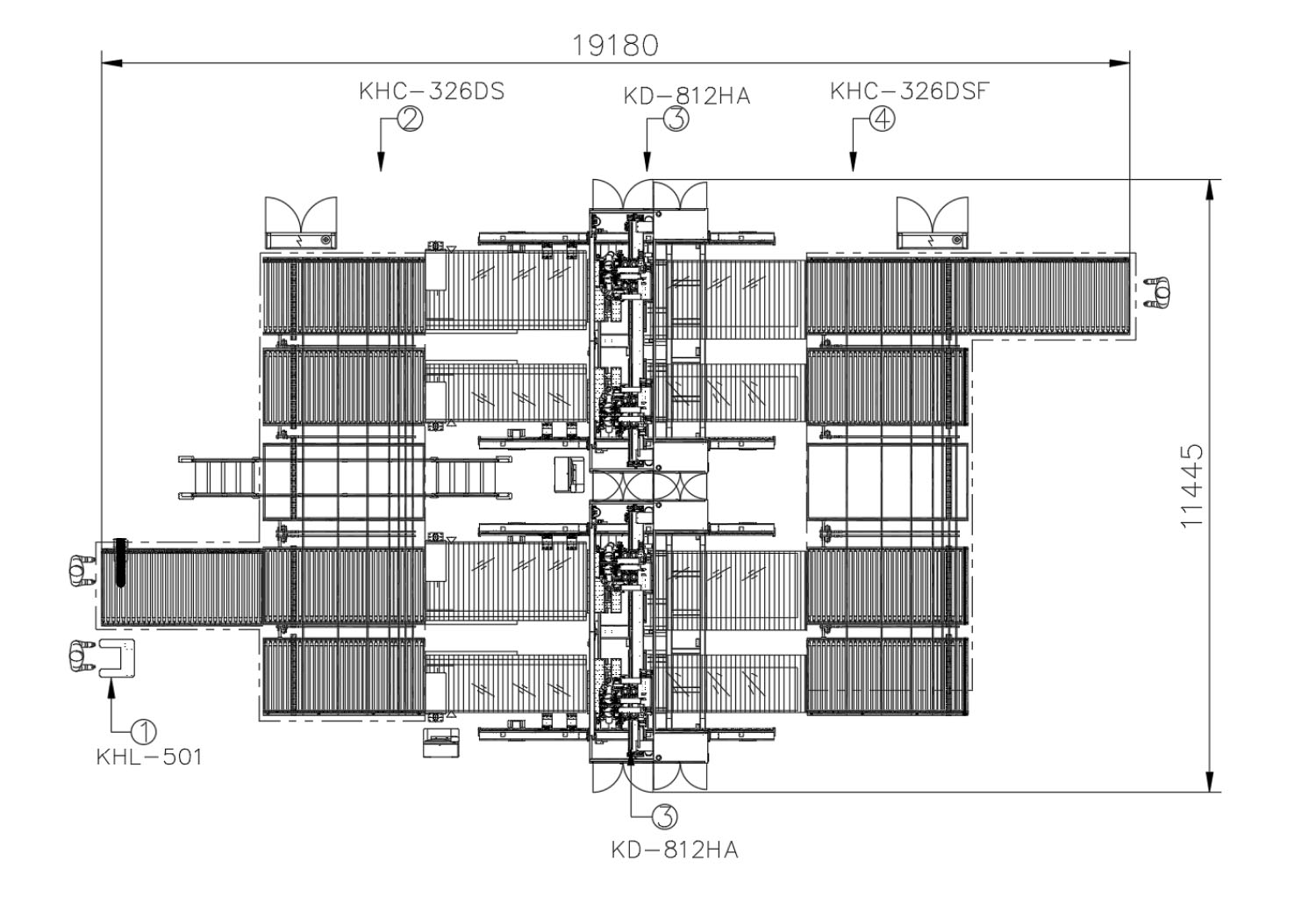

The automated drilling station, consisting of two high-performance KDT KD-812 drilling centers, ensures maximum processing efficiency. Each center features two independent working zones, providing a total of four autonomous zones per production line. This configuration enables smooth operation and minimizes equipment downtime.

Operation of the automated station:

1. Initial positioning: A workpiece with a unique label is placed on the infeed conveyor
2. Information reading: A scanner reads data from the label, identifying drilling parameters
3. Automatic adjustment: The system selects one of the four worktables and optimizes drilling modes based on the received data
4. Drilling process: The workpiece enters the selected working zone, where drilling is carried out according to the defined parameters
5. Post-drilling movement: The finished item is transported via the outfeed conveyor to the final buffer
6. Final stage: The operator performs quality control and moves the processed workpiece to the storage area.

Key advantages of the system:

• Maximum productivity through the independent operation of four zones
• Process automation – reduced human error and minimized setup time
• Flexibility – ability to handle parts of varying complexity and sizes
• Precision – software control ensures high quality and repeatability.

This approach provides production process stability, reduces manual labor costs, and enhances the quality of the final product.
