Edge sanding machine with milling unit S-K2S2J2G1W2

Purpose

Edge sanding machine with milling unit S-K2S2J2G1W2 is designed for milling and sanding in automatic mode edges of facade profiles, furniture parts, door frame elements and others. It is used for sanding blanks from solid wood, MDF, veneered parts, primed surfaces.

The machine is equipped with the following types of working units:

• "K" – milling unit. Forms high-quality edge without chips. Possible to install profile cutters – 2 pcs.
• "S" – sanding unit with pneumatic pressure bar – 2 pcs.
• "J" – milling unit with a radius cutter for processing the upper and lower edges of the part – 2 pcs.
• "G" – milling unit with a radius cutter for processing corners – 1 pc.
• "W" – universal sanding unit – 2 pcs.

Main features

• 9 independent working units, including milling units.
• Possibility of adjusting the milling unit with servo drives (optional).
• Profiling and edge sanding in one pass.
• Manufacturing and sanding of a built-in handle of any format in one pass.
• Setting up and controlling the machine from the control panel.
• The parts are fed by a chain conveyor with rubberized pads attached to it.
• The position of the parts is carried out according to the base line.
• 2 milling spindles produce high quality, chip-free edges.
• The lifting and retraction of the sanding units is controlled by the program without manual adjustment, which significantly increases the efficiency of use and saves a lot of time on adjustment.
• The belt speed is adjusted by frequency converter, suitable for sanding edges of different materials.
• The sanding units can be adjusted from -45° to +45° to adapt to linear sanding of ends with a certain angle change.
• The electrical cabinet and control panel with controller and touch screen are located in a separate stand.

Engineering advantages

The control panel with intuitive interface and the electric cabinet are located on a separate stand. The software allows you to control all operating parameters of the machine.

Features:

• The machine is controlled by PLC.
• The machine is equipped with a 10” touch-screen panel.
• The feed speed is infinitely adjustable.
• The machine uses high-quality electrical components (Shilin, Schneider).

The parts are fed by a chain conveyor with rubberized pads fixed to it. The parts are fixed on the conveyor along its entire length by an upper pressure beam with two rows of rubberized rollers and a belt. The position of the parts is according to the base ruler. This system of feeding and fixing the workpieces on both sides ensures reliable and smooth feeding, eliminating the possibility of the workpiece shifting.

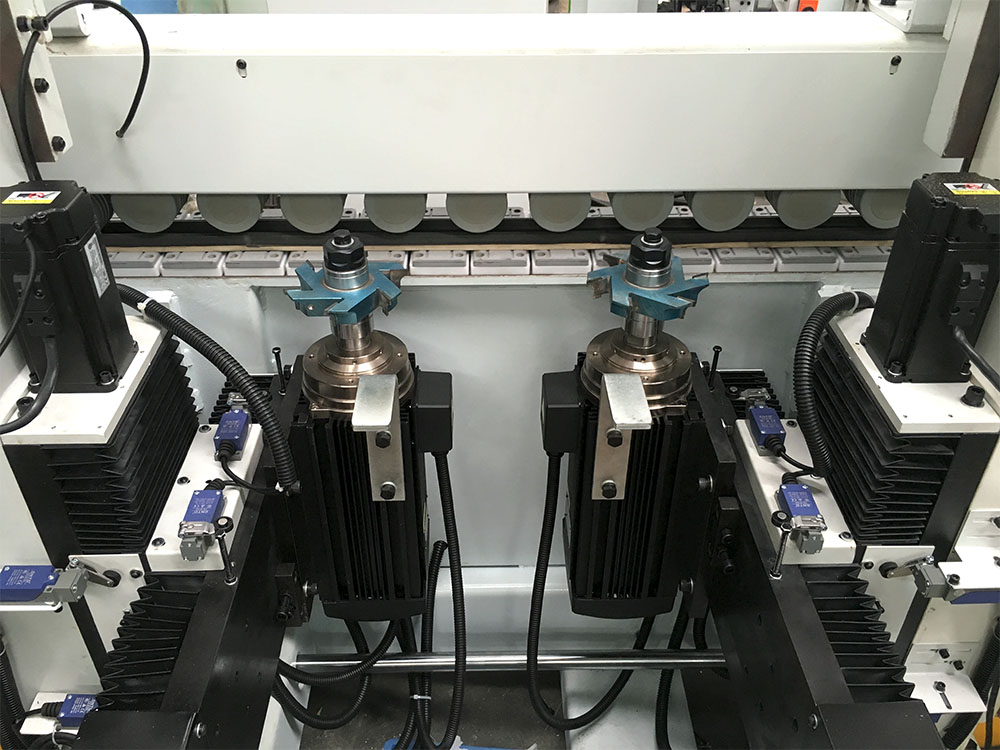

High-speed motor with speed adjustment works only on one plane and is designed for profile forming, chamfering, groove milling, end cutting, high precision and stability. Adjustment to the desired size is made mechanically by a digital counter. Optionally with servo motors from the control panel.

Features of the milling unit:

• 2 milling motors of 5.5 kW (5000-9000 rpm);
• Maximum cutter diameter 170 mm.
• Anti-scraping function.

Sanding is performed by an endless sanding belt with a pneumatic pressure bar. For leveling the edge surface and eliminating mechanical processing defects (wave, step, saw marks). The degree of pressure, the moment of switching on/off are regulated, which eliminates resanding and knocking down the angles of the workpiece entry into the unit's operating area. The unit has an adjustable tilt angle relative to the horizon, which allows you to adjust it to any profile.

Features of the sanding unit:

• 2 electric motors of 2.2 kW (1420 rpm), speed 0-14 m/min is regulated by a replaceable frequency controller Shilin (Taiwan);
• Oscillation mechanism. Pressure adjustment of the clamping bar by means of a pneumatic cylinder.
• Blowing the tape with compressed air, aspiration casing with a branch pipe.
• Sanding belt size: 2300x80 mm,
• The angle of inclination of the sanding unit is -45° – +45°.

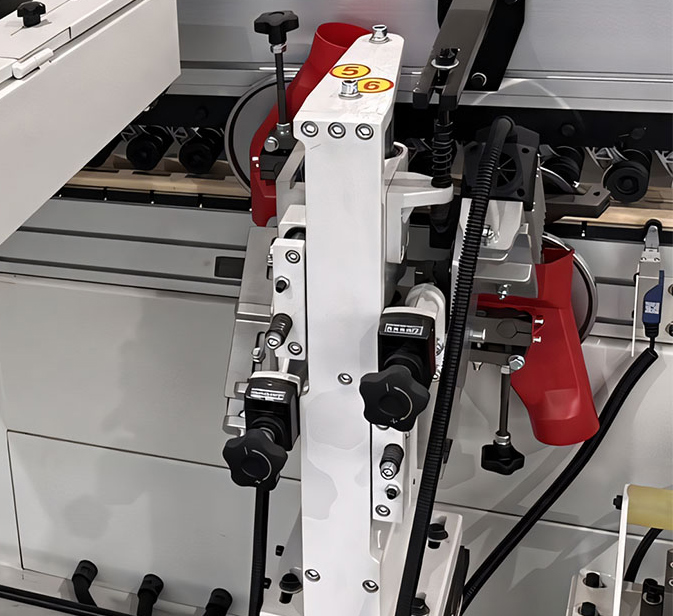

The milling unit " J " is equipped with two high-speed milling spindles (2 electric motors of 0.75 kW, 12000 rpm) with radius cutters and is designed for rounding the upper and lower edges of the part.

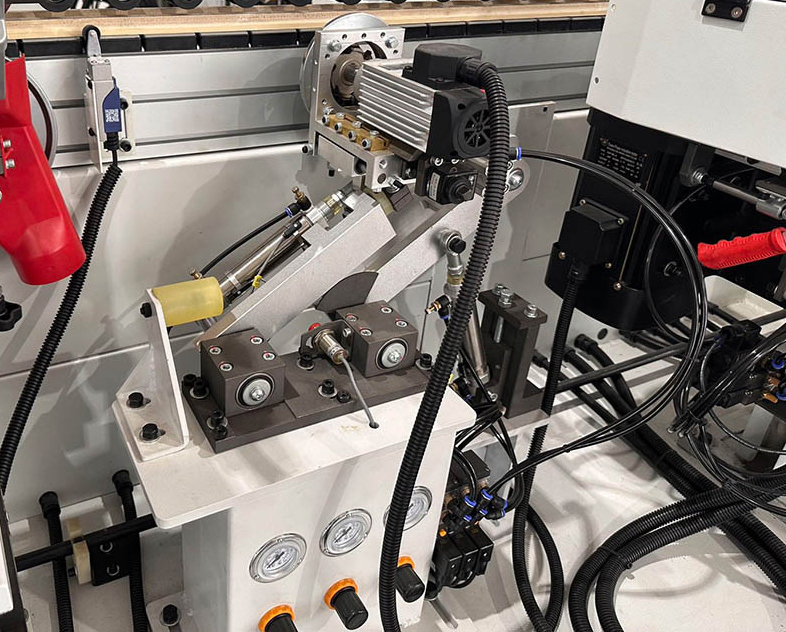

The milling unit "G" is equipped with a high-speed milling spindle (electric motor 0.75 kW, 12000 rpm) with a radius cutter. It is designed for processing all four corners of the part.

The contact cylinder of the universal sanding unit "W" can be equipped with different types of sanding material depending on the needs.

Features of the universal sanding unit:

• 2 electric motors of 1.5 kW (1420 rpm), speed 0-12 m/min is regulated by a replaceable frequency controller Shilin (Taiwan);
• Sanding belt size: 890x100 mm;
• Oscillation system. Automatic abrasive wear compensation system.
• The angle of inclination of the sanding unit is -45° – +45°.
• Tape blower, aspiration casing with branch pipe.

Brush drums are used for sanding profile edges of workpieces.

For sanding flat edges of workpieces, sanding belts are used together with a sponge roller.

To achieve results on complex profiles, Scotch-Brite is used with counter-profile milling.

Octagonal sanding paper is mounted on a universal spindle for sanding recesses and grooves on a profile.
