CNC panel saw/beam saw KS-543HLM

Purpose

CNC panel saw/beam saw KS-543HLM with rear loading and double pusher (the size of the package to be cut at front loading is 4280x4280 mm, at the rear - 2100x4000 mm) is designed for cutting a package of board materials (chipboard, MDF, fiberboard, etc.), as lined and unlined. The machine is used in the conditions of large-scale and mass production for the manufacture of cabinet furniture, furniture panels, molded products. Rear loading simplifies the logistics of materials in production and facilitates the work of machine operators.

Processing scheme

Main features

• 2 independent pushers for cutting panels with different lengths, improve cutting efficiency at different sizes;
• Moves the two left grips parallel to the cutting line;
• The next sheet is fed before the cutting of the current one is completed;
• Grooving function;
• The innovative saw carriage with Maglev technology ensures smooth, easy movement of the saw carriage and allows you to achieve high cutting accuracy and speed;
• Magnetic positioning to measure the lifting of the workpiece from the rear loading, the minimum thickness of the workpiece is 8 mm;
• Polished steel plates in the cutting area;
• Automatic rear loading on the machine allows you to load a package with a maximum size of 2100x4000 mm;
• Hydraulic lifting table with load capacity up to 4000 kg;
• Working with optimizer programs , which make it possible to program the cutting order, print labels and import files with cutting maps;
• Visualization of the order of cutting and a schematic map of the cut;
• The maximum height of the opened package is 120 mm;
• The minimum workpiece size is 34x45 mm;
• Saw carriage working speed up to 160 m/min;
• Saw carriage idle speed up to 200 m/min;
• Programmable pusher speed 95 m/min;
• The working table of the machine is equipped with a blowing system (air cushion);
• Industrial computer ensures reliable operation of the CNC system;
• Automatic lifting of the main saw to the required height depending on the thickness of the material being cut;
• Automatic detection of cut length;
• Quick tool change system;
• The programmable pusher is equipped with two groups of double grippers that move left and right, 1 standard push gripper, five two-finger pneumatic grippers.
• Servo adjustment for lifting/lowering the main saw.
• Smart LED Indicators.
• Sealed dust curtain behind the pressure beam.

Engineering advantages

Automatic rear loading allows you to load a package with a maximum size of 4000x2100 mm into the machine. Carriage for preparing slab material for subsequent cutting. Pushes the required amount of sheet material according to a given program. Operates independently of the main pusher.

Hydraulic lift table:

• Maximum load - 4000 kg.
• Platform with a driven roller table, fixed on cables.
• The maximum package size is 4000x2100 mm.
• The height of the stack of slab material without a pit / with a pit is 500/1200 mm.

Magnetic positioning to measure workpiece lift from rear loading, minimum workpiece thickness is 8 mm

Groove function. The lifting of the main saw is carried out by a servo drive, due to which a high accuracy of the cutting height is achieved.

2 independent pushers for cutting panels with different lengths, improve cutting efficiency at different sizes.

The next sheet is fed before the cutting of the current one is completed.

The machine can carry out simultaneous cutting of two blanks of different sizes .

Moves the two left grips parallel to the cutting line to prevent damage to the edges of parts and securely hold parts of different widths. The programmable pusher is equipped with two groups of double grippers that move left and right, 1 standard pusher gripper, five two-finger pneumatic grippers, which guarantees reliable fixation of the package of workpieces. The clamps reliably fix both a package of material up to 120 mm thick, and one sheet.

The machine bed was developed taking into account CAD programs, where the maximum allowable loads and requirements for the machine design were calculated and simulated. The welded frame is tempered to relieve all internal stresses in the material, then processing takes place on a five-axis metalworking machine, where all platforms and holes for mounting components and assemblies are milled.

An industrial computer based on Windows 10 ensures reliable operation of the CNC system.

Visualization of the order of cutting and a schematic map of the cut.

Ability to work with all popular programs for optimizing cutting charts and printing labels.

Longitudinal lever for switching on/off the cutting cycle.

The main working table is increased to 2200*800 mm.

Four air-cushioned worktables allow the operator to effortlessly position the stack of materials and remove finished parts from the machine.

The cutting area is equipped with tables with polished steel plates with an air cushion, which significantly facilitates work with small parts and protects them from damage.

Separate motors for main and scoring saw. Quick and easy blade change (patented by KDT).

Automatic adjustment of the height of the main saw and the departure of the pressure beam according to the height of the package being cut.

The force of the clamping beam is controlled by the system and corresponds to the thickness or height of the stack cutting. Equipped with an injury protection system.

The machine is equipped with an innovative saw carriage with Maglev technology with a linear motor. The saw carriage has high rigidity, high accuracy up to +-0.1 mm and high dust protection of the linear guide rail. Sawing is more accurate and stable, with low noise, low vibration and high speed. The maximum speed can reach 200 m/min.

Side stops precisely position narrow strips along the side ruler when cutting them into finished parts.

The special design of the grippers does not damage the material during its fixation and movement.

Flexible and durable cable channel provides stable and fast movement of the pusher with pneumatic grips.

Electrical components comply with CE standards.

The minimum workpiece size is 34x45 mm.

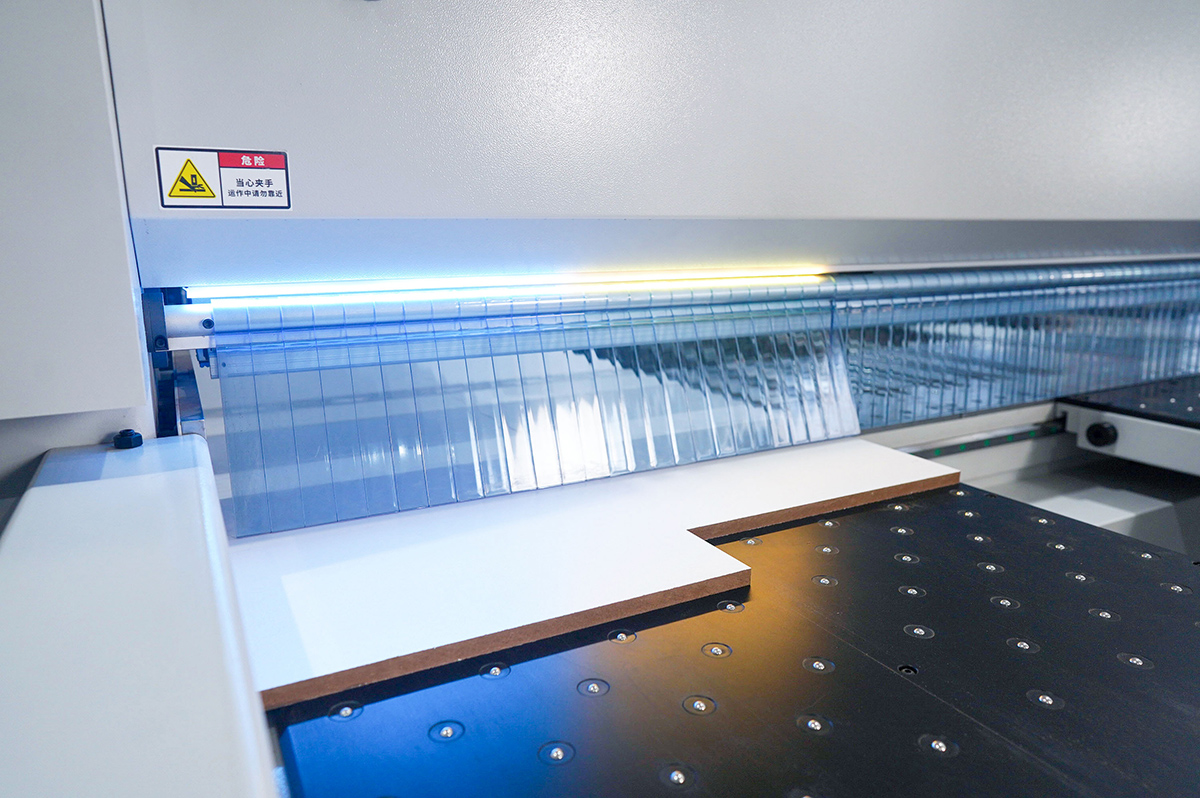

Smart color-guided cutting line provides intuitive operation at-a-glance workpiece status, reducing monitor checks and optimizing team workflow for safer, more efficient operations.

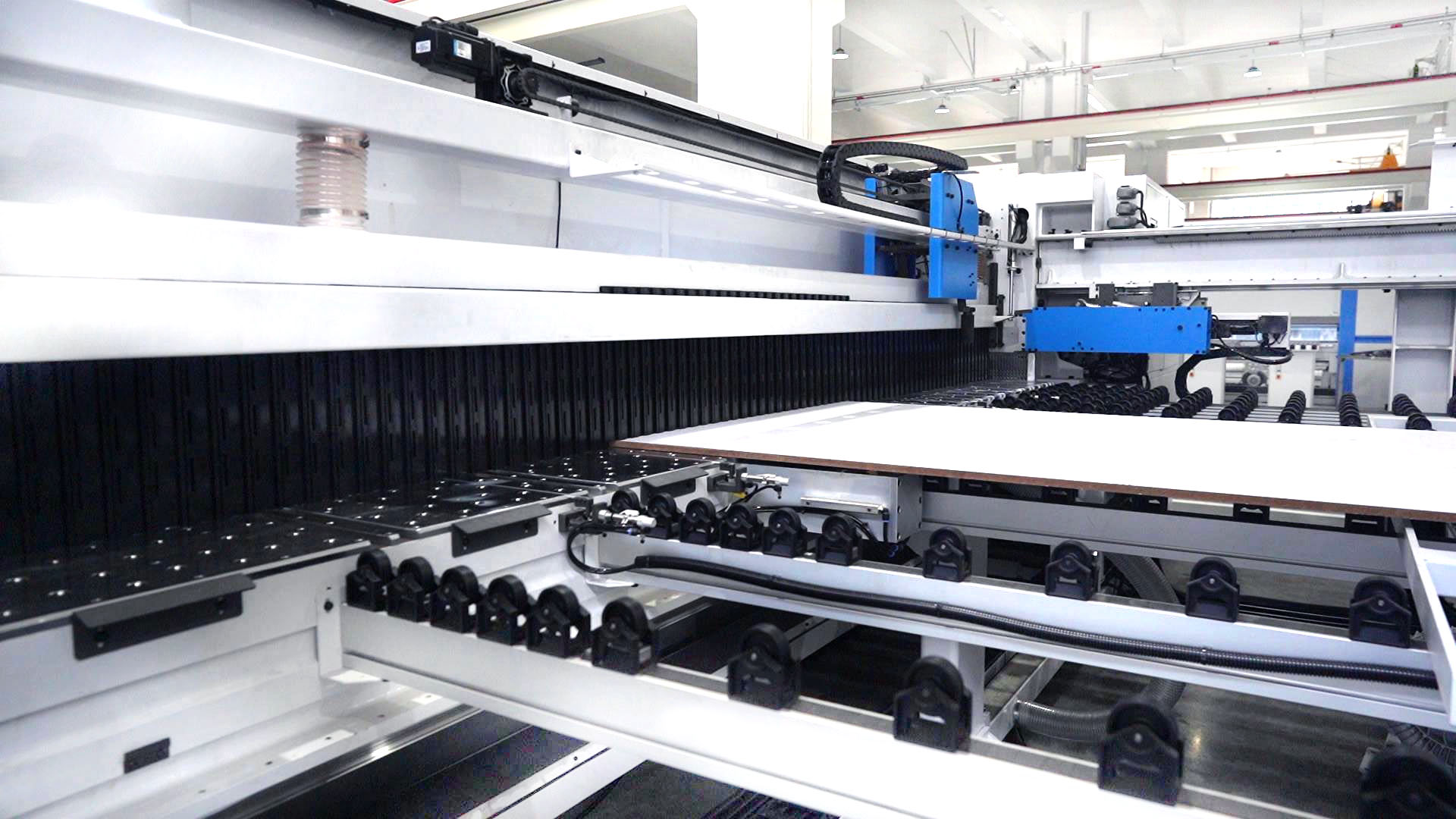

Sealed dust curtain behind the pressure beam effectively blocks sawdust, ensuring a clean and safe workspace.
