Auto gantry loader KHG-2209 for CNC beam saws
- Maximum panel size, mm 2800x2100
- Max. height of a stack of material sheets on a platform 1450
- Max. stack height when loading into the CNC beam saw 120
- Maximum load, kg 500
- Overall dimensions (LxWxH), mm 3260x2460x3750
- Weight, kg 2500
Note
Product specifications and appearance may change without prior notice.

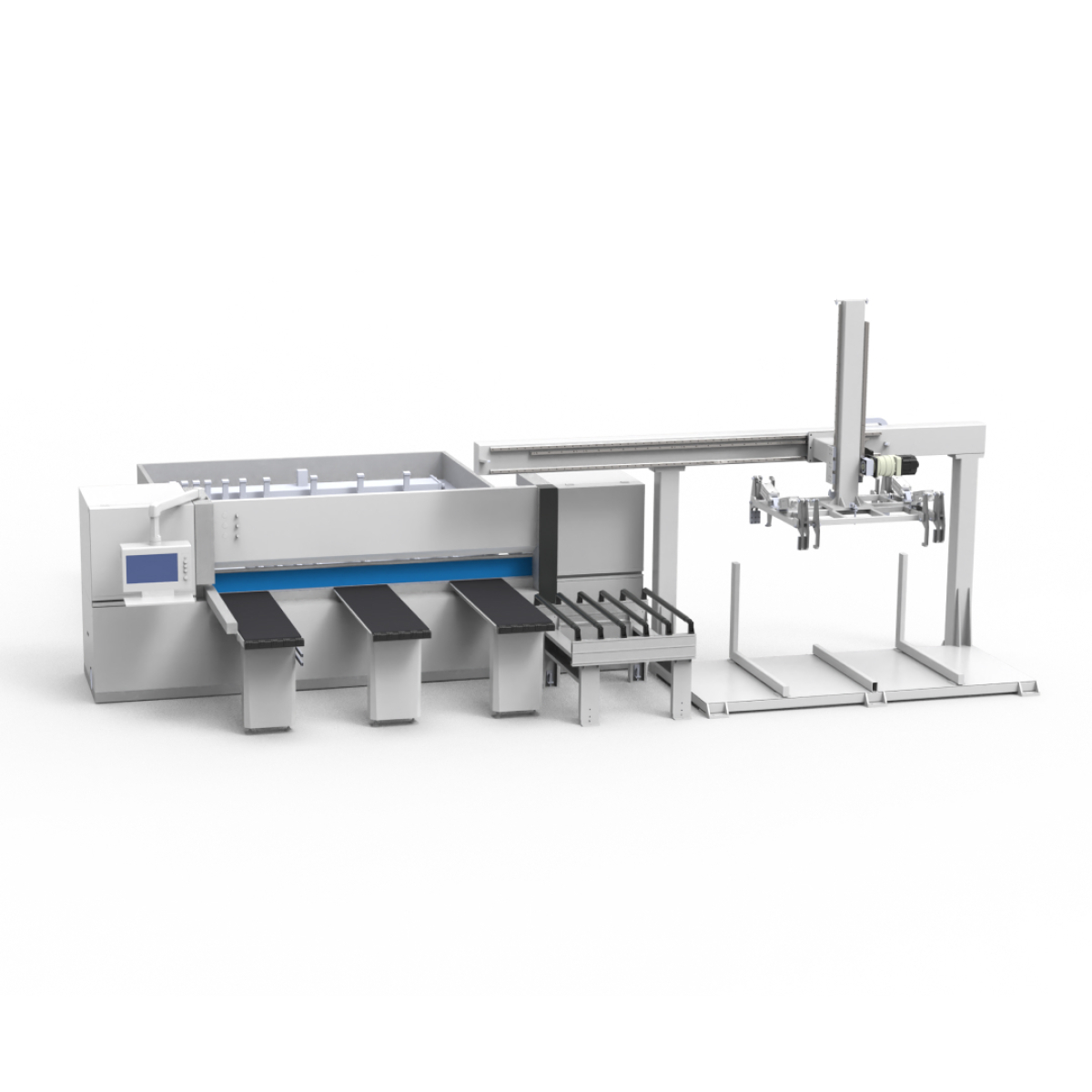

Auto gantry loader KDT KHG-2209 is designed for loading sheets of panel material up to 2800 x 2100 mm in size onto CNC beam saws. The gantry loader can be installed on the left or right side of the machine, depending on the machine model and production needs. Automatic sheet stack height detection is synchronized with the CNC beam saw software.
OPTION: Option with vacuum modules for loading one sheet of material.
| Specifications of automation equipment | |
| Maximum panel size, mm | 2800x2100 |
| Max. height of a stack of material sheets on a platform | 1450 |
| Max. stack height when loading into the CNC beam saw | 120 |
| Maximum load, kg | 500 |
| Overall dimensions (LxWxH), mm | 3260x2460x3750 |
| Weight, kg | 2500 |
